Запчасти Case IH 375 (F-51) - HYDRAULIC SYSTEM, SINGLE SPOOL CONTROL VALVE MOUNTING (07) - HYDRAULIC SYSTEM

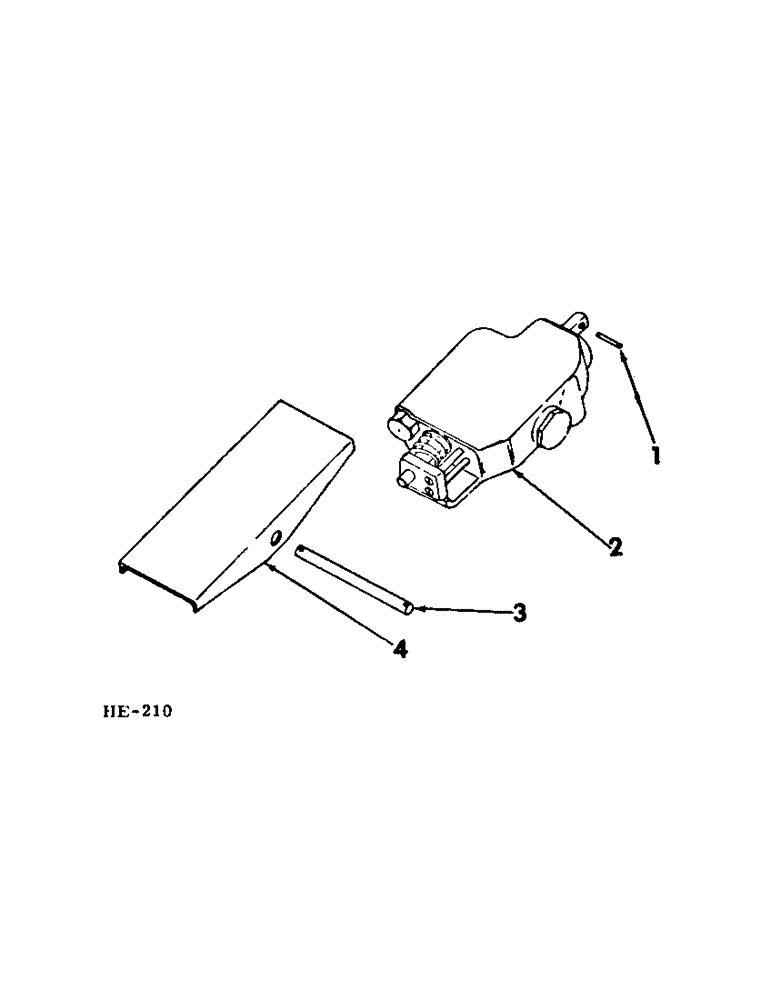

Схема запчастей Case IH 375 - (F-51) - HYDRAULIC SYSTEM, SINGLE SPOOL CONTROL VALVE MOUNTING (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

611987R1

PIN, hyd valve spool

1шт.

615002R1

WASHER

13/34 x 1/2 x 16 ga

2шт.

NLS

NO LONGER SERVICED

C-PIN, 1/16 x 1/2"

1шт.

2

595623R91

VALVE, single spool hyd (for component parts of this assembly refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

591976R1

PIN, valve control pedal pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

4

595625R11

PEDAL, hyd valve control

1шт.

Выбрано товаров: 10
