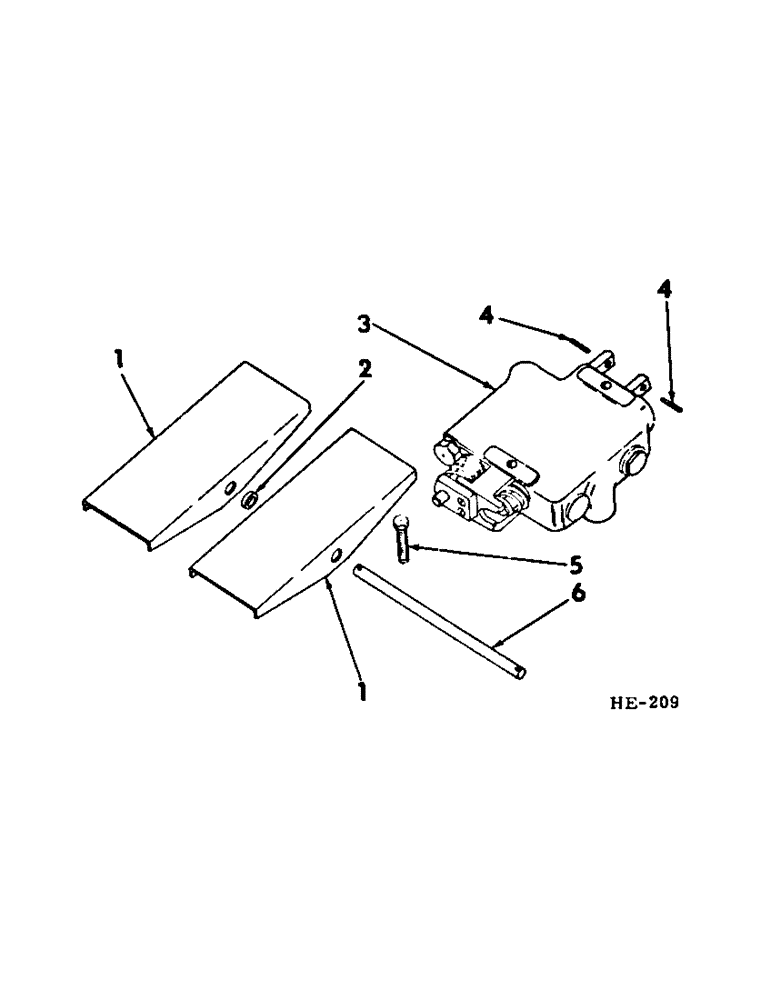

Запчасти Case IH 375 (F-51[A]) - HYDRAULIC SYSTEM, DOUBLE SPOOL CONTROL VALVE MOUNTING (07) - HYDRAULIC SYSTEM

1

591973R11

PEDAL, hyd valve control

2шт.

2

611463R1

SPACER, valve control pedal

1шт.

3

595624R91

VALVE, double spool control (for component parts of this assembly refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

180089

SPRING

5/16 x 2-1/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

611987R1

PIN, hyd valve spool

2шт.

615002R1

WASHER

13/34 x 1/2 x 16 ga

4шт.

103361

PIN, SPLIT (COTTER)

C-PIN, 1/16 x 1/2"

2шт.

5

13869A

BOLT, 3/8 x 2" sq-hd pedal stop

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

591976R1

PIN, valve control pedal pivot

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
