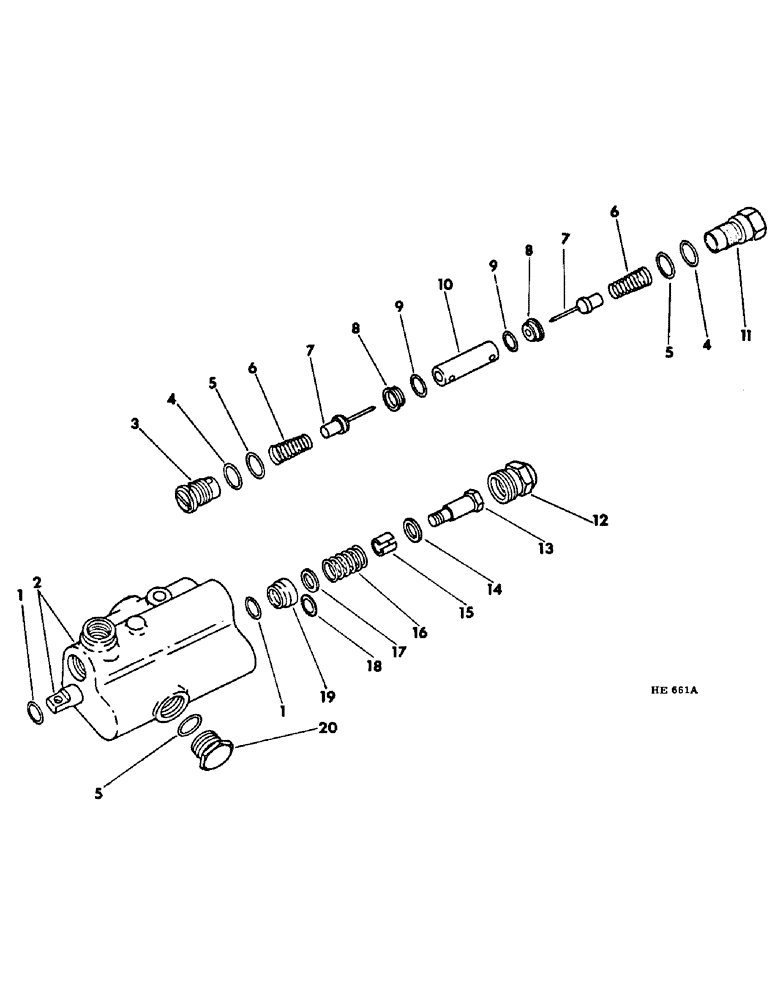

Запчасти Case IH 375 (F-44) - HYDRAULIC SYSTEM, VARIATOR HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

596409R92

VALVE

variator hyd control (composed of all parts listed below, unless otherwise noted)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4" x 1-3/4"

2шт.

Not part of valve assembly.

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

Not part of valve assembly.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Not part of pump assembly.

1шт.

1

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

3/32" x 9/16" I.D.

2шт.

2

HOUSING & SPOOL, control valve (NSS) (for service order 1 - 596409R92, VALVE)

1шт.

3

674506R91

PLUG

seat return

1шт.

4

673644R1

WASHER

WASHER, 3/32" x 5/8" I.D. back-up

2шт.

5

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

3/32" x 5/8" I.D.

3шт.

6

599861R1

SPRING, control valve poppet

2шт.

7

827334C1

VALVE POPPET

POPPET, hyd control valve

2шт.

8

674505R91

SEAT

control valve

2шт.

9

370920R1

O-RING,1/2" ID

1/16" x 1/2" I.D.

2шт.

10

588352R1

PLUNGER

control valve

1шт.

11

674507R91

PLUG

control valve plunger

1шт.

12

674493R1

CAP

control valve spool

1шт.

13

674491R1

SCREW

control valve spool

1шт.

14

673628R1

WASHER

centering spg

1шт.

15

674492R1

SPACER

control valve spool

1шт.

16

674490R1

SPRING

spool centering

1шт.

17

824545C1

WASHER

spool spg

1шт.

18

202649C1

SPRING WASHER

spool spg

1шт.

19

674775R1

BUSHING

control valve spool

1шт.

20

598424R1

PLUG, control valve port

1шт.

825236C92

KIT

valve seal repair service, composed of, (NSS) (1) O-RING, (NSS) (1) O-RING, (2) O-RING 370920R1, (5) O-RING 350429R1, (4) O-RING 252739R1, (2) POPPET 827334C1, (4) WASHER 673644R1

1шт.
