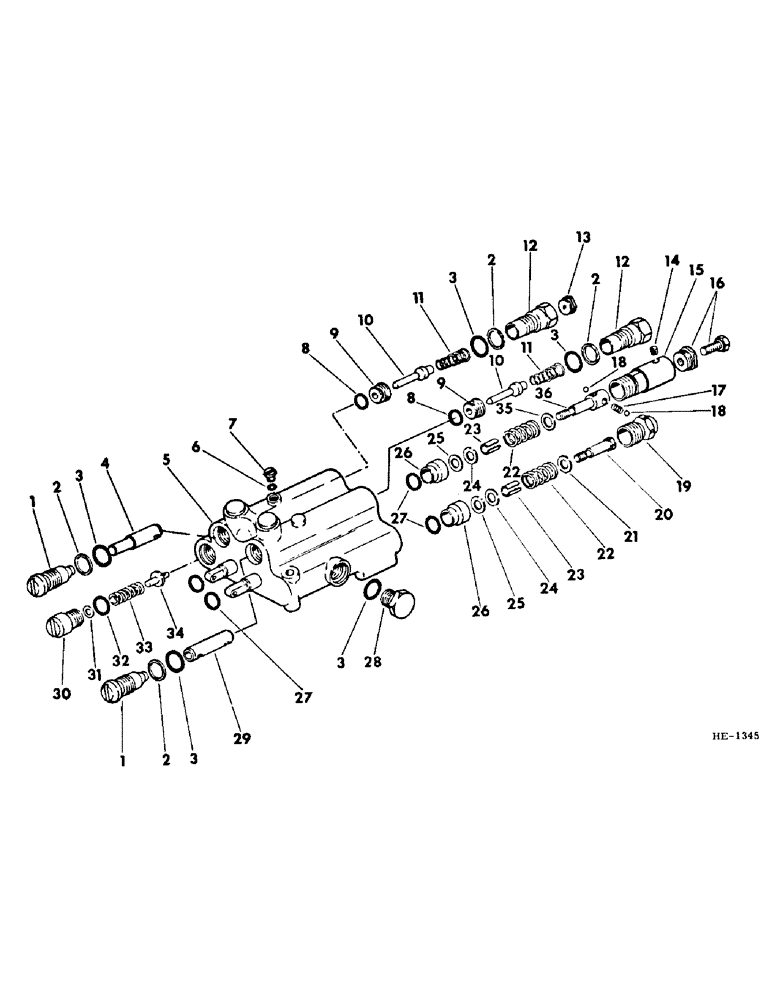

Запчасти Case IH 375 (F-42) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

825326C92

VALVE

hyd control (composed of all parts listed below)

1шт.

1

674515R91

PLUG

lockout (includes 1 - O-RING & 1 - WASHER)

2шт.

2

WASHER, plug back-up (NSS) (for service order 1 - 825236C92, KIT)

4шт.

3

O-RING, 3/32 x 5/8" I.D. plug (NSS) (for service order 1 - 825236C92, KIT)

5шт.

4

825235C1

PLUNGER, unloading

1шт.

5

HOUSING & SPOOL, hyd control valve (NSS) (for service order 1 - 825326C92, VALVE)

1шт.

6

O-RING, 1/16 x 7/32" I.D. PLUG (NSS) (for service order 1 - 825236C92, KIT)

1шт.

7

825226C91

PLUG

hyd control (includes 1 - O-RING)

1шт.

8

O-RING, 1/16 x 1/2" I.D. seat lockout (NSS) (for service order 1 - 825236C92, KIT)

2шт.

9

674505R91

SEAT

lockout (includes 1 - O-RING)

2шт.

10

827334C1

VALVE POPPET

POPPET, valve port adaptor

2шт.

11

674509R1

SPRING

lockout

2шт.

12

674507R91

PLUG

port adaptor (includes 1 - O-RING & 1 - WASHER)

2шт.

13

824544C1

PLATE

orifice (NOT included as part of the VALE ASSEMBLY)

1шт.

14

824543C1

PLUG

detent cap filter

1шт.

15

824541C1

CAP

detent

1шт.

16

824542C1

PLUG

detent cap adjusting

1шт.

180021

SPRING

1/4 x 7/8"

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

1шт.

17

201737C1

SPRING

ball detent

2шт.

18

16005R1

BALL

5/32" chrome detent

4шт.

19

674493R91

CAP

valve spool

1шт.

20

674491R1

SCREW

spool

1шт.

21

673628R1

WASHER

spool screw spg

1шт.

22

674490R1

SPRING

spool centering

2шт.

23

674492R1

SPACER

spool

2шт.

24

824545C1

WASHER

spool spg

2шт.

25

202649C1

SPRING WASHER

spool spg

2шт.

26

674775R1

BUSHING

spool

2шт.

27

O-RING, 3/32 x 1/2" I.D. spool (NSS) (for service order 1 - 825236C92, KIT)

4шт.

28

674510R91

PLUG

power beyond (includes 1 - O-RING)

1шт.

29

588352R1

PLUNGER

lockout

1шт.

30

20210C91

PLUG, slt relief valve (includes 1 - O-RING)

1шт.

31

674504R1

WASHER

SHIM, .015" relief valve

1шт.

31

394655R1

WASHER

SHIM, .010" relief valve

1шт.

31

673647R1

WASHER

SHIM, .035" relief valve

1шт.

32

O-RING, 3/32 x 9/16" I.D. relief valve plug (NSS) (for service 1 - 825236C92, KIT)

1шт.

33

673751R1

SPRING

relief valve

1шт.

34

674501R1

VALVE POPPET

POPPET, relief valve

1шт.

35

674502R1

WASHER

detent screw spg

1шт.

36

201845C1

SCREW

spool detent

1шт.

825236C92

KIT

hyd control valve seal service, composed of, (NSS) (1) O-RING, (NSS) (1) O-RING, (NSS) (2) O-RING, (NSS) (4) O-RING, (NSS) (5) O-RING, (2) POPPET 827334C1, (NSS) (4) WASHER

1шт.
