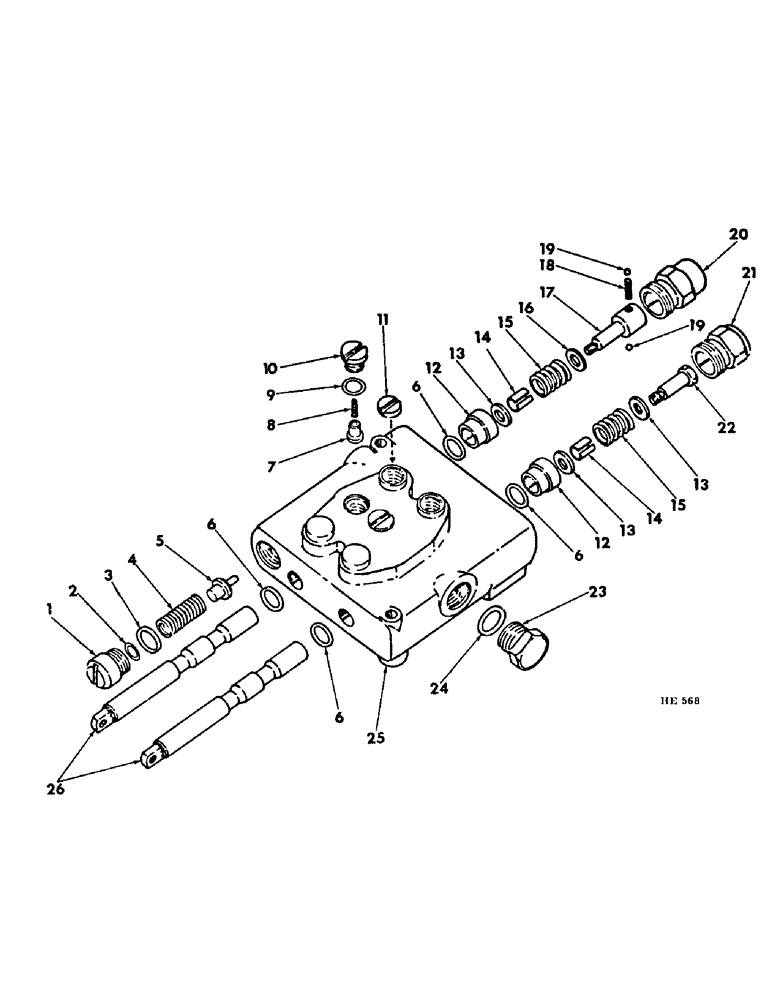

Запчасти Case IH 375 (F-38) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, DOUBLE SPOOL TYPE (07) - HYDRAULIC SYSTEM

596408R91

VALVE

double spool hyd control (composed of all parts listed below) (for service of the complete valve, refer to NOTE for the applicable machine.

1шт.

1

598423R1

PLUG

valve relief

1шт.

2

674504R1

WASHER

SHIM, .015" relief plug

1шт.

2

394655R1

WASHER

SHIM, .010" relief plug

1шт.

2

673647R1

WASHER

SHIM, .035" relief plug

1шт.

3

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

valve relief plug

1шт.

4

673751R1

SPRING

poppet

1шт.

5

674501R1

VALVE POPPET

POPPET, relief valve

1шт.

6

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

spool

4шт.

7

673622R1

PLUNGER

lift check

2шт.

8

673625R1

SPRING

lift check

2шт.

9

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

lift check plug

2шт.

10

673623R1

PLUG, lift check

2шт.

11

596300R1

PLATE

orifice

1шт.

12

674775R1

BUSHING

spool

2шт.

13

674495R1

WASHER, spool spg

3шт.

14

674492R1

SPACER

spool

2шт.

15

674490R1

SPRING

spool centre

2шт.

16

674502R1

WASHER

detent screw

1шт.

17

674498R1

SCREW, detent

1шт.

18

674500R1

SPRING

detent

1шт.

19

16005R1

BALL

detent spg steel

2шт.

20

674499R91

CAP, detent

1шт.

21

674493R91

CAP

spool

1шт.

22

674491R1

SCREW

spool

1шт.

23

598424R1

PLUG, valve body

1шт.

24

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

valve body plug

1шт.

25

HOUSING, hyd valve body (NSS) (service order 1 - 596408R91, VALVE)

1шт.

26

SPOOL, hyd valve (NSS) (for service order 1 - 596408R91, VALVE)

1шт.

598425R91

PACKAGE, valve control seal repair, composed of, (2) O-RING 252738R1, (1) O-RING 352221R1, (4) O-RING 252739R1, (1) O-RING 350429R1

1шт.
