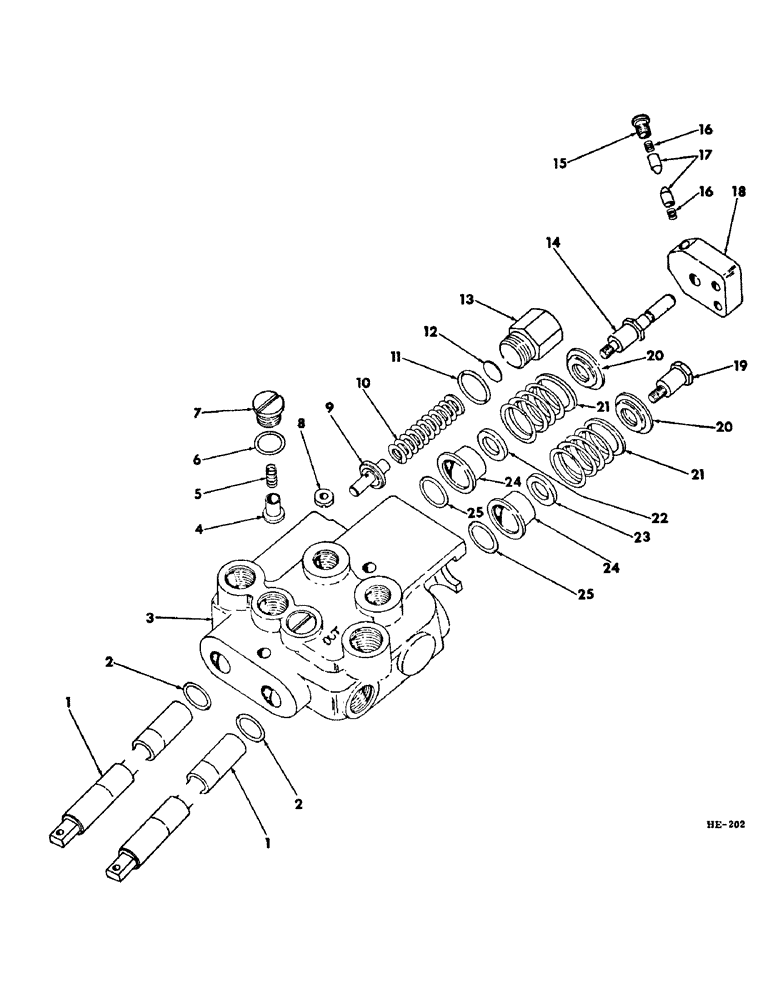

Запчасти Case IH 375 (F-36) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, DOUBLE SPOOL TYPE (07) - HYDRAULIC SYSTEM

595624R91

VALVE, double spool hyd control (composed of all parts listed below)

1шт.

1

SPOOL, control valve (NSS) (for service order 1 - 595624R91, VALVE)

2шт.

2

592674R1

O-RING,0.612" ID x 0.006" Width

O-RING, valve body

2шт.

3

HOUSING, hyd control valve (NSS) (for service order 1 - 595624R91, VALVE)

1шт.

4

387436R1

TAPPET

PLUNGER, valve lift check

2шт.

5

387437R1

SPRING

plunger lift check

2шт.

6

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

lift check plunger plug

2шт.

7

673634R1

PLUG, lift check

2шт.

8

596300R1

PLATE

orifice

1шт.

9

596294R1

POPPET, control valve

1шт.

10

592675R1

SPRING, relief valve

1шт.

11

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

relief valve cap

1шт.

12

613599R1

SHIM, relief valve cap

1шт.

13

613605R1

CAP, relief valve

1шт.

14

596297R1

SCREW, detent

1шт.

15

596295R1

PLUG

detent

1шт.

16

596298R1

SPRING, detent pawl

2шт.

17

596292R1

PAWL

detent

2шт.

18

590296R1

BLOCK, detent

1шт.

451195

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

1/4 x 1" slt-pan-hd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

596327R1

SCREW, valve spool

1шт.

20

613602R1

WASHER

valve spool shallow

2шт.

21

387443R1

SPRING, valve spool centre

2шт.

22

596299R1

WASHER

retainer

1шт.

23

387439R1

WASHER

spool

1шт.

24

387435R1

WASHER

valve spool deep

2шт.

25

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

valve control body

2шт.

596302R91

PACKAGE, seal repair kit, composed of, (2) O-RING 252707R1, (2) O-RING 252739R1, (2) O-RING 350429R1, (2) O-RING 592674R1

1шт.
