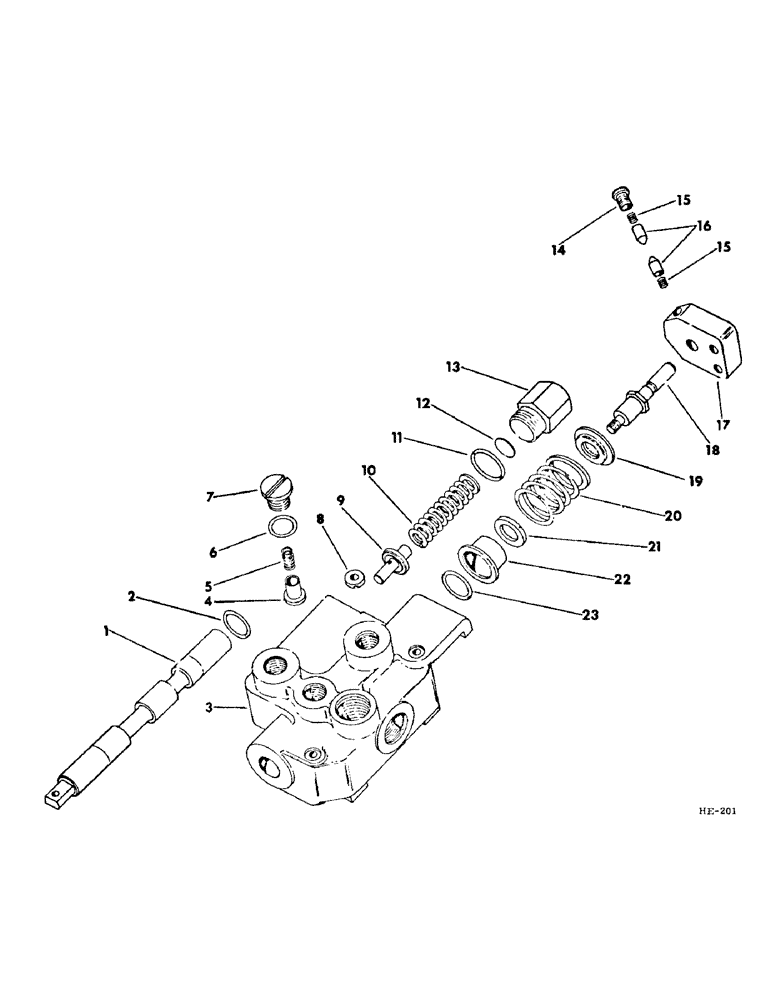

Запчасти Case IH 375 (F-34) - HYDRAULIC SYSTEM, HYDRAULIC CONTROL VALVE, SINGLE SPOOL TYPE (07) - HYDRAULIC SYSTEM

595623R91

VALVE, single spool hyd control (composed of all parts listed below)

1шт.

1

SPOOL, hyd control valve (NSS) (for service order 1 - 595623R91, VALVE)

1шт.

2

592674R1

O-RING,0.612" ID x 0.006" Width

O-RING, valve body

1шт.

3

HOUSING, hyd control valve (NSS) (for service order 1 - 595623R91, VALVE)

1шт.

4

387436R1

TAPPET

PLUNGER, valve lift check

1шт.

5

387437R1

SPRING

plunger lift check

1шт.

6

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

lift check plug

1шт.

7

673634R1

PLUG, lift check

1шт.

8

596300R1

PLATE

orifice

1шт.

9

596294R1

POPPET, relief valve

1шт.

10

592675R1

SPRING, relief valve

1шт.

11

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

relief valve cap

1шт.

12

613599R1

SHIM, relief valve cap

1шт.

13

613605R1

CAP, relief valve

1шт.

14

596295R1

PLUG

vent detent

1шт.

15

596298R1

SPRING, detent pawl

2шт.

16

596292R1

PAWL

detent

2шт.

17

596296R1

BLOCK

detent

1шт.

491195

SCREW, 1/4 x 1" slt-pan-hd

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

18

596297R1

SCREW, valve detent

1шт.

19

613602R1

WASHER

valve spool shallow

1шт.

20

387443R1

SPRING, valve spool centre

1шт.

21

596299R1

WASHER

retainer

1шт.

22

387435R1

WASHER

valve spool dep

1шт.

23

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

valve body

1шт.

596301R91

PACKAGE, seal repair kit, composed of, (2) O-RING 252707R1, (1) O-RING 252739R1, (1) O-RING 350429R1, (1) O-RING 592674R1

1шт.
