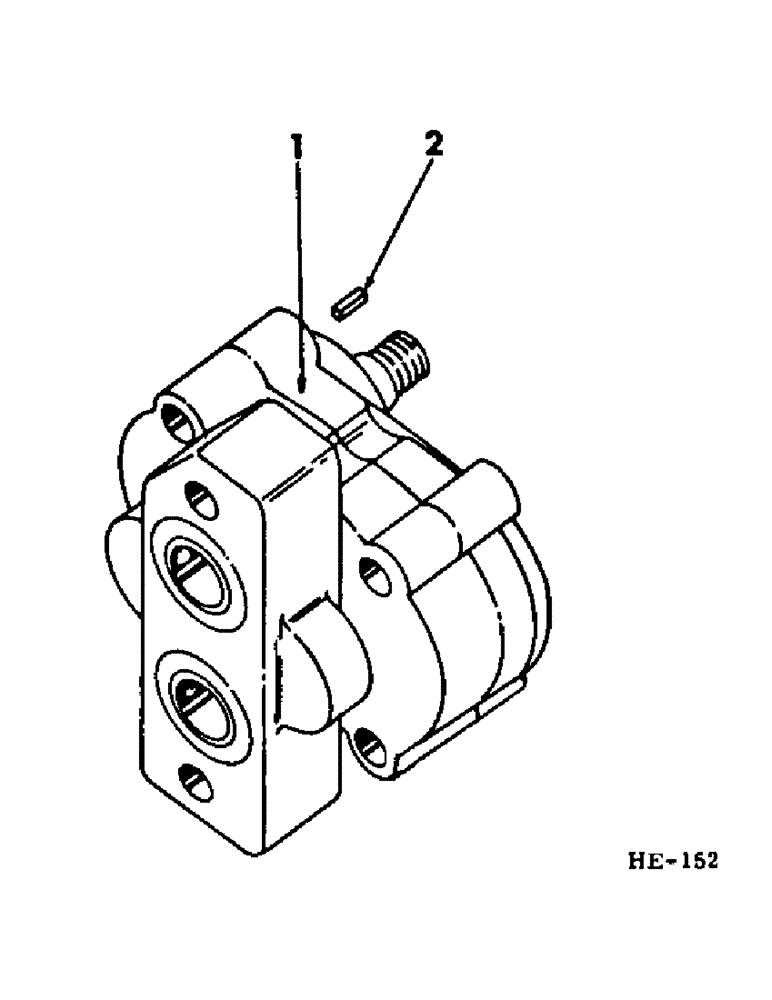

Запчасти Case IH 375 (F-32) - HYDRAULIC SYSTEM, HYDRAULIC PUMP, CESSNA (07) - HYDRAULIC SYSTEM

1

377033R94

PUMP, HYDRAULIC

PUMP, 4-1/2 gpm hyd (Cessna) (composed of all parts listed below, unless otherwise noted) (opt to use 1 - 397130R91, PUMP)

1шт.

1

1949254C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - for N.A. Only

1шт.

1

1949255C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - for N.A. Only

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

2шт.

Not part of pump assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of pump assembly.

1шт.

2

384507R1

KEY

1/8 x 1/8 x 19/32" straight

1шт.

381002R93

PUMP

PACKAGE, hyd pump o-ring & seal service, composed of, (NSS) (1) DIAPHRAGM, (NSS) (1) GASKET, (NSS) (1) GASKET, (NSS) (1) OIL SEAL, (NSS) (1) O-RING, (NSS) (1) PLATE, (NSS) (1) SEAL

1шт.
