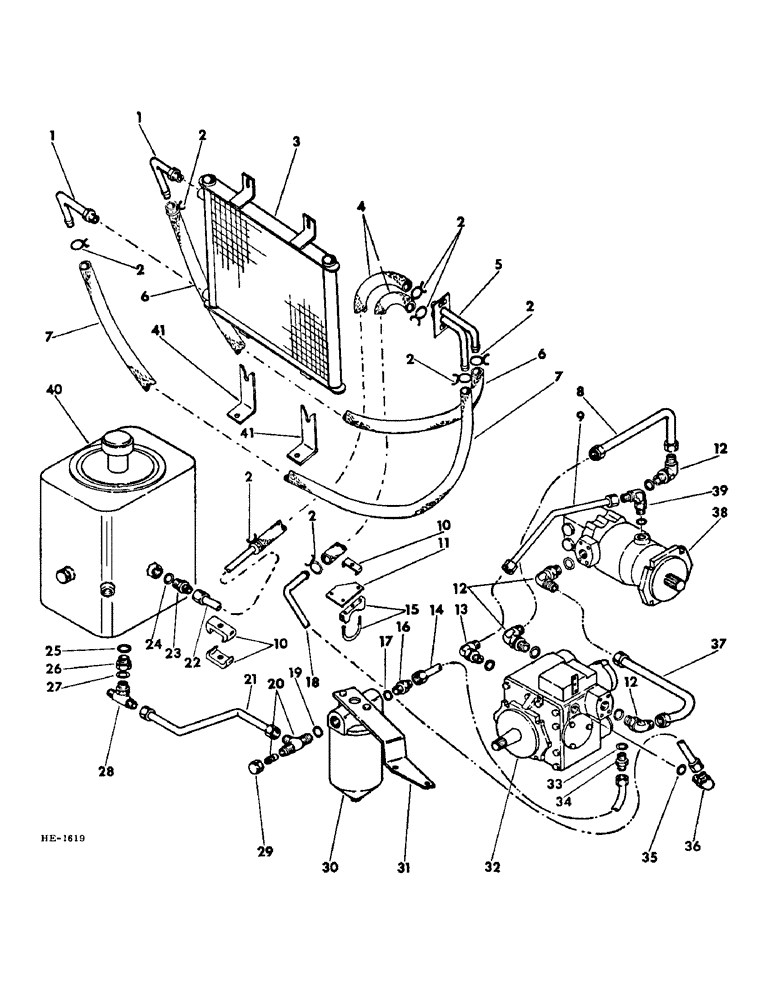

Запчасти Case IH 375 (F-30) - HYDRAULIC SYSTEM, HYDROSTATIC HYDRAULIC DRIVE CIRCUIT (07) - HYDRAULIC SYSTEM

1

823745C1

ELBOW, oil cooler inlet & outlet

2шт.

2

628091R1

CLAMP, inlet & outlet hose

8шт.

3

823756C1

COLLER, hyd oil

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

676256R1

HOSE, hyd oil cooler inlet & outlet

2шт.

5

827048C1

MANIFOLD, cooler

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

636342R1

HOSE, cooler outlet to oil reservoir tube

1шт.

7

827117C1

HOSE, oil cooler inlet to drive pump tube

1шт.

8

823671C11

TUBE, drive pump pressure port to hydrostatic drive motor reverse travel 1" OD, 9.17, 4.89" Length

1шт.

9

823673C11

TUBE, hydrostatic drive motor to drive pump drain

1шт.

10

379045R1

CLAMP

cooler inlet & outlet tube

3шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-3/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

827116C1

BAR, inlet & outlet tube clamping

1шт.

12

595408R1

90 ELBOW

90 degree hydrostatic pump & motor pressure ports

4шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

pressure port elbow

4шт.

13

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree hydrostatic drive pump drain port

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

drive pump elbow

1шт.

14

823669C11

TUBE, oil filter outlet to drive pump inlet

1шт.

15

170572R92

CLAMP, fuel tank neck (includes 2 - 120368, NUTS & 2 - 120214, WASHERS)

1шт.

120368

NUT,5/16"-24, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, hyd oil filter outlet

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

filter outlet union

1шт.

17

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

oil filter outlet union

1шт.

18

827102C1

TUBE, hydrostatic drive pump outlet to oil cooler hose

1шт.

19

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

shut-off valve

1шт.

20

826919C2

VALVE, oil filter shut-off (includes 1 - 9403374, CAP)

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

shut-off valve

1шт.

21

827047C1

TUBE, oil reservoir to oil filter suction 0.75" OD, 15.5, 5.3" Length

1шт.

22

827101C1

TUBE, oil cooler outlet hose to oil reservoir return

1шт.

23

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, hyd oil reservoir for return tube

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

return tube union

1шт.

24

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

return tube union

1шт.

25

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

reservoir suction line connector

1шт.

26

598060R1

CONNECTOR, reservoir suction line reducer

1шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

reducer connector

1шт.

27

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir suction line tee

1шт.

28

9411120

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Br

reservoir suction line connector

1шт.

29

9403374

CAP,37 Degree, 1 1/16"-12

filter shut-off valve

1шт.

30

156571C91

FILTER CARTRIDGE

FILTER, hyd oil (for component parts of this assembly refer to "HYDRAULIC OIL FILTER" in section "F" of this parts catalog)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

31

823684C1

SUPPORT, hyd oil filter

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

32

67805C91

PUMP

hydrostatic drive (for component parts of this assembly refer to "HYDROSTATIC DRIVE PUMP" in section "F" of this parts catalog)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

33

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pump reducing union

1шт.

34

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

UNION, hydrostatic drive pump inlet reducing

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducing union

1шт.

35

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

drive pump elbow

1шт.

36

850422R91

ELBOW, 90 degree hydrostatic drive pump outlet port reducing

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducing elbow

1шт.

37

823672C11

TUBE, drive pump pressure port to hydrostatic drive motor forward travel 1" OD, 11.58, 9.05" Length

1шт.

38

67807C91

MOTOR, hydrostatic drive (for component parts of this assembly refer to "HYDROSTATIC DRIVE MOTOR" in section "F" of this parts catalog)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

39

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree, hydrostatic drive motor drain port

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

drain port elbow

1шт.

40

160993C91

RESERVOIR, hyd oil (for component parts of this assembly refer to "HYDRAULIC OIL RESERVOIR AND MOUNTING" in section "F" of this parts catalog)

1шт.

41

827002C1

SUPPORT, oil cooler lower

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

126032

WING NUT,3/8"-16

NUT, 3/8" wing

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
