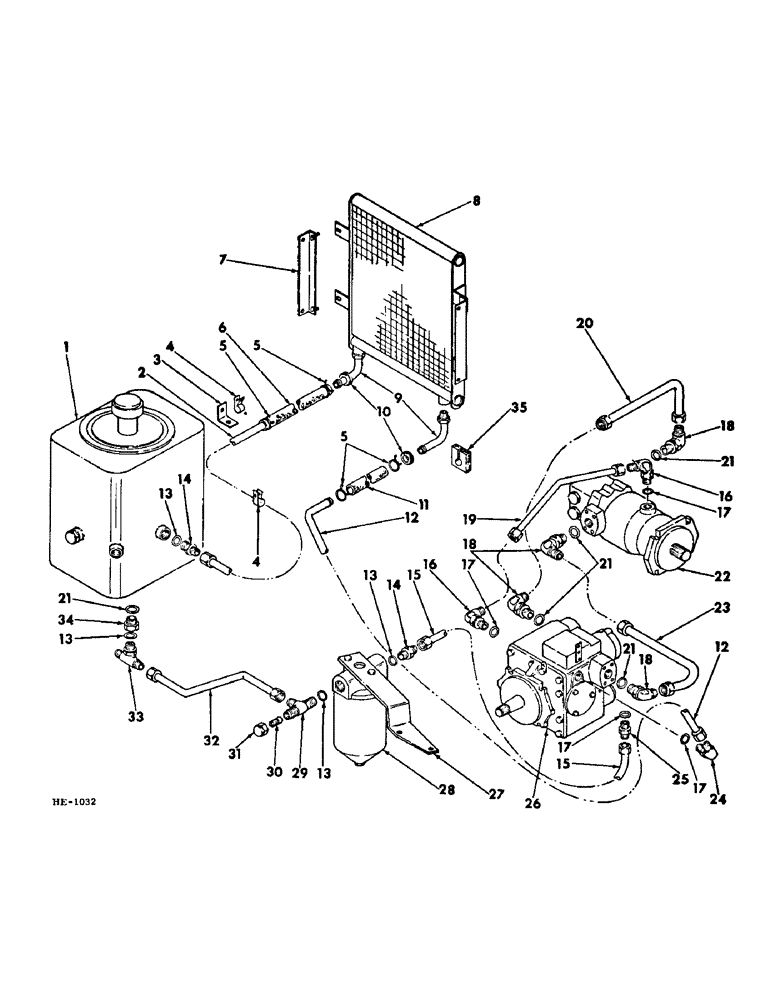

Запчасти Case IH 375 (F-28) - HYDRAULIC SYSTEM, HYDROSTATIC HYDRAULIC DRIVE CIRCUIT (07) - HYDRAULIC SYSTEM

1

160993C91

RESERVOIR, hyd oil (for component parts of this assembly refer to "HYDRAULIC OIL RESEVOIR AND MOUNTING" in section "F" of this parts catalog)

1шт.

2

823720C11

TUBE, oil cooler outlet to oil reservoir

1шт.

3

823660C1

ANGLE

oil cooler to oil reservoir tube (375 Windrower when equipped w/gasoline engine)

1шт.

4

825525C1

CLAMP, hyd tube

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

628091R1

CLAMP, oil cooler hose

3шт.

6

636708R1

HOSE, oil cooler outlet to oil reservoir return

1шт.

7

823749C1

ANGLE, oil cooler support

2шт.

8

823756C1

COOLER, hyd oil

1шт.

134238R1

WASHER

.344 x 1.000 x .054

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

9

823745C1

ELBOW, oil cooler inlet & outlet

2шт.

10

GROMMET, 1" diagonal rubber (for service order 1 - 825279C1, SEAL)

2шт.

11

636373R1

HOSE, drive pump to oil cooler inlet

1шт.

12

823719C11

TUBE, drive pump to oil cooler inlet return

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

oil filter inlet & tee

3шт.

14

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

UNION, oil filter & oil resevoir

2шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

filter & reservoir union

2шт.

15

823669C11

TUBE, oil filter to pump inlet suction

1шт.

16

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree drive motor & drive pump

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

drain port elbow

2шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd elbow

4шт.

18

595408R1

90 ELBOW

90 degree pump pressure ports

4шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

pressure elbow

4шт.

19

823673C11

TUBE, drive pump to drive motor drain

1шт.

20

823671C11

TUBE, drive pump to drive motor reverse travel pressure 1" OD, 9.17, 4.89" Length

1шт.

21

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

elbow & connector

5шт.

22

67807C91

MOTOR, hydrostatic drive (for component parts of this assembly refer to "HYDROSTATIC DRIVE MOTOR" in section "F" of this parts catalog)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

23

823672C11

TUBE, drive pump to drive motor forward travel pressure 1" OD, 11.58, 9.05" Length

1шт.

24

850422C91

ELBOW, 90 degree outlet reducing

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducing elbow

1шт.

25

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

UNION, drive pump inlet reducing

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

reducing union

1шт.

26

67805C91

PUMP

hydrostatic drive (for component parts of this assembly refer to "HYDROSTATIC DRIVE PUMP" in section "F" of this parts catalog)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

27

823684C1

SUPPORT, hyd oil filter

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

28

156571C91

FILTER CARTRIDGE

FILTER, hyd oil (for component parts of this assembly refer to "HYDRAULIC OIL FILTER" in section "F" of this parts catalog)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

29

597903R1

TEE, oil filter inlet (for service order 1 - 826919C2, VALVE)

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

filter inlet tee

1шт.

29

826919C2

VALVE, oil filter shut-off (includes 1 - 9403374, CAP) (for use on 375 Windrower built w/machine serial No. 982 & since)

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

shut-off valve

1шт.

30

597904R1

VALVE, filter inlet tee needle (for service order 1 - 826919C2, VALVE)

1шт.

31

9403374

CAP,37 Degree, 1 1/16"-12

inlet tee shut-off valve

1шт.

32

823718C11

TUBE, oil reservoir to oil filter suction 0.75" OD, 15.5, 6.56" Length

1шт.

33

9411120

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Br

oil reservoir suction tube

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

suction tee

1шт.

34

598060R1

CONNECTOR, reservoir suction reducing

1шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

reducing connector

1шт.

35

825279C1

SEAL, oil cooler (for use on 375 Windrower built w/machine serial No. 702 & since)

1шт.
