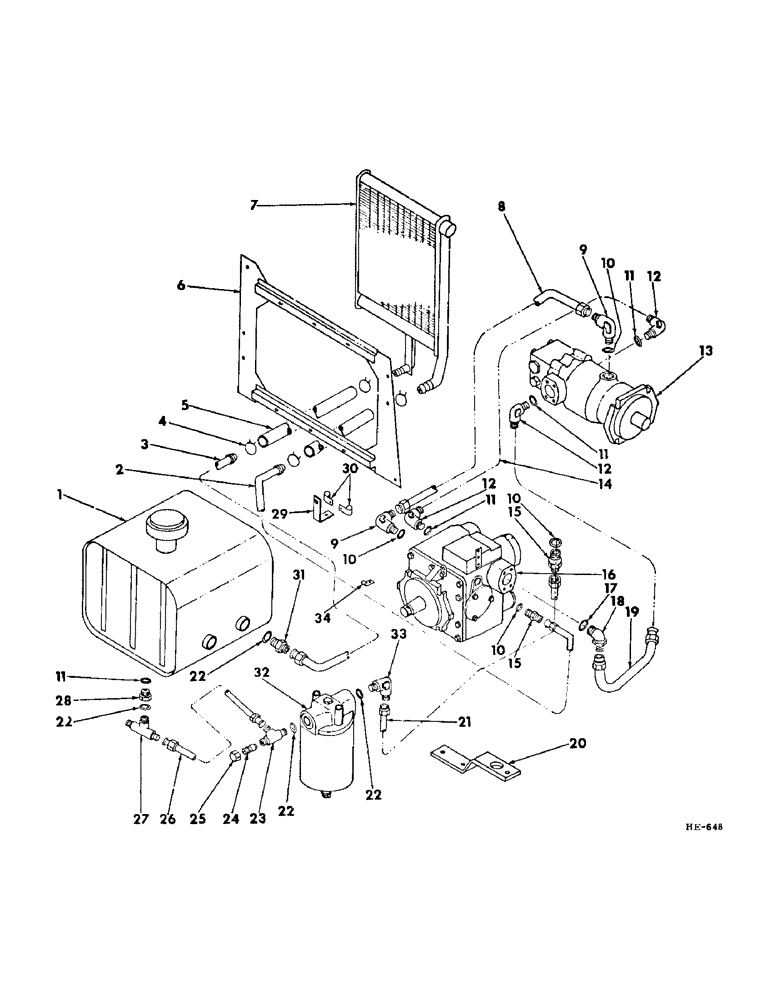

Запчасти Case IH 375 (F-26) - HYDRAULIC SYSTEM, HYDROSTATIC HYDRAULIC DRIVE CIRCUIT (07) - HYDRAULIC SYSTEM

1

595382R91

RESERVOIR, hyd oil (for component parts of this assembly refer to "HYDRAULIC OIL RESERVOIR AND MOUNTING" in section "F" of this parts catalog)

1шт.

2

597907R1

TUBE, hydrostatic drive pump to oil cooler

1шт.

3

597911R2

TUBE, oil cooler to oil reservoir

1шт.

4

628091R1

CLAMP, oil cooler hoses

4шт.

5

597929R1

HOSE, drive pump to oil cooler & reservoir

2шт.

6

597908R1

SUPPORT, hyd oil cooler

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

598100R1

COOLER, hyd oil

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

6шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

8

597906R1

TUBE, hydrostatic drive motor to drive pump drain 0.625" OD, 12.7, 8.2" Length

1шт.

9

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

90 degree drive pump drain tube

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

drain tube elbow

2шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

elbow & connector

4шт.

11

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

drive pump 90 degree elbow

3шт.

12

595408R1

90 ELBOW

90 degree pressure tube

3шт.

13

405112R92

MOTOR

hydrostatic drive (for service on 375 Windrower built w/machine serial No. 201 to machine serial No. 701 order 1 - 67810C91, MOTOR) (for component parts of this assembly refer to "HYDROSTATIC DRIVE MOTOR" in section "F" of this parts catalog)

1шт.

13

67810C91

REMAN-INJECTION PUMP

MOTOR, hydrostatic drive (RENEWED) (for component parts of this assembly refer to "HYDROSTATIC DRIVE MOTOR" in section "F" of this parts catalog)

1шт.

14

595409R11

TUBE, drive motor to drive pump reverse pressure 1" OD, 10.75, 6.42" Length

1шт.

15

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, drive pump to oil filter tube

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

pump connector

2шт.

16

401328R95

PUMP

1шт.

PUMP, hydrostatic drive (for service on 375 Windrower built w/machine serial No. 201 to machine serial No. 208, order 1 - 67805C91, PUMP; 1 - 596416R1, PULLEY & 1 - 645236R1, NUT) (for component parts of this assembly refer to "HYDROSTATIC DRIVE PUMP" in section "F" of this parts catalog)

1шт.

16

67805C91

PUMP

hydrostatic drive (for use on 375 Windrower built w/machine serial No. 208 & since) (for component parts of this assembly refer to "HYDROSTATIC DRIVE PUMP" in section "F" of this parts catalog)

1шт.

17

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

drive motor elbow

1шт.

18

595406R1

ELBOW

45 degree drive pump pressure tube

1шт.

19

595407R11

TUBE, drive pump to drive motor pressure

1шт.

20

597902R1

SUPPORT, oil filter mounting

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

597905R1

TUBE, oil filter to drive pump

1шт.

22

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

elbow & tee

4шт.

23

597903R1

TEE, oil filter shut-off valve (for service order 1 - 826919C2, VALVE)

1шт.

23

826919C2

VALVE, oil filter shut-off (includes 1 - 9403374, CAP)

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

shut-off valve

1шт.

24

597904R1

VALVE, oil filter shut-off needle (for service order 1 - 826919C2, VALVE)

1шт.

25

9403374

CAP,37 Degree, 1 1/16"-12

filter shut-off valve

1шт.

26

597901R1

TUBE, oil reservoir to oil filter 0.75" OD, 27.4, 3.86" Length

1шт.

27

9411120

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Br

oil reservoir suction tube

1шт.

28

598060R1

REDUCER, oil reservoir tee

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reducer tee

1шт.

29

597930R1

ANGLE, oil cooler hose clamp support

1шт.

30

125929

CLIP

CLAMP, oil cooler hose

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, reservoir cooler tube

1шт.

32

156571C91

FILTER CARTRIDGE

FILTER, hyd oil (for component parts of this assembly refer to "HYDRAULIC OIL FILTER" in section "F" of this parts catalog)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

33

9410979

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

3/4" - 90 degree filter outlet port

1шт.

34

140585

CLIP

CLAMP, drive pump to cooler tube

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
