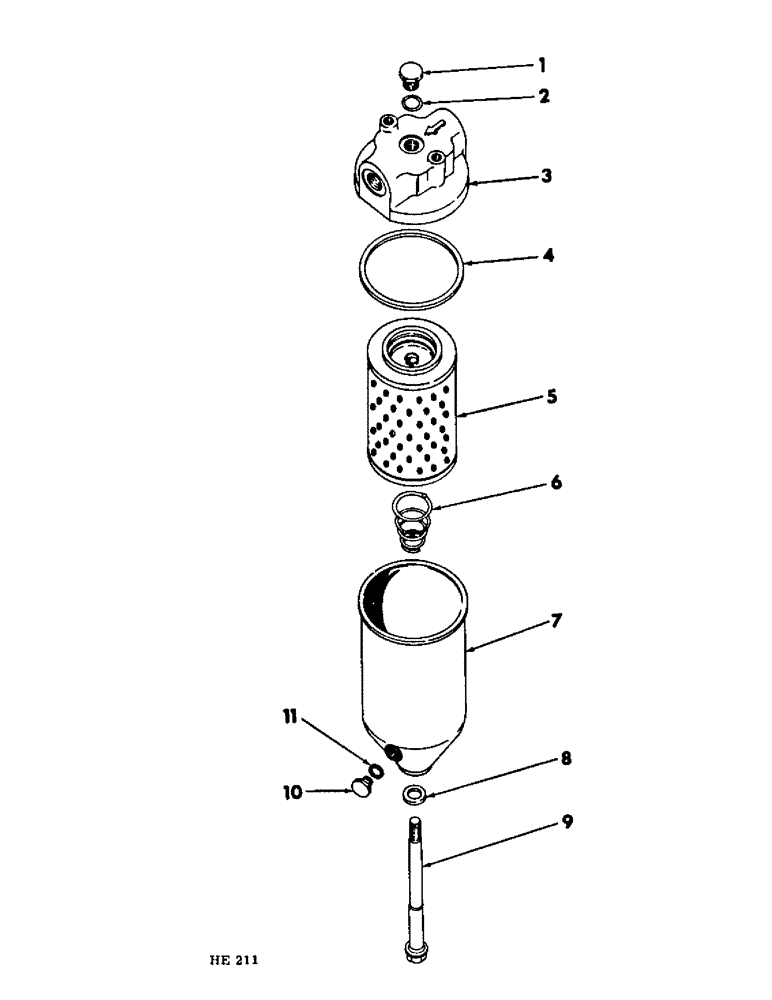

Запчасти Case IH 375 (F-23) - HYDRAULIC SYSTEM, HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

156571C91

FILTER CARTRIDGE

FILTER, hyd oil (composed of all parts listed below, unless otherwise noted)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

1

9410359

PLUG

hyd oil filter base

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

filter plug base

1шт.

3

BASE, hyd oil filter (NSS) (for service order 1 - 156571C91, FILTER)

1шт.

4

381627R1

RUBBER WASHER

GASKET, filter base ring

1шт.

5

381256R91

ELEMENT

hyd oil filter

1шт.

6

471633R1

SPRING

oil filter compression

1шт.

7

471634R1

BODY, hyd oil filter

1шт.

8

381629R1

GASKET

aluminum

1шт.

9

471632R1

BOLT, oil filter hold down

1шт.

10

445078

PLUG

hyd oil filter drain

1шт.

11

381618R1

COPPER WASHER

GASKET, drain plug

1шт.
