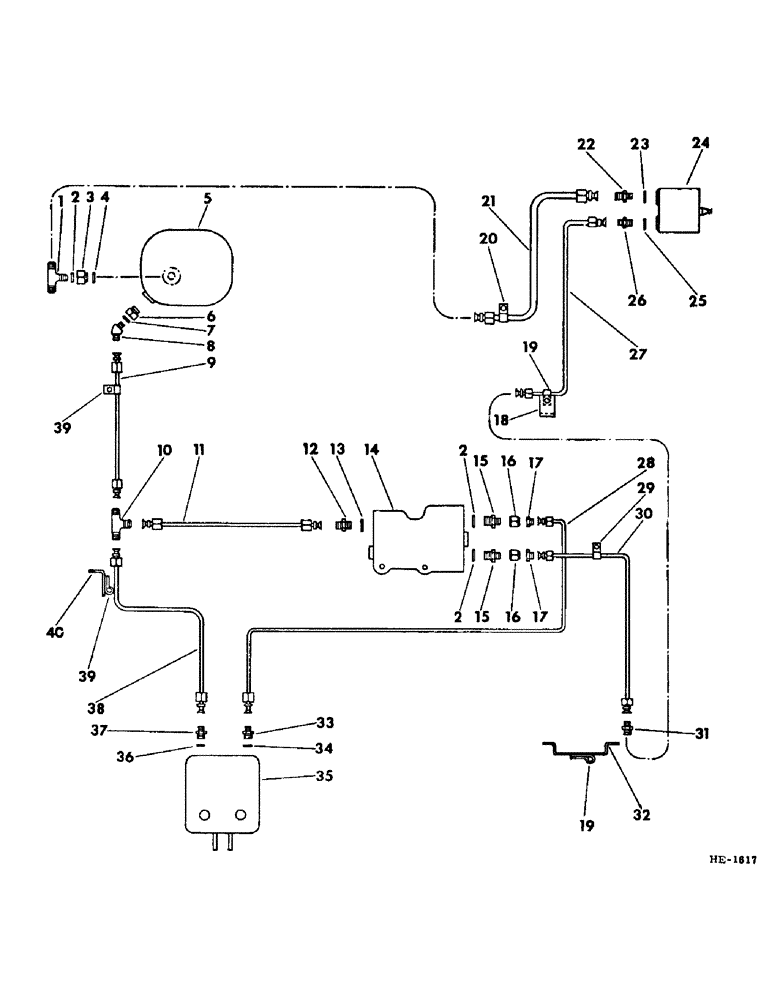

Запчасти Case IH 375 (F-20) - HYDRAULIC SYSTEM, RESERVOIR TO PUMP AND VALVE HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

9411120

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring Br

reservoir suction tube

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir tee

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

suction tube tee & flow divider connector

3шт.

3

598060R1

CONNECTOR, oil reservoir tee reducer

1шт.

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

tee connector

1шт.

4

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

reservoir tee connector

1шт.

5

595382R91

RESERVOIR, hyd oil (for use on 375 Windrower built prior to machine serial No. 701) (for component parts of this assembly refer to "HYDRAULIC OIL RESERVOIR" in section "F" of this parts catalog)

1шт.

5

160993C91

RESERVOIR, hyd oil (for use on 375 Windrower built w/machine serial No. 701 & since) (for component parts of this assembly refer to "HYDRAULIC OIL RESERVOIR" in section "F" of this parts catalog)

1шт.

6

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, reservoir return port (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

reservoir connector

1шт.

6

386976R91

BUSHING,MALE-FEMALE STRT THREAD - #12 (3/4) male oring boss (UNO) to #6 (3/8) O-Ring Boss (UNO) female

REDUCER, hyd oil reservoir return tube (for use on 375 Windrower built w/machine serial No. 701 & since)

1шт.

7

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

return port connector (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

7

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

connector swivel elbow (for use on 375 Windrower built w/machine serial No. 701 & since)

1шт.

8

9411105

ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

45 degree reservoir connector swivel (for use on 375 Windrower built w/machine serial No. 701 & since)

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

swivel elbow

1шт.

9

597899R1

TUBE, oil reservoir return (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701) 1" OD, 43.15, 12.84" Length

1шт.

9

823724C11

TUBE, oil reservoir return (for use on 375 Windrower built w/machine serial No. 701 & since)

1шт.

10

9402982

TEE,3/4"-16, 37 Degree

return tube 3 - way

1шт.

11

596437R1

TUBE, flow divider valve return

1шт.

12

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, divider valve return

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

return tube connector

1шт.

13

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

return tube connector

3шт.

14

396876R91

VALVE, flow divider (for use on 375 Windrower built w/machine serial No. 201 to machines serial No. 823) (for component parts of this assembly refer to "HYDRAULIC FLOW DIVIDER VALVE" in section "F" of this parts catalog)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

543959R91

VALVE, flow divider (for use on 375 Windrower built w/machine serial No. 823 & since) (for component parts of this assembly refer to "HYDRAULIC FLOW DIVIDER VALVE" in section "F" of this parts catalog)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

380632R1

HYD CONNECTOR,3/4"-16, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, valve pressure tube

2шт.

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

pressure connector

2шт.

16

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, 3/4" - NF connector reducer

2шт.

17

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

1/2 x 3/8" flow divider valve tube

2шт.

18

598489R1

ANGLE

hyd pressure tube clamp

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

19

595432R1

CLAMP

high pressure tube

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

20

825525C1

CLAMP, reservoir to hyd pump tube

1шт.

21

597894R1

TUBE, oil reservoir to hyd pump (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 701)

1шт.

21

823725C11

TUBE, oil reservoir to hyd pump suction (for use on 375 Windrower, built w/machine serial No. 701 & since)

1шт.

22

597895R1

CONNECTOR, reservoir tube ot hyd pump suction (for use on 375 Windrower built prior to machine serial No. 2000)

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd connector

1шт.

22

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, reservoir tube to hyd pump suction (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd connector

1шт.

23

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

suction tube connector (for use on 375 Windrower built prior to machine serial No. 2000)

1шт.

23

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

suction tube connector (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

24

596411R91

PUMP

hyd (for use on 375 Windrower built prior to machine serial No. 2000) (for component parts of this assembly refer to "HYDRAULIC PUMP" in section "F" of this parts catalog)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

24

826953C91

PUMP, hyd (for use on 375 Windrower built w/machine serial No. 2000) (for component parts of this assembly refer to "HYDRAULIC PUMP" in section "F" of this parts catalog)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

25

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd pump pressure outlet (for use on 375 Windrower built prior to machine s/n 2000)

1шт.

25

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd pump pressure outlet (for use on 375 Winrdower built w/machine serial No. 2000 & since)

1шт.

26

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, hyd pump pressure outlet (for use on 375 Windrower built prior to machine serial No. 2000)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pressure outlet union

1шт.

26

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION, hyd pump pressure outlet (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

pressure outlet union

1шт.

27

597889R1

TUBE, hyd pump to flow divider valve pressure

1шт.

28

597897R1

TUBE, flow divider valve to hyd control valve pressure 0.375" OD, 18, 8.2" Length

1шт.

29

595432R1

CLAMP

divider valve pressure tube

2шт.

30

598152R2

TUBE, union to flow divider valve high pressure front

1шт.

31

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

hyd pump to flow divider valve tube

1шт.

32

597893R1

SUPPORT, flow divider tube clamp

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

33

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, hyd control valve pressure

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve pressure union

1шт.

34

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve pressure union

1шт.

35

823690C92

VALVE

1шт.

VALVE, hyd control (for service on 375 Windrower built w/machine serial No. 598 to machine serial No. 982, order 1 - 825326C92, VALVE & 1 - 824544C1, PLATE) (for component parts of this assembly refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

35

825326C92

VALVE

hyd control (for use on 375 Windrower built w/machine serial No. 982 & since) (for component parts of this assembly refer to "HYDRAULIC CONTROL VALVE" in section "F" of this parts catalog)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd control valve return tube reducer (for use on 375 Windrower built w/machine s/n 201 to machine s/n 598)

1шт.

36

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd control valve return tube reducer (for use on 375 Windrower built w/machine serial No. 598 & since)

1шт.

37

382449R1

CONNECTOR, ELEC

REDUCER, hyd control valve return tube (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 598)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, return tube reducer

1шт.

37

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, hyd control valve return tube (for use on 375 Windrower built w/machine serial No. 598 & since)

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

return tube connector

1шт.

38

597898R1

TUBE, hyd control valve to tee reservoir return

1шт.

39

826157C1

CLAMP, reservoir return tube

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

40

597900R1

SUPPORT, tube clamp

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
