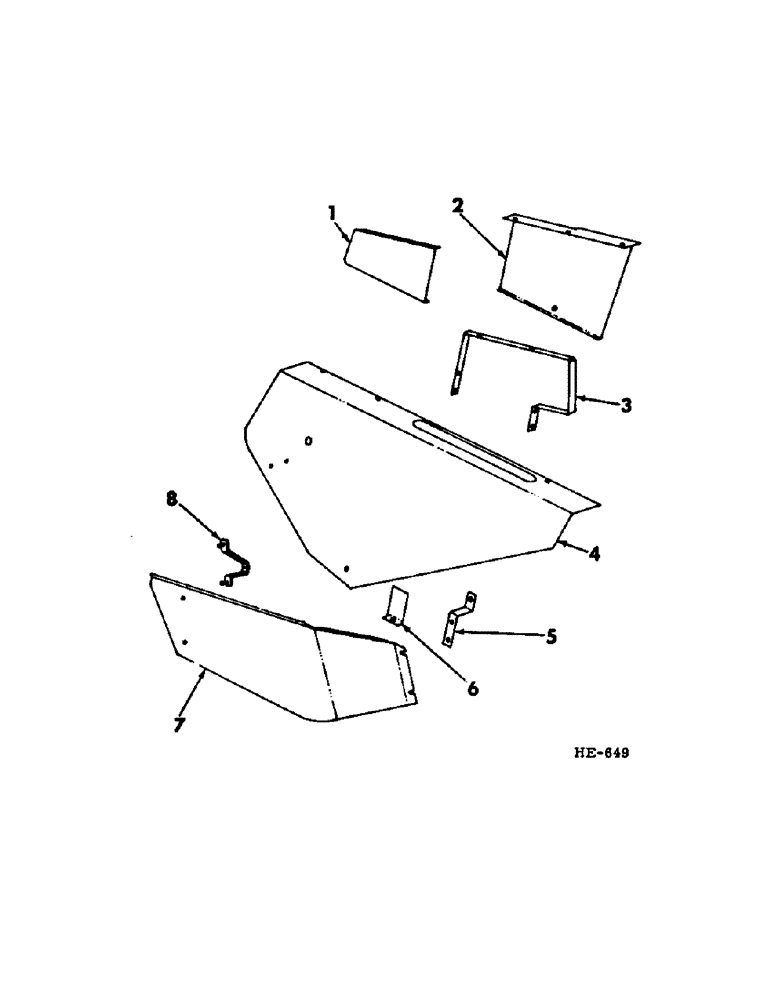

Запчасти Case IH 375 (N-20[A]) - PARTS ACCESSORIES AND ATTACHMENTS, VARIABLE SPEED REEL DRIVE SHIELD Accessories & Attachments

1

598678R1

SUPPORT, reel drive shield upper rear

1шт.

2

598759R1

SUPPORT, reel drive shield upper front

1шт.

3

598753R1

SUPPORT, reel shield intermediate

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 x 7/8"

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

598681R1

SHIELD, reel drive

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

3шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 x 7/8"

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

5

598754R1

SUPPORT, reel shield front

1шт.

6

598679R1

ANGLE, stripper

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

597954R2

SHIELD, auger drive RH

1шт.

8

599857R1

SUPPORT, shield RH rear support (effective May, 1969 & since)

1шт.
