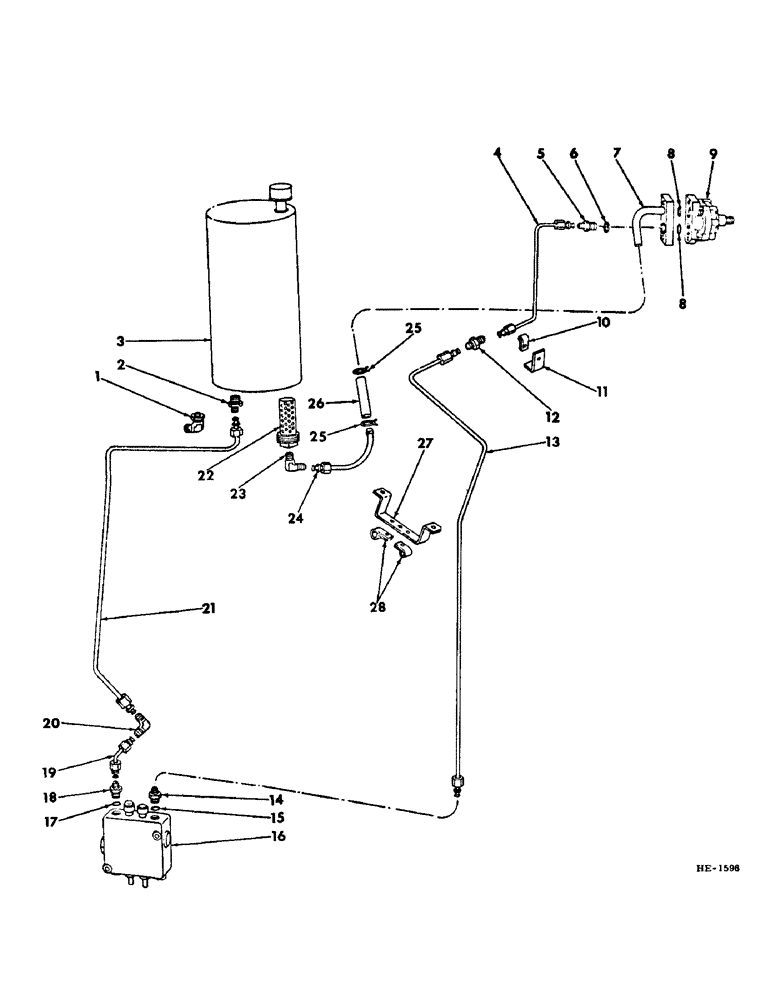

Запчасти Case IH 375 (F-06) - HYDRAULIC SYSTEM, RESERVOIR TO PUMP AND VALVE HYDRAULIC LINES (07) - HYDRAULIC SYSTEM

1

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

90 degree reservoir connector return tube (for service on 275 Windrower built w/machine serial No. 1501 to machine serial No. 2218, order 1 - 811130C1, TUBE)

1шт.

2

9402709

HYD CONNECTOR,3/4"-16, 37 Degree x 3/8"-18, NPTF

CONNECTOR, reservoir return tube

1шт.

3

597436R91

RESERVOIR, hyd oil (for component parts of this assembly refer to "HYDRAULIC OIL RESERVOIR AND MOUNTING" in section "F" of this parts catalog)

1шт.

4

597888R1

TUBE, hyd pump pressure rear

1шт.

5

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, manifold pressure tube

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

pressure tube connector

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

suction tube connector

1шт.

7

595387R91

MANIFOLD, hyd pump

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

283401R1

O-RING

hyd pump manifold (for use on 275 Windrower when equipped w/377033R94, PUMP)

2шт.

8

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

hyd pump manifold (for use on 275 Windrower when equipped w/397130R91, PUMP)

2шт.

9

377033R94

PUMP, HYDRAULIC

PUMP, 4-1/2 gpm hyd (opt to use 1 - 397130R91, PUMP) (for component parts of this assembly refer to "HYDRAULIC PUMP" in section "F" of this parts catalog)

1шт.

9

1949254C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - for N.A. Only

1шт.

9

1949255C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - for N.A. Only

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

397130R91

PUMP

4-1/2 gpm hyd (opt to 1 - 377033R94, PUMP) (for component parts w/this assembly refer to "HYDRAULIC PUMP" in section "F" of this parts catalog)

1шт.

180132

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

3/8 x 2-1/4"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

595432R1

CLAMP

hyd tube

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

11

598489R1

ANGLE

tube clamp support

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR, pump high pressure tube

1шт.

13

597890R1

TUBE, high pressure front 0.375" OD, 38.1, 11.7" Length

1шт.

14

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, high pressure tube to valve

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve connector

1шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve connector

1шт.

16

823690C92

VALVE

1шт.

VALVE, hyd control (on 275 Windrower built w/machine serial No. 1501 to machine serial No. 2275, order 1 - 823690C92, VALVE & 1 - 823686C11, TUBE) (for 275 Windrower built w/machine serial No. 2275 to machine serial No. 4000) (for component parts of the assembly refer to "HYDRAULIC CONTROL VALVE" in section "F" of this catalog)

1шт.

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT, 1/4 x 1-3/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, return tube reducer connector (for 275 Windrower w/machine s/n 1501 to machine s/n 2275)

1шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

return tube reducer connector (for 275 Windrower w/machine serial No. 2275 to machine serial No. 4000)

1шт.

18

382449R1

CONNECTOR, ELEC

CONNECTOR, return tube reducer (for 275 Windrower w/machine serial No. 1501 to machine serial No. 2275)

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, reducer connector

1шт.

18

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, return tube reducer (for 275 Windrower w/machine serial No. 2275 to machine serial No. 4000)

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

reducer connector

1шт.

19

597891R1

TUBE, valve & reservoir return front 1" OD, 2.78, 2.78" Length

1шт.

20

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4" - 90 degree front to rear hyd return

1шт.

21

597892R1

TUBE, oil reservoir return rear (for service on 275 Windrower built prior to machine serial No. 2218, order 1 - 811130C1, TUBE and discard 9410218, ELBOW)

1шт.

21

811130C1

TUBE, oil reservoir return rear (for use on 275 Windrower built w/machine serial No. 2218 to machine serial No. 4000)

1шт.

22

619037R91

STRAINER ASSY.

FILTER, hyd oil reservoir

1шт.

23

343805R1

ELBOW, 1/2" - 90 degree reservoir strainer hyd pump suction tube

1шт.

24

595389R21

FITTING, hyd pump suction hose 0.75" OD, 4.5, 3.5" Length

1шт.

25

628091R1

CLAMP, hyd pump suction hose

2шт.

26

591978R2

HOSE, hyd pump suction

1шт.

27

597893R1

SUPPORT, high pressure & return tube

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

28

826157C1

CLAMP, return tube

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
