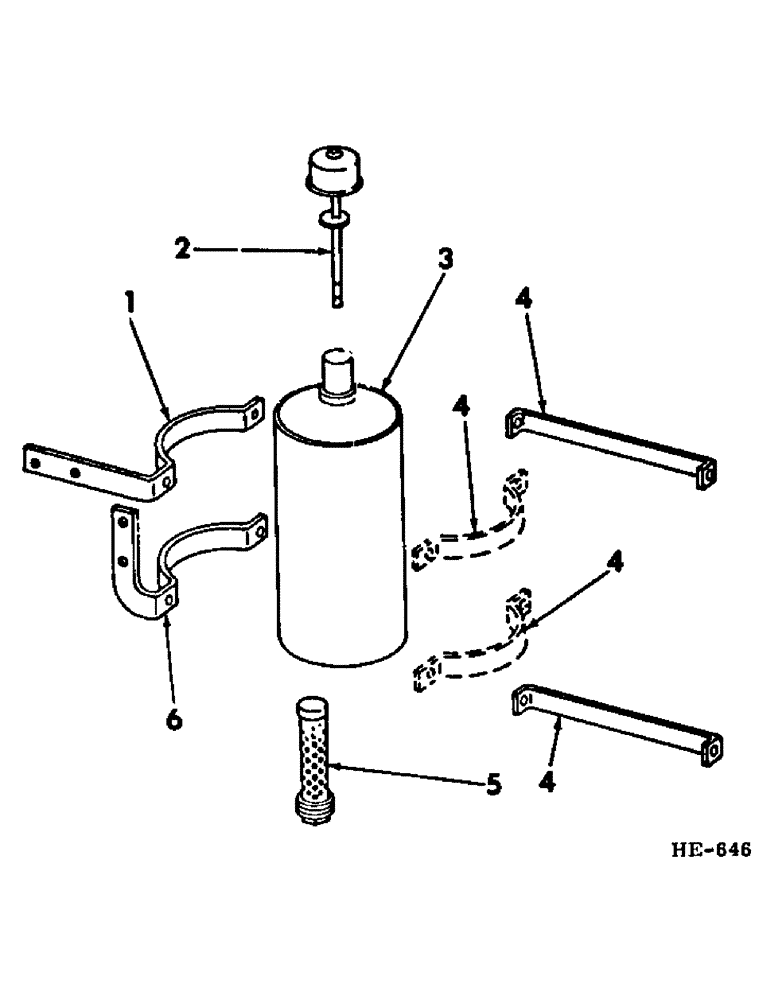

Запчасти Case IH 375 (F-05) - HYDRAULIC SYSTEM, HYDRAULIC OIL RESERVOIR AND MOUNTING (07) - HYDRAULIC SYSTEM

1

597863R1

SUPPORT, oil reservoir upper (for use on 275 Windrower when equipped w/gasoline engine, built prior to machine serial No. 4000)

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

1

827131C1

SUPPORT, oil reservoir (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 4000 & since)

1шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

1

597863R1

SUPPORT, oil reservoir (for use on 275 Windrower when equipped w/diesel engine)

2шт.

180147

SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5

BOLT, 7/16 x 1-1/4"

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

596357R1

CAP

oil reservoir dipstick

1шт.

3

597436R91

RESERVOIR, hyd oil (includes 1 - 596357R1, CAP)

1шт.

4

597881R1

CHANNEL, oil reservoir holding

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

619037R91

STRAINER ASSY.

FILTER, oil reservoir

1шт.

6

597864R1

SUPPORT, oil reservoir lower (for use on 275 Windrower when equipped w/gasoline engine)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
