Артикул
Название
Примечание
Количество

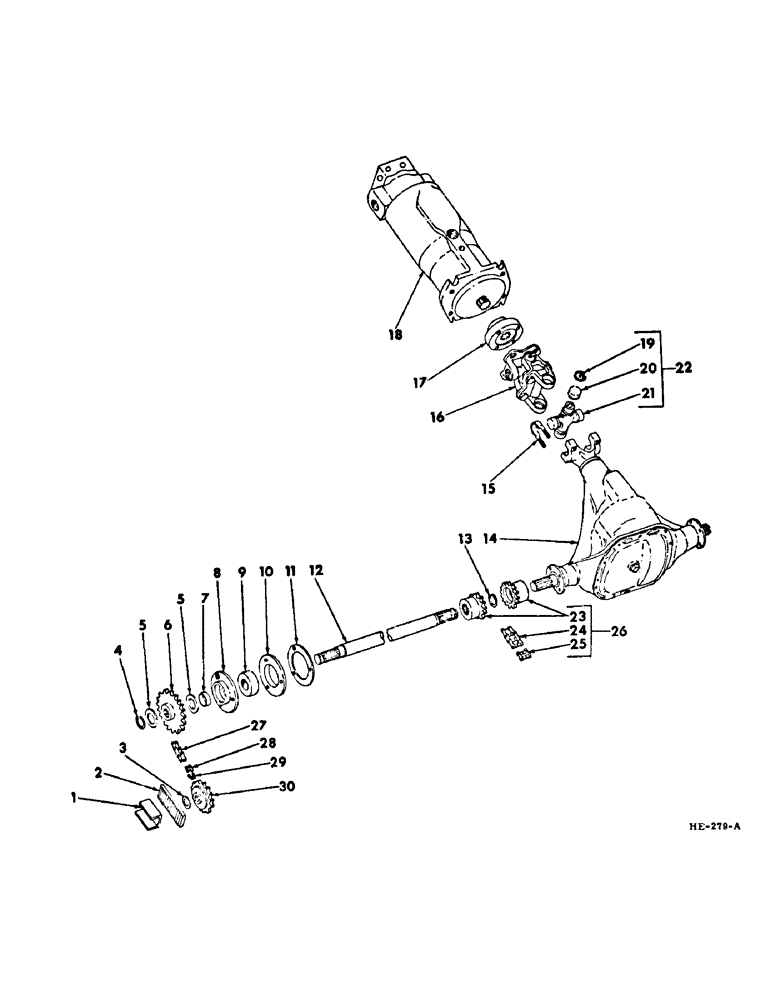

1
593321R11
BRACKET, chain tightener adjusting
2шт.
271724
PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5
5/8 x 2-1/4"
2шт.
22765R1
WASHER
21/32 x 1-1/2 x 11 ga
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
2
596026R2
WASHER, sprocket lock-out
2шт.
3
615131R1
WASHER
21/32 x 1 x 22 ga
1шт.
4
313675R1
RING, SNAP,#106, Ext
sprocket shaft #106, Ext
2шт.
5
595201R1
WASHER
1-1/8 x 1-3/4 x 22 ga
1шт.
6
823692C1
SPROCKET, 22T drive input shaft
2шт.
7
823635C1
SPACER, input shaft sprocket
2шт.
8
595127R11
RETAINER, brg
2шт.
9
591871R91
BALL BEARING,30 mm ID x 62 mm OD x 16 mm
input shaft (opt to use 1 - 591872R91, BEARING)
2шт.
9
591872R91
BEARING
input shaft (opt to use 1 - 591871R91, BEARING)
2шт.
10
565631R1
BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"
RETAINER, input shaft brg
2шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
11
595196R1
GASKET
brg retainer
2шт.
12
595194R1
SHAFT, final drive input
2шт.
13
313675R1
RING, SNAP,#106, Ext
shaft coupling #106, Ext
2шт.
DIFFERENTIAL, hydrostatic drive (for service on 375 Windrower built w/machine serial No. 701 to machine serial No. 1105, order 1 - 826917C91, CARRIER; 1 - 826915C1, LEVER; 1 - 826916C1, ROD & 1 - 826913C1, HUB) (for component parts of this assembly refer to "HYDROSTATIC DIFFERENTIAL" in section "B" of this parts catalog)
1шт.
14
823732C91
DIFFERENTIAL, hydrostatic (for use on 375 Windrower built w/machine serial No. 1105 & since) (for component parts of this assembly refer to "HYDROSTATIC DIFFERENTIAL" in section "B" of this parts catalog)
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1"
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
15
645131R1
BOLT,U, 5/16" - 24 x 1 3/16"
U-BOLT, differential yoke
2шт.
120368
NUT,5/16"-24, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
16
823730C91
COUPLING, differential drive composed of, (4) BOLT, (4) LOCKWASHER, (4) NUT, (2) PACKAGE 121406R91, (2) YOKE 131601H, (1) YOKE
1шт.
17
823695C1
HUB, motor coupling (for use on 375 Windrower built w/machine serial No. 701 to machine serial No. 1105)
1шт.
17
826913C1
HUB, motor coupling (for use on 375 Windrower built w/machine serial No. 1105 & since)
1шт.
80297R1
BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8
3/8 NF x 1-1/2" type 8
4шт.
120369
NUT,3/8"-24, G5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
18
67807C91
MOTOR, hydrostatic drive (RENEWED) (for component parts of this assembly refer to "HYDROSTATIC MOTOR" in section "F" of this parts catalog)
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
1/2 x 1-3/4"
4шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
19
131591H
RING, centre cross snap
8шт.
20
131589HX
BEARING & SEAL, centre cross
8шт.
21
127296R11
SPIDER ASSY.
CROSS, journal
2шт.
FITITNG, cross lub
2шт.
22
121406R91
KIT
PACKAGE, cross & brg service composed of, (4) BEARING 131589HX, (1) CROSS 127296R11, (4) RING 131591H
2шт.
23
611980R1
PINION
SPROCKET, 14T input shaft coupling
4шт.
24
611979R91
CHAIN (AG)
CHAIN, input shaft coupling (includes 1 - 618249R91, COUPLER)
2шт.
25
618249R91
COUPLING
COUPLER, input shaft coupling chain
2шт.
26
611978R91
COUPLING, final drive input shaft (includes 1 - 611979R91, CHAIN & 2 - 611980R1, SPROCKET)
2шт.
27
CHAIN, 5/8" standard pitch final drive (for service order 1 - 1791D, 10 Ft length of chain, reduce to 95 links, add 1 - 1310D connecting LINK & 2 - 1315D offset LINK)
2шт.
28
1310D
LINK
drive chain connecting
2шт.
29
1315D
LINK
drive chain offset
4шт.
30
610538R92
SPROCKET ASSY.
SPROCKET, 15T chain tightener
2шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
5/8 x 2-1/4"
2шт.
22765R1
WASHER
21/32 x 1-1/2 x 22 ga
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
Выбрано товаров: 55
