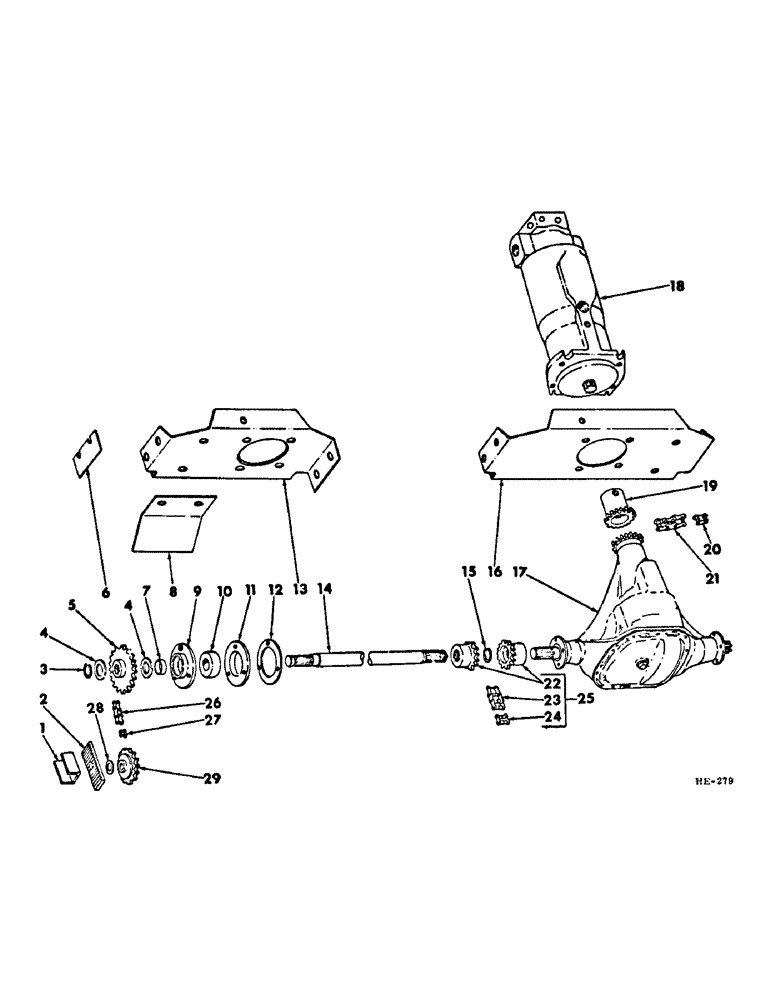

Запчасти Case IH 375 (B-26) - POWER TRAIN, HYDROSTATIC DIFFERENTIAL DRIVE (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
593321R11
BRACKET, chain tightener sprocket adjusting
2шт.
271724
PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5
5/8 x 2-1/4"
2шт.
22765R1
WASHER
21/32 x 1-1/2 x 22 ga
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
2
596026R2
WASHER, sprocket lock-out
2шт.
3
313675R1
RING, SNAP,#106, Ext
sprocket shaft #106, Ext
2шт.
4
595201R1
WASHER
1-1/8 x 1-3/4 x 22 ga
1шт.
5
595199R91
SPROCKET, 22T final drive input shaft (regular speed)
2шт.
5
596285R11
SPROCKET, 18T final drive input shaft (special slow speed)
2шт.
6
598111R1
SHIM, drive motor mounting bracket (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 701)
1шт.
7
595197R1
SPACER, input shaft sprocket
2шт.
8
598082R1
SHIELD, differential covering (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 701)
1шт.
9
595127R11
RETAINER, brg
2шт.
10
591871R91
BALL BEARING,30 mm ID x 62 mm OD x 16 mm
input shaft
2шт.
11
595631R1
SOLE
RETAINER, input shaft brg
2шт.
469668R1
WASHER
13/32" x 3/4 x 16 ga
6шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
12
595196R1
GASKET
brg retainer
2шт.
13
596459R1
BRACKET, hydrostatic drive motor mounting (375 Windrower, built w/machine serial No. 201 to machine serial No. 701)
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
2шт.
180177
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
1/2 x 1-1/2"
2шт.
607895R1
WASHER
17/32 x 1 x 11 ga
6шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
14
595194R1
SHAFT, final drive input
2шт.
15
313675R1
RING, SNAP,#106, Ext
shaft coupling #106, Ext
2шт.
16
595188R1
BRACKET, hydrostatic drive motor mounting (for use on 375 Windrower, built prior to machine serial No. 201)
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
4шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
8шт.
120387
WASHER,3/8" x 3/4" x .060"
NUT, 1/2"
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
17
595190R91
DIFFERENTIAL, hydrostatic drive (for component parts of this assembly refer to "HYDROSTATIC DIFFERENTIAL" in section "B" of this parts catalog)
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1"
8шт.
120377
NUT,3/8" - 16, Gr 5
8шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
8шт.
18
67810C91
REMAN-INJECTION PUMP
MOTOR, hydrostatic drive (RENEWED) (for component parts of this assembly refer to "HYDROSTATIC MOTOR" in section "F" of this parts catalog)
1шт.
180179
BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5
1/2 x 1-3/4"
4шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
19
595189R1
SPROCKET, drive motor coupling (for use on 375 Windrower built prior to machine serial No. 201)
1шт.
595140R2
SCREW, 7/16 x 3/4" sq-hd-cone-pt-set
2шт.
19
598112R2
SPROCKET, drive motor coupling (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)
1шт.
595140R2
SCREW, 7/16 x 3/4" sq-hd-cone-pt-set
2шт.
20
618249R91
COUPLING
COUPLER, coupling sprocket chain drive motor link
1шт.
21
618248R91
COUPLING
CHAIN, hydrostatic drive motor coupling sprocket (includes 1 - 618249R91, COUPLER LINK)
1шт.
22
611980R1
PINION
SPROCKET, 14T input shaft coupling
4шт.
23
611979R91
CHAIN (AG)
CHAIN, input shaft coupling (includes 1 - 618249R91, COUPLER)
2шт.
24
618249R91
COUPLING
COUPLER, input shaft coupling chain
2шт.
25
611978R91
COUPLING, final drive input shaft (includes 1 - 611979R91, CHAIN & 2 - 611980R1, SPROCKET)
2шт.
26
CHAIN, 5/8" std pitch final drive (for service order 1 - 1791D, 10 Ft length of chain; reducer to 95 links & add 1 - 1310D; connecting LINK)
2шт.
27
1310D
LINK
drive chain connecting
2шт.
28
615131R1
WASHER
21/32 x 1 x 22 ga
1шт.
29
610538R92
SPROCKET ASSY.
SPROCKET, chain tightener
2шт.
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
5/8 x 2-1/4"
2шт.
22765R1
WASHER
21/32 x 1-1/2 x 22 ga
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
2шт.
Выбрано товаров: 58
