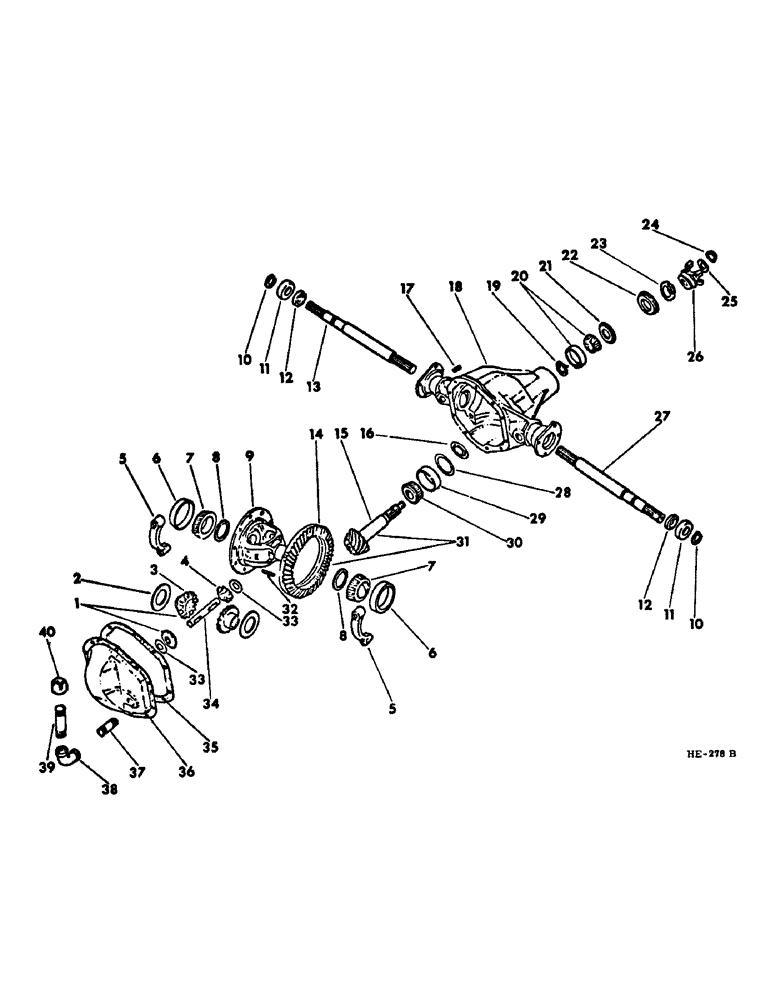

Запчасти Case IH 375 (B-24) - POWER TRAIN, HYDROSTATIC DIFFERENTIAL (03) - POWER TRAIN

826917C91

CARRIER, hydrostatic differential (composed of all parts listed below, unless otherwise noted)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

8шт.

Not part of differential assembly.

1шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

Not part of differential assembly.

1шт.

LK-WASHER, 3/8"

8шт.

Not part of differential assembly.

1шт.

1

398960C91

GEAR-SET

KIT, differential gear & pinion composed of, (NSS) (2) GEAR, (NSS) (2) PINION

1шт.

2

823804C1

WASHER, differential gear thrust

2шт.

3

GEAR, differential (NSS) (for service order 1 - 398960C91, KIT)

2шт.

4

PINION, differential (NSS) (for service order 1 - 398960C91, KIT)

2шт.

5

CAP, differential brg (NSS) (for service order 1 - 826917C91, CARRIER)

2шт.

180155

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

7/16 x 2-1/4"

4шт.

6

869627R1

CUP, differential case brg

2шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, differential case brg

2шт.

8

127892R3

SHIM, .003" differential brg adjusting

2шт.

8

127893R3

SHIM, .005" differential brg adjusting

2шт.

8

127894R3

SHIM, .010" differential brg adjusting

2шт.

9

127895R3

SHIM, .030" differential brg adjusting

2шт.

9

398686C1

CASE, differential

1шт.

10

301020R1

SNAP RING,#118, Ext

Ring, Snap, , shaft bearing #118, Ext

2шт.

11

580711R91

BALL BEARING,1.1811" ID x 2.8346" OD x 0.748"

drive shaft

2шт.

12

596307R91

SEAL, drive shaft oil

2шт.

13

826912C1

SHAFT, drive RH

1шт.

14

GEAR, carrier drive (NSS) (for service order 1 - 398682C91, PINION SET)

1шт.

15

PINION, carrier drive (NSS) (for service order 1 - 398682C91, PINION SET)

1шт.

16

325026C1

RING

BAFFLE, pinion brg

1шт.

17

18437R91

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

FITTING, gear housing pressure

1шт.

18

HOUSING, differential gear carrier (NSS) (for service order 1 - 826917C91, CARRIER)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

8шт.

Not part of differential assembly.

1шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

Not part of differential assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

19

870966R1

SHIM, .003" brg adjusting outer

2шт.

19

870967R1

SHIM, .005" brg adjusting outer

2шт.

19

870968R1

SHIM, .010" brg adjusting outer

2шт.

19

870969R1

SHIM

.030" brg adjusting outer

1шт.

20

871243R1

BEARING, pinion outer

1шт.

21

220141R1

WASHER

SLINGER, pinion oil

1шт.

22

352477C91

PACKING RING

SEAL, pinion oil

1шт.

23

127970R1

TRAP

SLINGER, yoke end oil

1шт.

24

127971R1

NUT

drive pinion gear

1шт.

25

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

drive pinion

1шт.

26

683201R11

CONNECTOR, ELEC

YOKE, drive end (includes 1 - 127970R1, SLINGER)

1шт.

27

826911C1

SHAFT, drive LH

1шт.

28

870963R1

SHIM, .003" brg adjusting inner

2шт.

28

870964R1

SHIM, .005" brg adjusting inner

2шт.

28

870965R1

SHIM, .010" brg adjusting inner

3шт.

29

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

CUP, pinion inner brg

1шт.

30

871244R91

ROLLER BEARING

CONE, pinion inner brg

1шт.

31

398682C91

PINION, drive gear (includes 1 - 127971R1, NUT)

1шт.

127899R1

SCREW,Hex, 3/8" - 24 x 13/16"

drive gear

10шт.

32

127888R1

SPLIT PIN/SAFETY PIN

PIN, lock

1шт.

33

823805C1

WASHER, differential pinion thrust

2шт.

34

319482C1

SHAFT, differential

1шт.

35

823806C1

GASKET

carrier cover

1шт.

36

220150R2

COVER, differential carrier

1шт.

187527

SCREW

5/16 x 5/8" mach w/ext-t-lk-WASHER

10шт.

37

144613

LINE

NIPPLE, 3/4 x 1-3/8" carrier cover

1шт.

38

192651

ELBOW, 3/4 x 1/2" - 90 degree reducing

1шт.

39

121208

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, 1/2 x 1-1/8" reducing elbow

1шт.

40

119101

CAP,1/2" NPT

1/2" oil filler pipe

1шт.

823803C91

KIT, differential parts composed of, (1) KIT 398960C91, (2) WASHER 823804C1, (2) WASHER 823805C1, (1) SHAFT 319482C1, (1) PIN 127888R1

1шт.

825232C91

SET, differential SHIM composed of, (2) SHIM 870966R1, (2) SHIM 870967R1, (2) SHIM 870968R1, (1) SHIM 870969R1, (2) SHIM 870963R1, (2) SHIM 870964R1, (3) SHIM 870965R1, (2) SHIM 127892R3, (2) SHIM 127893R3, (2) SHIM 127894R3, (2) SHIM 127895R3

1шт.
