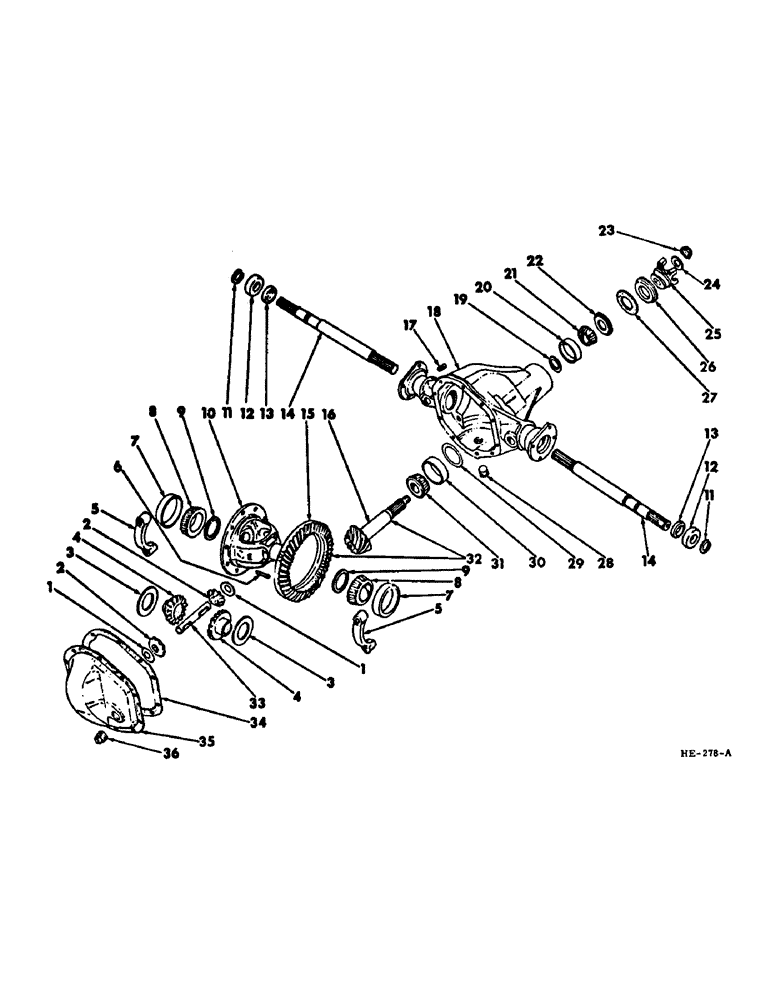

Запчасти Case IH 375 (B-22) - POWER TRAIN, HYDROSTATIC DIFFERENTIAL (03) - POWER TRAIN

CARRIER, hydrostatic differential (for service of the complete CARRIER, refer to "NOTE") (composed of all parts listed below, unless otherwise noted)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

1

220152R1

WASHER, differential pinion mate

2шт.

2

220137R1

GEAR, differential pinion

2шт.

3

220151R1

WASHER, differential side gear

2шт.

4

220136R1

GEAR, differential side

2шт.

5

CAP, differential brg (NSS) (for service order 1 - 598894R91, CARRIER)

2шт.

NLS

NO LONGER SERVICED

7/16 x 2-1/4"

4шт.

6

912699R1

PIN

pinion mate shaft lock

1шт.

7

869627R1

CUP, differential brg

2шт.

8

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, differential brg

2шт.

9

127892R3

SHIM, .003" differential brg adjusting

2шт.

9

127893R3

SHIM, .005" differential brg adjusting

2шт.

9

127894R3

SHIM, .010" differential brg adjusting

2шт.

9

127895R3

SHIM, .030" differential brg adjusting

2шт.

10

899710R1

CASE, differential

1шт.

10

598893R91

CASE ASSEMBLY, differential composed of, (1) CASE 899710R1, (2) GEAR 220137R1, (2) GEAR 220136R1, (1) PIN 912699R1, (1) SHAFT 220154R1, (2) WASHER 220152R1, (2) WASHER 220151R1

1шт.

11

301020R1

SNAP RING,#118, Ext

Ring, Snap, , drive shaft bearing #118, Ext

2шт.

12

580711R91

BALL BEARING,1.1811" ID x 2.8346" OD x 0.748"

drive shaft

2шт.

13

596307R91

SEAL, drive shaft oil

2шт.

14

596308R1

SHAFT, drive

2шт.

15

PINION, bevel drive (NSS) (for service 1 - 596203R91, PINION AND GEAR)

1шт.

16

GEAR, bevel drive (NSS) (for service order 1 - 596303R91, PINION AND GEAR)

1шт.

17

18437R91

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

FITTING, relief pressure lub

1шт.

18

598894R91

CARRIER, gear (includes 4 - 180155, BOLT & 1 - 871242R1, CUP)

1шт.

NLS

NO LONGER SERVICED

7/16 x 2-1/4"

4шт.

19

870966R1

SHIM, .003" pinion brg adjusting

2шт.

19

870967R1

SHIM, .005" pinion brg adjusting

2шт.

19

870968R1

SHIM, .010" pinion brg adjusting

2шт.

19

870969R1

SHIM

.030" pinion brg adjusting

1шт.

20

871242R1

BEARING

CUP, drive pinion brg rear

1шт.

21

871241R91

ROLLER BEARING

CONE, drive pinion brg rear

1шт.

22

220141R1

WASHER

SLINGER, pinion oil

1шт.

23

127971R1

NUT

drive pinion

1шт.

24

103346

WASHER

drive pinion nut

1шт.

25

866744R11

YOKE, drive end (includes 1 - 127970R1, SLINGER)

1шт.

127970R1

TRAP

END OIL SLINGER

1шт.

26

352477C91

PACKING RING

SEAL, pinion

1шт.

27

127969R1

GASKET

pinion oil seal

1шт.

28

445684

PLUG

1/8" automotive sq-hd pipe

1шт.

29

870963R1

SHIM, .003" pinion adjusting

2шт.

29

870964R1

SHIM, .005" pinion adjusting

2шт.

29

870965R1

SHIM, .010" pinion adjusting

3шт.

30

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

CUP, drive pinion brg front

1шт.

31

871244R91

ROLLER BEARING

CONE, drive pinion brg front

1шт.

32

596303R91

PINION AND GEAR, drive (includes 1 - 127971R1, NUT)

1шт.

127899R1

SCREW,Hex, 3/8" - 24 x 13/16"

drive gear

8шт.

33

220154R1

SHAFT, pinion mate

1шт.

34

266614C1

GASKET

gear carrier cover

1шт.

35

220150R21

COVER

gear carrier (includes 1 - 20969R1, PLUG)

1шт.

187527

SCREW

5/16 x 5/8" mach w/ext-t-lk WASHER

10шт.

36

20969R1

PLUG

3/4" automotive sq-hd gear carrier cover pipe

1шт.

825232C91

SET, differential shim composed of, (2) SHIM 127892R3, (2) SHIM 127893R3, (2) SHIM 127894R3, (2) SHIM 870966R1, (2) SHIM 870967R1, (2) SHIM 127895R3, (2) SHIM 870968R1, (1) SHIM 870969R1, (2) SHIM 870963R1, (2) SHIM 870964R1, (3) SHIM 870965R1

1шт.
