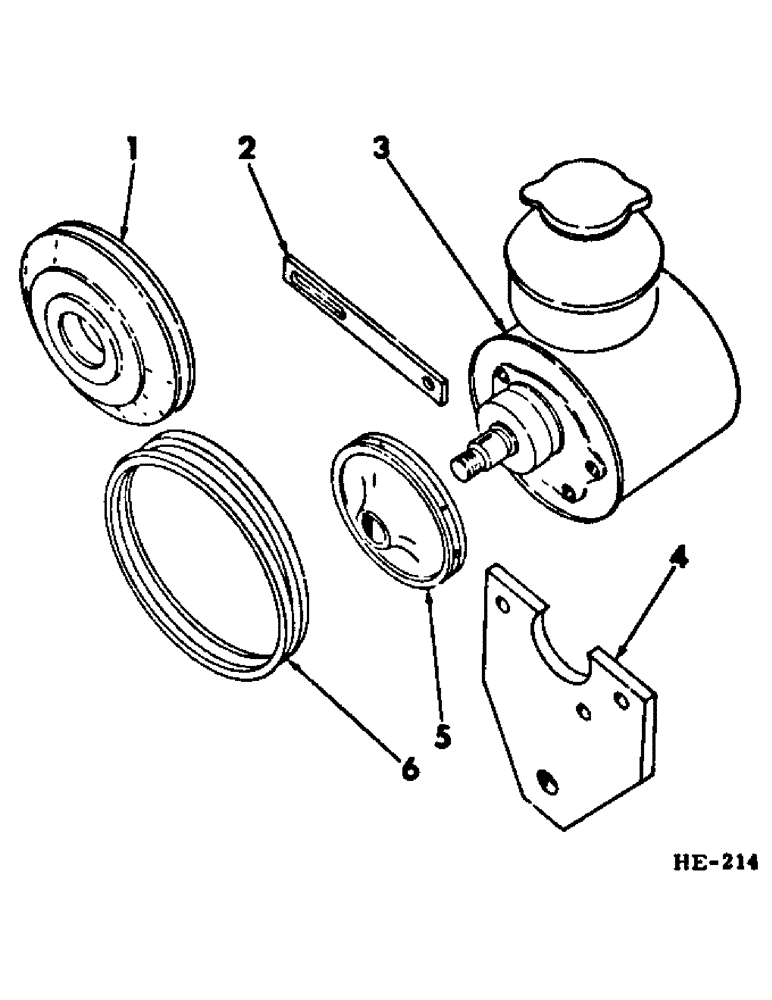

Запчасти Case IH 375 (B-17) - POWER TRAIN, POWER STEERING PUMP AND DRIVE (03) - POWER TRAIN

1

595319R1

PULLEY, hyd pump drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

595317R1

STRIP, hyd pump belt adjusting

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

189333

BOLT,Hex, 3/8" - 24 x 4 1/4", Gr 5

3/8 x 4-1/4"

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

2803R1

WASHER, 13/32 x 1 x 11 ga

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

596028R91

PUMP, power steering hyd (for component parts of this assembly refer to "POWER STEERING HYDRAULIC PUMP" in section "J" of this parts catalog)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

4

595315R11

BRACKET, hyd pump mounting

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

235164R1

PULLEY, power steering hyd pump

1шт.

120396

WASHER

17/32 x 1-1/16 x .095

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2" - NF jam

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

6

595318R1

BELT,0.38" W x 40.00" L

V-BELT , Hyd pump drive 0.38" W x 40.00" L

1шт.
