(B-16) - POWER TRAIN, HYDROSTATIC PROPULSION PUMP DRIVE

Запчасти Case IH 375 (B-16) - POWER TRAIN, HYDROSTATIC PROPULSION PUMP DRIVE (03) - POWER TRAIN

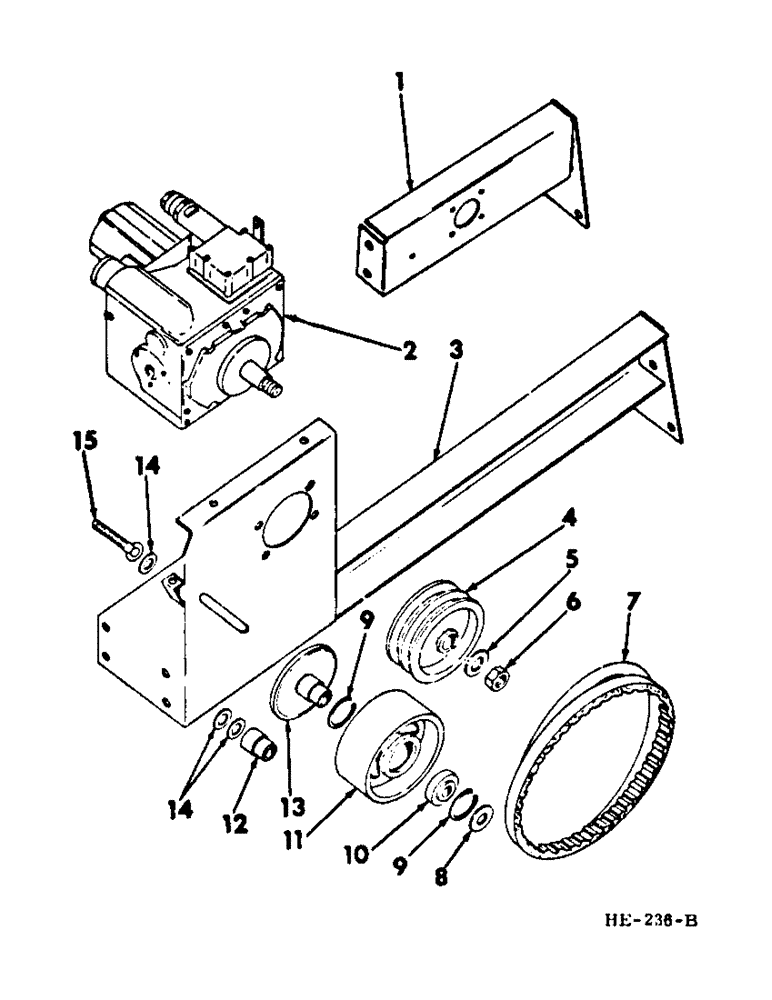

Схема запчастей Case IH 375 - (B-16) - POWER TRAIN, HYDROSTATIC PROPULSION PUMP DRIVE (03) - POWER TRAIN
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

595178R11

SUPPORT, power train mounting LH (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

1

596457R1

SUPPORT, power train mounting LH (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

PUMP, hydrostatic (for service on 375 Windrower built prior to machine serial No. 208, order 1 - 67791C91, PUMP; 1 - 598416R1, PULLEY & 1 - 645236R1, NUT) (for component parts of this assembly refer to "HYDROSTATIC DRIVE PUMP" in section "F" of this parts catalog)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

67791C91

PUMP

hydrostatic (for use on 375 Windrower built w/machine serial No. 208 to machine serial No. 701) (for component parts of this assembly refer to "HYDROSTATIC DRIVE PUMP" in section "F" of this parts catalog)

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

595179R12

SUPPORT, power train mounting RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

7шт.

4

595184R1

PULLEY, hydrostatic pump drive (for use on 375 Windrower built prior to machine serial No. 208)

1шт.

113879

KEY

5/16 x 1-1/4" WOODRUFF

1шт.

4

596416R1

PULLEY, hydrostatic pump drive (for use on 375 Windrower built w/machine serial No. 208 to machine serial No. 701)

1шт.

5

652033R1

WASHER

25/32 x 2-1/8 x 1/4" pump drive pulley shaft (for use on 375 Windrower built prior to machine serial No. 208)

1шт.

6

218197

NUT,3/4"-16, G5

3/4" - NF pump drive pulley shaft (for use on 375 Windrower built prior to machine serial No. 208)

1шт.

6

645236R1

NUT, 1" - NF pump drive pulley shaft (for use on 375 Windrower built w/machine serial No. 208 to machine serial No. 701)

1шт.

7

595185R11

BELT

PACKAGE, hydrostatic pump drive pulley belt service (set of two (2) belts)

1шт.

8

21759R1

WASHER

21/32 x 2 x 11 ga

1шт.

9

512889R1

RING

idler pulley brg retaining

2шт.

10

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, idler pulley (opt to use 1 - 608697R91, BEARING)

1шт.

10

608697R91

BALL BEARING,1.378" ID x 2.8346" OD x 0.9892"

idler pulley (opt ot use 1 - 584148R91, BEARING)

1шт.

11

595186R1

PULLEY, pump belt idler (375 Windrower built prior to machine serial No. 623)

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

825259C1

PULLEY, hydrostatic drive pump belt idler (for use on 375 Windrower built w/machine serial No. 623 to machine serial No. 701)

1шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

595187R1

BUSHING, drive belt idler pulley (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

13

598271R1

BRACKET, drive belt idler pulley (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 701)

1шт.

14

575810R1

WASHER

SPACER, idler pulley support (for use on 375 Windrower built prior to machine serial No. 208)

1шт.

14

638134R1

SPACER, idler pulley support (for use on 375 Windrower built w/machine serial No. 208 to machine serial No. 701)

1шт.

15

556482R1

EYEBOLT, pump adjusting

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2" jam

2шт.

271733

BODY,Hex, 5/8" - 11 x 4 1/2", Gr 5

5/8 x 4-1/2"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.
