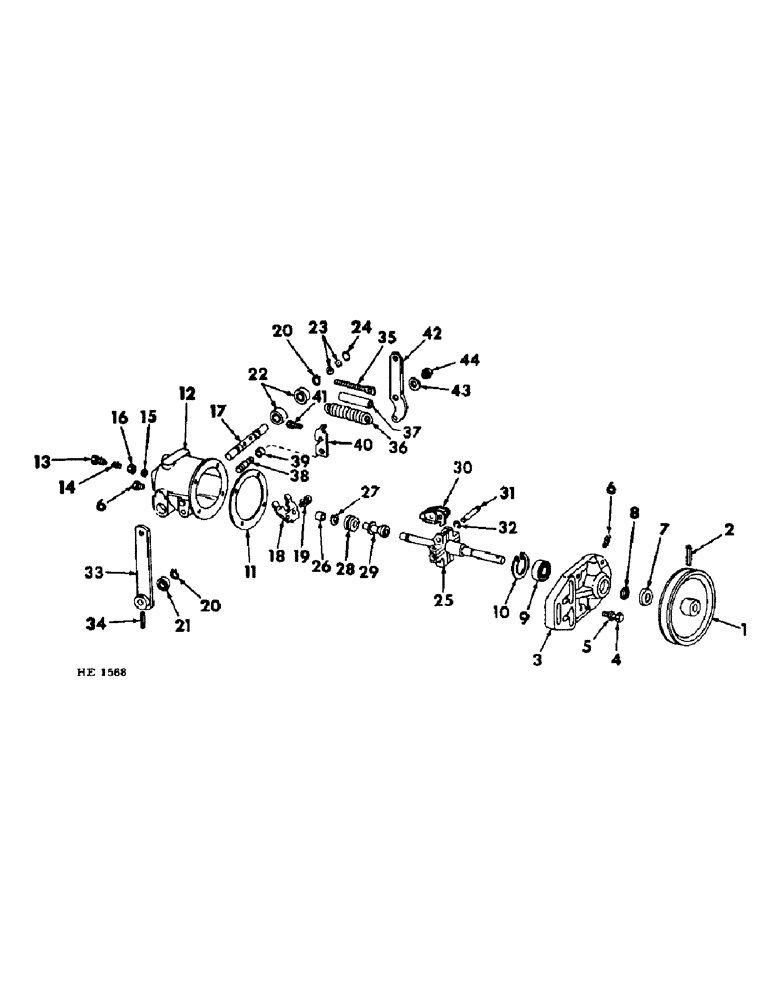

Запчасти Case IH 375 (C-20) - 6 CYLINDER, 232 CARBURETED ENGINE, GOVERNOR, PIERCE (01) - ENGINE

827046C91

GOVERNOR ASSY (includes all parts listed)

1шт.

1

827293C1

PULLEY, drive

1шт.

3

827294C1

PIN, 3/16 x 1-1/8" slt spring, Serial Range: pulley-shaft

1шт.

4

423546

SCREW,Hex Hd, #10-24 x 3/4", w/LW

w/LOCKWASHER, #10 - 24 x 3/4" cover to body

4шт.

5

395-31022

WASHER,#10

13/64 x 15/32 x .036 ga

4шт.

6

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1/8 - 27 pipe

2шт.

7

827295C1

SEAL, cover oil

1шт.

8

827296C1

RING

cover bearing retaining

1шт.

9

261115R91

BEARING

cover ball

1шт.

10

21303R1

RING, bearing retainer inner

1шт.

11

827297C1

GASKET, cover

1шт.

12

BODY (NSS) governor (for service order 1 - 827046C91 GOVERNOR ASSY)

1шт.

13

827298C1

SCREW, bumper

1шт.

14

827299C1

SPRING, bumper

1шт.

15

827314C1

WASHER, bumper screw sealing

1шт.

16

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

on bumper screw Jam, 1/4"-28, G5

1шт.

17

827300C1

SHAFT, rocker

1шт.

18

625832C1

YOKE

1шт.

19

19394R91

SCREW w/LOCKWASHER, #10 - 32 x 7/16" yoke to rocker shaft

2шт.

20

204502R1

SNAP RING,#43, Ext

Rocker shaft #43, Ext

2шт.

21

827301C1

SEAL, rocker shaft oil

1шт.

22

827302C91

BEARING, rocker shaft

2шт.

23

827303C1

WASHER, rocker shaft

2шт.

24

827304C1

PLUG, rocker shaft bore

1шт.

25

827305C1

SHAFT, main drive

1шт.

26

309209R91

NEEDLE BEARING

drive shaft

1шт.

27

378154R1

RING

weight stop

1шт.

28

625883C91

BEARING, drive shaft thrust

1шт.

29

625833C1

SLEEVE, thrust

1шт.

30

827306C1

WEIGHT

2шт.

31

625837C1

PIN, weight to drive shaft

2шт.

32

24499R1

OIL SEAL

RING, weight pin retaining

2шт.

33

827307C1

LEVER, throttle

1шт.

34

17157R1

LOCK PIN,5/32" x 3/4", Slotted

Pin, , throttle lever to rocker shaft 5/32" x 3/4", Slotted

1шт.

35

827308C1

BOLT, throttle adjusting

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

36

827309C1

SPRING, governor

1шт.

37

827310C1

PIN, forced idle

1шт.

38

827311C1

STUD, speed change lever pivot

1шт.

39

827312C1

SPACER, stop bracket

1шт.

40

827313C1

BRACKET, stop

1шт.

41

181567

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5

1/4 - 28 x 7/8" stop bracket

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

42

827315C1

LEVER, speed change

1шт.

43

135307H

WASHER, speed change lever

1шт.

44

827316C1

NUT, 7/16 - 20 elastic stop

1шт.
