Запчасти Case IH 375 (C-14[A]) - 6 CYLINDER, 232 CARBURETED ENGINE, ENGINE GASKET SETS, COMPLETE OVERHAUL (01) - ENGINE

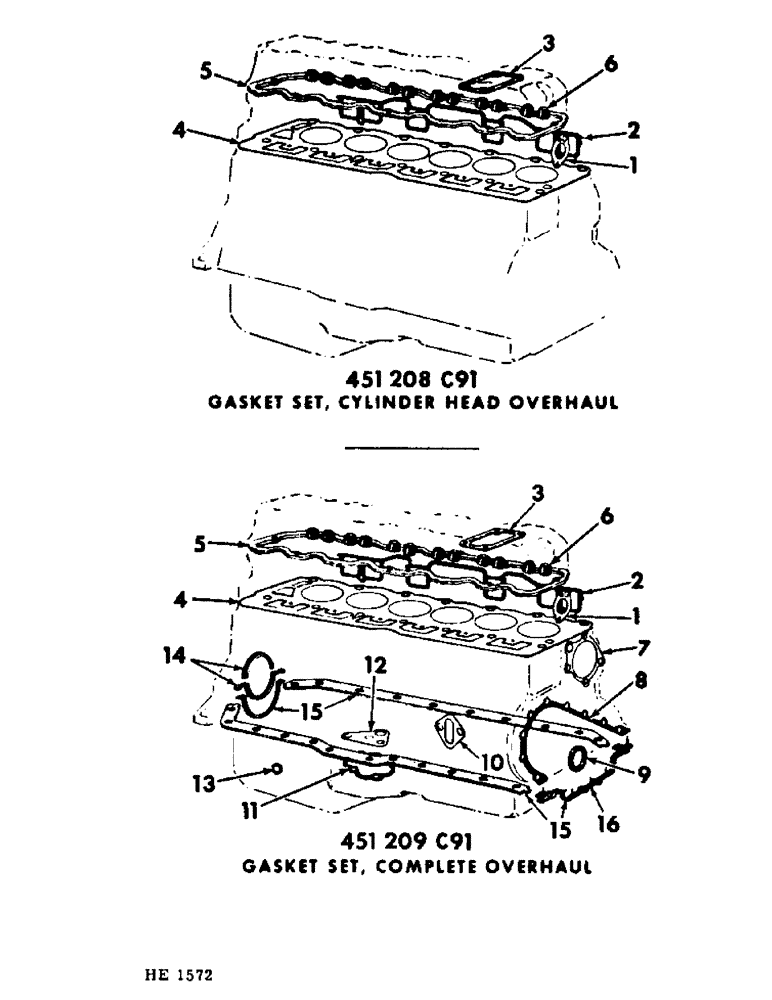

Схема запчастей Case IH 375 - (C-14[A]) - 6 CYLINDER, 232 CARBURETED ENGINE, ENGINE GASKET SETS, COMPLETE OVERHAUL (01) - ENGINE

Артикул

Название

Примечание

Количество

451209C91

GASKET

SET, gasket complete overhaul (includes all parts listed)

1шт.

1

386526C1

GASKET

THERMOSTAT HOUSING

1шт.

2

387125C1

MANIFOLD GASKET

MANIFOLD TO HEAD

1шт.

3

387140C1

GASKET

INTAKE TO EXHAUST MANIFOLD

1шт.

4

387096C1

GASKET

CYLINDER HEAD

1шт.

5

387148C1

GASKET

ROCKER ARM COVER

1шт.

6

444825C1

SEAL

VALVE STEM OIL DEFLECTOR

12шт.

7

387039C1

GASKET

WATER PUMP

1шт.

8

387034C2

FRONT COVER

1шт.

9

387036C91

SEAL

FRONT COVER SEAL

1шт.

10

384851C1

GASKET

FUEL PUMP

1шт.

11

387072C1

OIL PUMP COVER

1шт.

12

387080C1

GASKET

OIL PUMP TO BLOCK

1шт.

13

387088C1

GASKET

OIL PAN DRAIN PLUG

1шт.

14

387015C1

SEAL

REAR MAIN BEARING CAP SEAL

1шт.

15

421230C91

OIL PAN GASKET SET

OIL PAN SEAL KIT

1шт.

16

387037C1

OIL PAN TO FRONT COVER

1шт.

Выбрано товаров: 17
