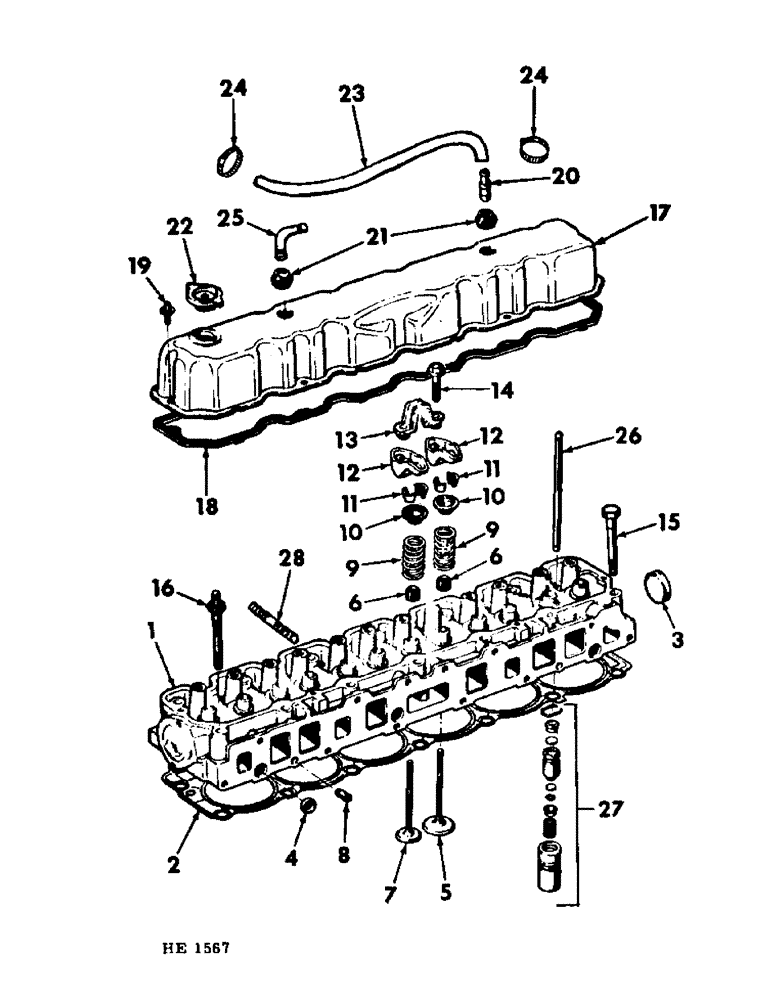

Запчасти Case IH 375 (C-07) - 6 CYLINDER, 232 CARBURETED ENGINE, CYLINDER HEAD AND VALVES (01) - ENGINE

1

445066C91

HEAD ASSY, cylinder, composed of, (NSS) (1) head, (1) plug 387012C1, (1) plug 387094C1, (6) valve 444829C1, (12) deflector 444825C1, (6) valve 444826C1, (2) pin 387110C1, (12) spring 387105C1, (12) retainer 444832C1, (24) lock 387109C1, (2) stud 387130C1

1шт.

2

387096C1

GASKET

cylinder head

1шт.

3

387012C1

PLUG

2" dia. core

1шт.

4

387094C1

PLUG, 7/8" dia. core

3шт.

5

444829C1

VALVE

intake (std.)

6шт.

5

444830C1

VALVE, intake (.003)

6шт.

5

444831C1

VALVE, intake (.015)

6шт.

5

451211C1

VALVE, intake (.030)

6шт.

6

444825C1

SEAL

DEFLECTOR, valve stem oil

12шт.

7

444826C1

VALVE

exhaust (std.)

6шт.

7

444827C1

VALVE, exhaust (.003)

6шт.

7

444828C1

VALVE, exhaust (.015)

6шт.

7

451210C1

VALVE, exhaust (.030)

6шт.

8

387110C1

PIN, head to manifold dowel

2шт.

9

387105C1

SPRING, valve

12шт.

10

444832C1

CUP

RETAINER, valve spring

12шт.

11

387109C1

LOCK, valve spring retainer

24шт.

12

436164C1

ARM

valve rocker

12шт.

13

436165C1

BRACKET

PIVOT, valve rocker arm

6шт.

14

436166C1

BOLT

pivot to cylinder head

12шт.

15

387111C1

BOLT, cylinder head

11шт.

16

387112C1

BOLT, cylinder head w/stud head

3шт.

17

387147C91

COVER, valve rocker arm

1шт.

18

387148C1

GASKET

cover

1шт.

19

387153C91

SCREW W/WASHER, cover

7шт.

20

827331C1

VALVE

cylinder block vent

1шт.

21

387150C1

GROMMET

elbow and vent valve

2шт.

22

387152C1

CAP

oil filter

1шт.

23

827276C1

HOSE

valve to manifold nipple

1шт.

24

274085R91

HOSE CLAMP,#10, 0.56/1.06 Type F Worm

CLAMP, hose

2шт.

25

827278C1

ELBOW

cover to air cleaner hose

1шт.

26

436158C1

ROD

push

12шт.

27

433562C1

TAPPET

ASSY

12шт.

28

387130C1

STUD

manifolds to cylinder head

2шт.
