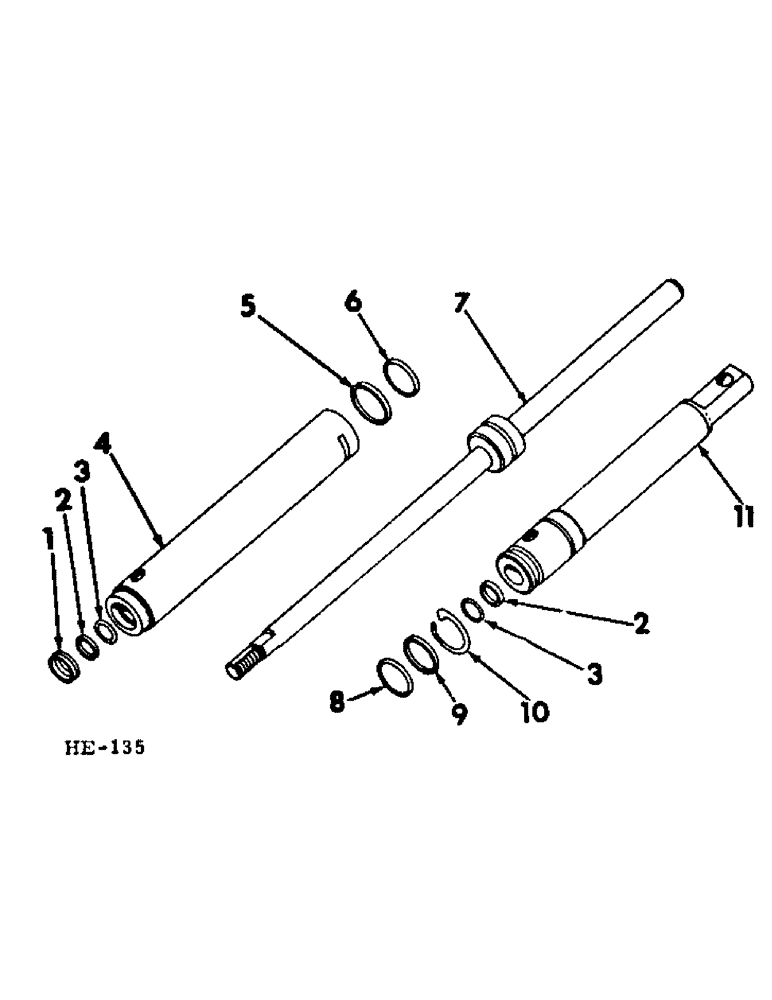

Запчасти Case IH 375 (J-19) - STEERING MECHANISM, POWER STEERING HYDRAULIC CYLINDER Steering Mechanism

378580R91

STEERING CYLINDER

CYLINDER, power steering hyd (composed of all parts listed below) (for attaching hardware refer to "POWER STEERING HYDRAULIC LINES" in section "J" of this parts catalog)

1шт.

1

378587R91

OIL SEAL

scraper oil

1шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

back-up

2шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

hyd cyl retainer

2шт.

4

378590R11

TUBE,10.7" Length

steering hyd cyl

1шт.

5

378586R1

RING,51.1mm ID x 54.66mm OD x 3.56mm Thk

hyd cyl piston

1шт.

6

310939R1

O-RING

hyd cyl piston

1шт.

7

378582R11

ROD

hyd cyl piston

1шт.

8

21924R1

O-RING,1.859" ID x 2.137" OD x 0.139"

hyd cyl front head

1шт.

9

378588R1

BACK-UP RING,48.31mm ID x 54.36mm OD x 1.14mm Thk

WASHER, teflon back-up

1шт.

10

378585R1

SPOKE

RETAINER, hyd cyl end

1шт.

11

378589R21

HEAD

hyd cyl front

1шт.

386693R91

SEAL KIT

PACKAGE, hyd cyl service, composed of, (1) O-RING 21924R1, (1) O-RING 310939R1, (2) O-RING 380794R1, (1) RING 378586R1, (1) SEAL 378587R91, (1) WASHER 378588R1, (2) WASHER 379571R1

1шт.
