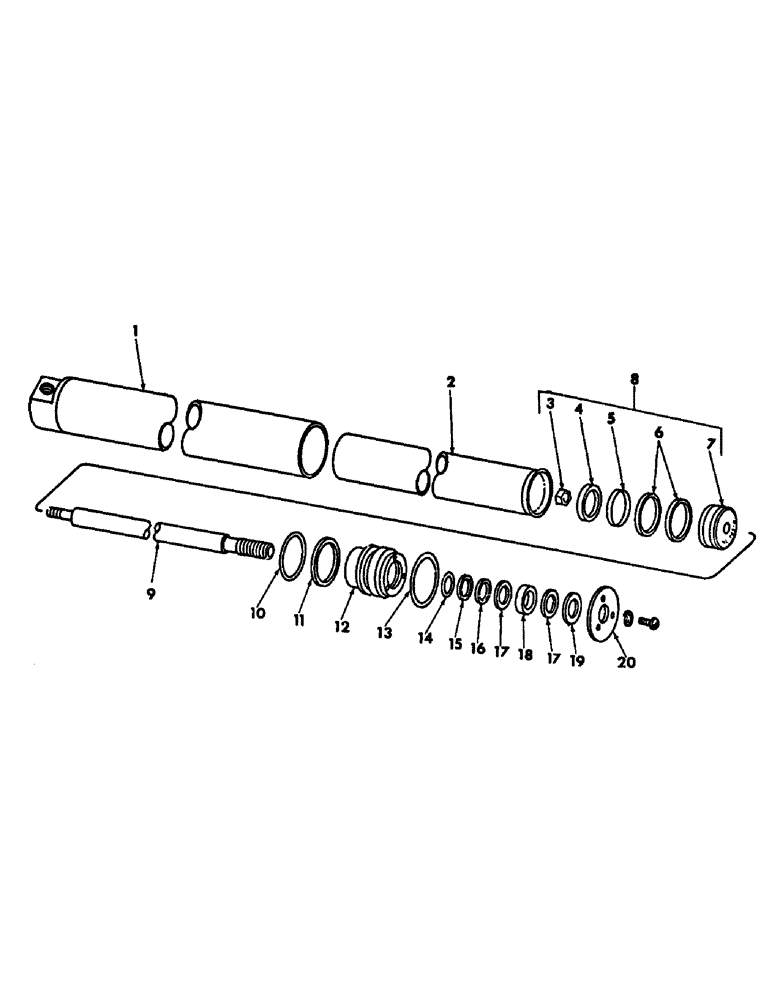

Запчасти Case IH 375 (J-18) - STEERING MECHANISM, POWER STEERING HYDRAULIC CYLINDER Steering Mechanism

633309R91

CYLINDER, power steering hyd (composed of all parts listed below) (for attaching parts refer to "POWER STEERING HYDRAULIC LINES" in section "J" of this parts catalog)

1шт.

1

BARREL, steering hyd cyl (NSS) (for service order 1- 633309R91, CYLINDER)

1шт.

2

935758R1

PIPE, hyd cyl body inner

1шт.

3

442828

NUT, 3/8" - NF lk type HLT piston

1шт.

4

935764R1

RING

piston seal

1шт.

5

935760R1

RING

SHIM, hyd cyl piston

1шт.

6

562285R1

RING

hyd cyl piston

2шт.

7

PISTON, hyd cyl rod (NSS) (for service order 1 - 935762R91, PISTON AND ROD)

1шт.

442828

NUT, 3/8" - NF lock type HLT

1шт.

8

935762R91

PISTON ASSY.

PISTON AND ROD, hyd cyl, composed of, (NSS) (1) piston, (NSS) (1) rod, (1) ring 935764R1, (1) shim 935760R1, (2) ring 562285R1, (1) nut 442828

1шт.

9

ROD, hyd cyl piston (NSS) (for service order 1 - 935762R91, "PISTON AND ROD")

1шт.

10

310939R1

O-RING

hyd cyl gland

1шт.

11

935783R1

RING

o-ring back-up

1шт.

12

871268R1

GLAND, steering hyd cyl

1шт.

13

935782R1

RING

hyd cyl gland

1шт.

14

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

piston rod

1шт.

15

574068R1

SPACER

RING, piston rod o-ring back-up

1шт.

16

574067R1

RING

retaining

1шт.

17

574066R1

RING

piston rod retaining

2шт.

18

566103R91

OIL RESERVOIR

SEAL, piston rod oil

1шт.

19

303322R1

SNAP RING,1.00", Int, #100

Flange 1.00", Int, #100

1шт.

20

935761R1

FLANGE, hyd cyl end plate

1шт.

436570

SCREW,Slotted Pan Hd, #10-24 x 1/2"

No. 10 x 1/2" slt-pan-hd

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.
