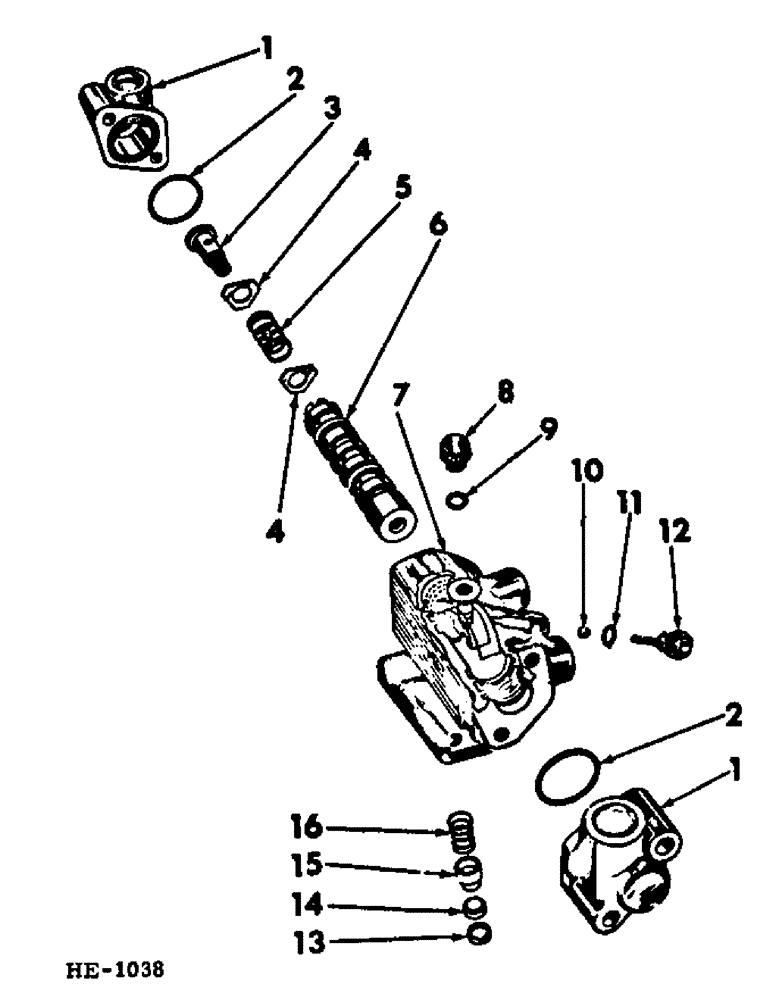

Запчасти Case IH 375 (J-17) - STEERING MECHANISM, POWER STEERING PILOT VALVE Steering Mechanism

527492R91

LOCK VALVE

VALVE, power steering pilot (composed of all parts listed below, unless otherwise noted)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

Not part of valve assembly.

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

Not part of pump assembly.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

Not part of valve assembly.

1шт.

1

379894R1

CAP

pilot valve end

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, valve end cap

2шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

valve spring centering

1шт.

4

379897R1

WASHER

centering screw

2шт.

5

395754R1

SPRING

valve centering (for use on 375 Windrower built prior to machine serial No. 811) (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

5

823050C1

SPRING, valve centering (for use on 375 Windrower built w/machine serial No. 811 to machine serial No. 2000)

1шт.

NSS

NOT SOLD SEPARAT

SPOOL, pilot valve (for service order 1-527492R91, valve)

1шт.

7

9410357

PLUG

0-ring boss

1шт.

8

369348R1

O-RING, boss plug

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING, pilot valve (for service order 1-527492R91, valve)

1шт.

10

16008R1

BALL,1/4" Dia, Steel

1/4" dia steel

1шт.

11

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Pilot valve plug

1шт.

12

379901R91

PLUG

pilot valve (includes 1-379795R1, o-ring)

1шт.

13

382127R1

WASHER

SPACER, check valve (for service on 375 Windrower built prior to machine serial No. 811, order 1-527494R1, check valve & 1-527495R1, seat)

1шт.

14

379810R1

SEAL

SEAT, ball check valve (for service on 375 Windrower built prior to machine serial No. 811, order 1-527494R1, check valve & 1-527495R1, seat)

1шт.

14

527495R1

DISC

SEAT, ball check valve (for use on 375 Windrower built w/machine serial No. 811 to 982) (for use on 375 Windrower built w/machine serial No. 2000 & since)

1шт.

15

382126R1

NO LONGER SERVICED

VALVE, check (for service on 375 Windrower built prior to machine serial No. 811, order 1-527494R1, check valve & 1-527495R1, seat)

1шт.

15

527494R1

VALVE

check (for use on 375 Windrower built w/machine serial No. 811 & since)

1шт.

16

382125R1

SPRING

check valve pressure

1шт.

527493R91

PACKAGE

pilot valve service composed of: (1) o-ring 369384R1, (1) o-ring 379795R1, (2) seal 387088R1

1шт.
