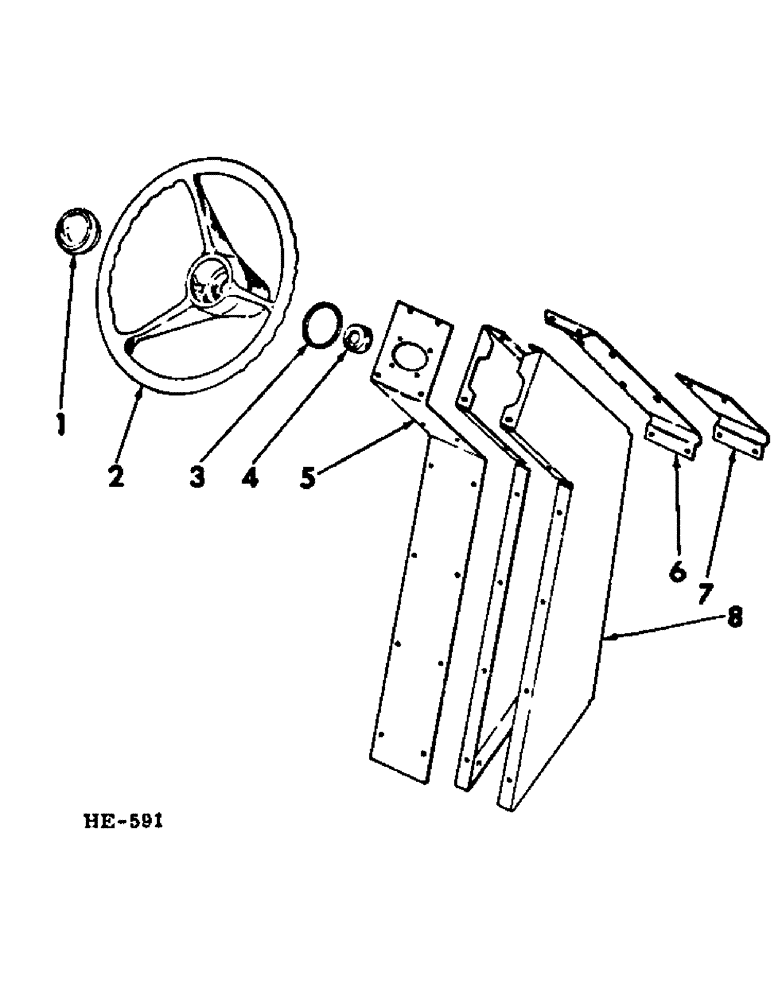

Запчасти Case IH 375 (J-15) - STEERING MECHANISM, HYDROSTATIC STEERING CONTROL Steering Mechanism

1

378395R1

CAP

steering wheel monogrammed

1шт.

2

385156R1

WHEEL (STEERING)

WHEEL, 16" dia steering

1шт.

2

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

3

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

wheel cap retaining

1шт.

4

226032R1

SEAL

hand pump dust

1шт.

5

595308R1

REINFORCEMENT, pedestal rear cover

1шт.

144815

SCREW, No. 8 x 5/8" type A slt-pan-hd self tapping

10шт.

595309R1

FASTENER, type U speed nut

10шт.

180016

SPRING

1/4 x 1/2"

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

597998R1

BRACE, pedestal (for use on 375 Windrower built w/machine serial No. 201 & since)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

6шт.

134238R1

WASHER

11/32 x 1 x 16 ga

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

7

596003R1

CLAMP, pedestal (for use on 375 Windrower built prior to machine serial No. 201)

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8"

4шт.

97865H

WASHER

9/32 x 7/8 x 16 ga

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

PEDESTAL, steering (for service on 375 Windrower built prior to machine serial No. 201, order 1 - 597998R1, BRACE & 1 - 597996R1, PEDESTAL)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

597996R1

PEDESTAL, steering (for use on 375 Windrower built w/machine serial No. 201 & since)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
