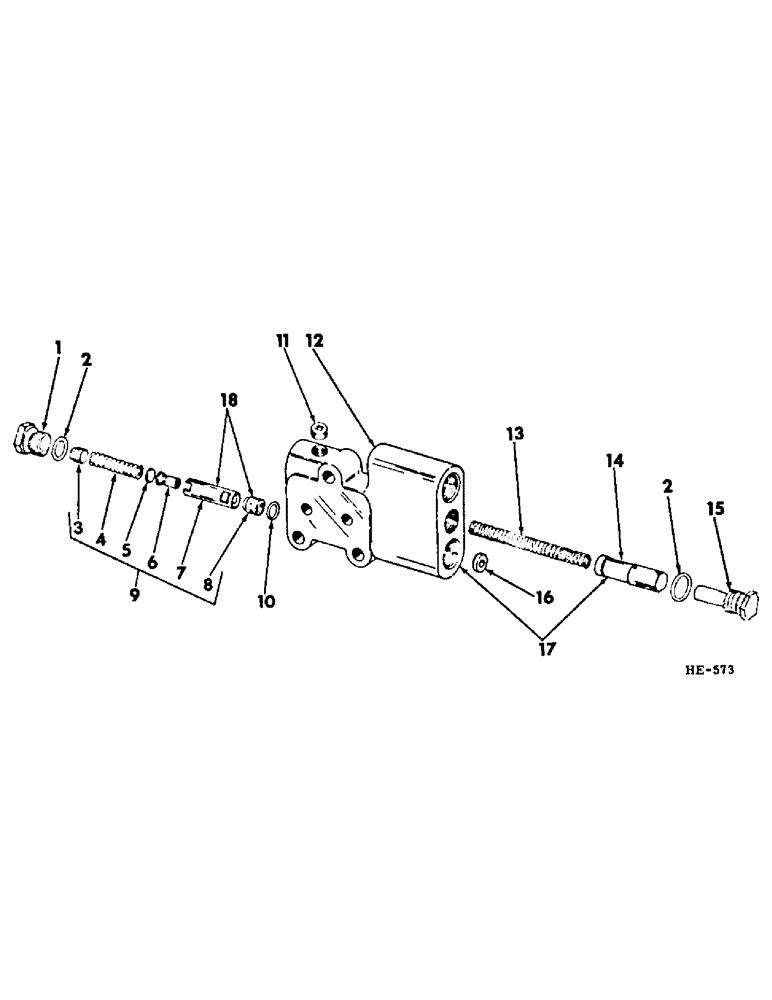

Запчасти Case IH 375 (J-13) - STEERING MECHANISM, POWER STEERING FLOW DIVIDER VALVE Steering Mechanism

543959R91

VALVE, power steering flow divider (composed of all parts listed below)

1шт.

1

397119R1

PLUG, safety valve stop

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

divider & safety valve stop

2шт.

3

SCREW, spg adjusting (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

4

SPRING, safety valve (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

5

SEAT, safety valve spg (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

6

POPPET, safety valve (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

7

RETAINER, safety valve seat (NSS) (order 1 - 384444R92, VALVE)

1шт.

8

SEAT, safety valve (NSS) (order 1 - 384444R92, VALVE)

1шт.

9

384444R92

VALVE

1500 PSI safety, composed of, (NSS) (1) valve, (NSS) (1) poppet, (NSS) (1) spring, (NSS) (1) screw, (NSS) (1) seat

1шт.

10

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32" safety valve

1шт.

11

444655

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG, 1/4" automotive pipe

1шт.

12

BODY, divider valve (NSS) (order 1 - 543958R1, VALVE)

1шт.

13

379211R1

SPRING

flow divider valve

1шт.

14

SPOOL, divider valve (NSS) (order 1 - 543958R1, VALVE)

1шт.

15

379212R11

STOP, flow divider

1шт.

16

ORIFICE, divider valve (NSS) (order 1 - 543958R1, VALVE)

1шт.

17

543958R1

VALVE, flow divider, composed of, (NSS) (1) body, (NSS) (1) spool, (NSS) (1) orifice

1шт.

18

VALVE, safety (NSS) (for service order 1 - 384444R92, VALVE) composed of, (NSS) (1) seat, (NSS) (1) retainer

1шт.
