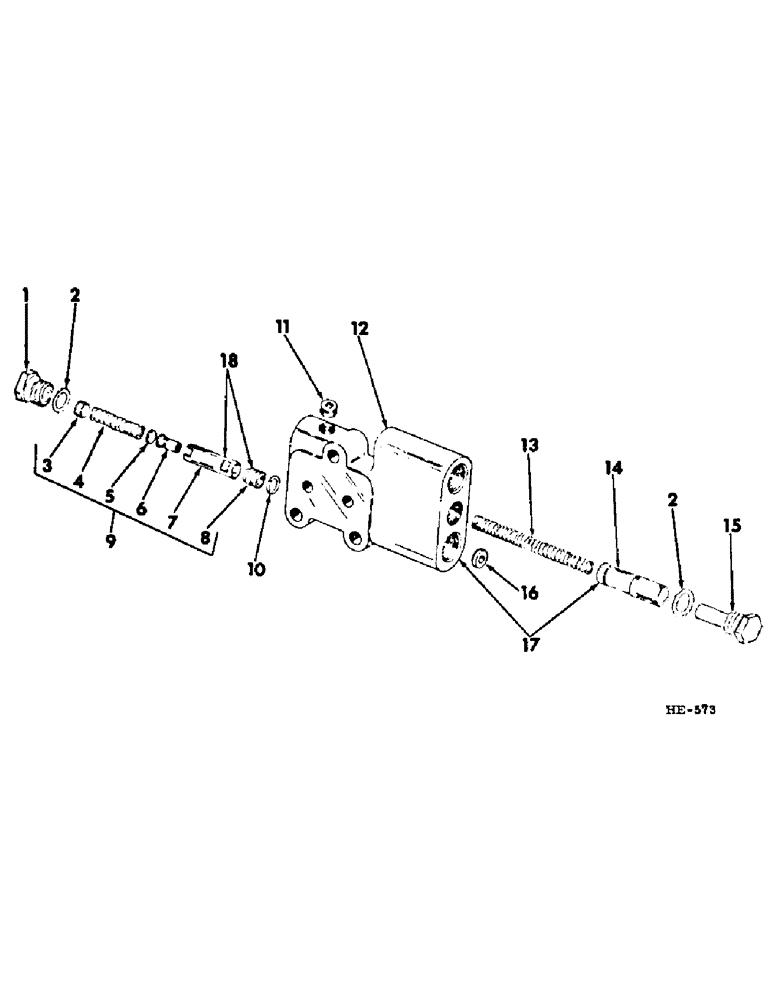

Запчасти Case IH 375 (J-12) - STEERING MECHANISM, POWER STEERING FLOW DIVIDER Steering Mechanism

396876R91

DIVIDER, power steering flow (composed of all parts listed below)

1шт.

1

397119R1

PLUG, safety valve stop

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

divider & valve stop

2шт.

3

SCREW, safety valve spg adjusting (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

4

SPRING, safety valve (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

5

SEAT, safety valve spg (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

6

POPPET, safety valve (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

7

RETAINER, safety valve seat (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

8

SEAT, safety valve (NSS) (for service order 1 - 384444R92, VALVE)

1шт.

9

384444R92

VALVE

flow divider safety, composed of, (NSS) (1) poppet, (NSS) (1) seat, (NSS) (1) screw, (NSS) (1) spring, (NSS) (1) valve

1шт.

10

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

safety valve

1шт.

11

444655

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG, flow divider

1шт.

12

BODY, flow divider valve (NSS) (for service order 1 - 397117R1, VALVE)

1шт.

13

379211R1

SPRING

flow divider valve

1шт.

14

SPOOL, flow divider (NSS) (for service order 1 - 397117R1, VALVE)

1шт.

15

379212R11

STOP, flow divider

1шт.

16

ORIFICE, flow divider valve (NSS) (for service order 1 - 397117R1, VALVE)

1шт.

17

397117R1

VALVE, flow divider, composed of, (NSS) (1) body, (NSS) (1) orifice, (NSS) (1) spool

1шт.

18

VALVE, safety (NSS) (for service order 1 - 384444R92, VALVE) composed of, (NSS) (1) seat, (NSS) (1) retainer

1шт.
