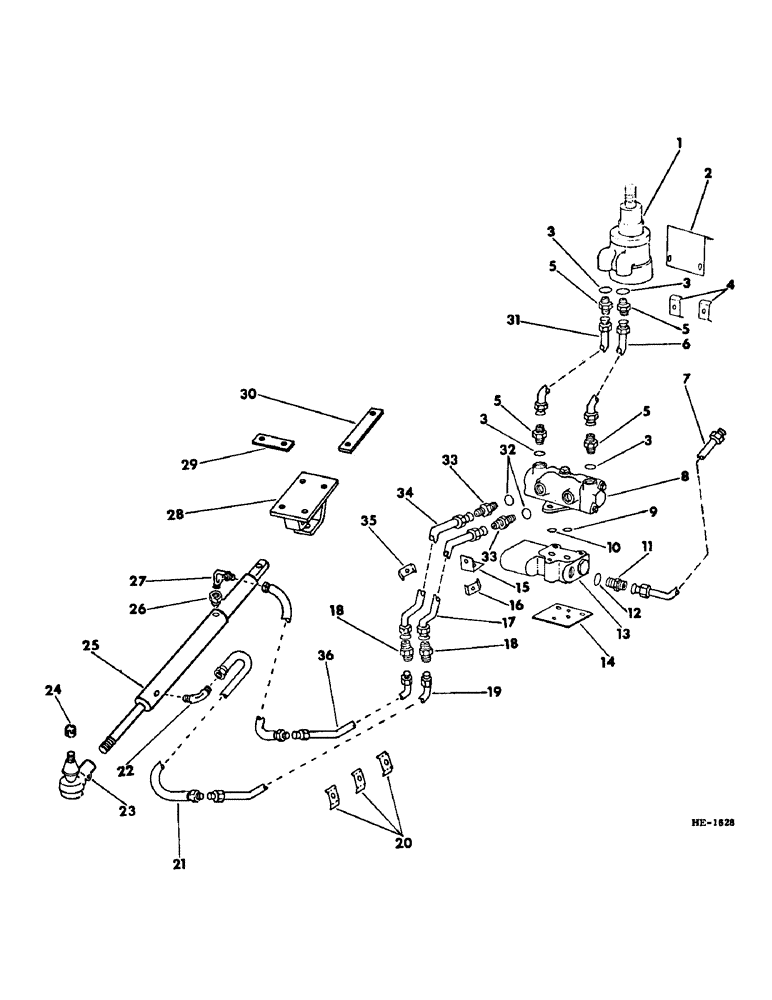

Запчасти Case IH 375 (J-10) - STEERING MECHANISM, POWER STEERING HYDRAULIC LINES Steering Mechanism

1

378578R96

HYDRAULIC STEERING

PUMP, power steering hand (for component parts of this assembly refer to "POWER STEERING HAND PUMP" in section "J" of this parts catalog)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

226032R1

SEAL

hand pump dust

1шт.

2

596006R2

SUPPORT, hyd tube clamp

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hyd tube to hand pump union

4шт.

4

614323R2

CLAMP

hyd tube

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION, hand pump to hyd tube

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

pump to tube

4шт.

6

596435R1

TUBE, hand pump to pilot valve RH

1шт.

7

596437R1

TUBE, flow divider valve return

1шт.

8

527492R91

LOCK VALVE

VALVE, power steering pilot (for component parts of this assembly refer to "POWER STEERING PILOT VALVE" in section "J" of this parts catalog)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

9

362796R1

O-RING,0.924" ID x 0.103" Width

pilot valve outer large

1шт.

10

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

pilot valve outer small

1шт.

11

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, flow divider return tube

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

return tube connector

1шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

return tube connector

1шт.

13

543959R91

VALVE, power steering flow divider (for component parts of this assembly refer to "POWER STEERING FLOW DIVIDER VALVE" in section "J" of this parts catalog)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

14

596436R1

BAR, pilot valve & divider mounting

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

15

825280C1

ANGLE, tube clamp support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

F16370

BAR, tube clamp spacer

1шт.

17

825497C11

TUBE, pilot valve to steering hyd cyl rear

1шт.

18

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

steering hyd cyl tube

2шт.

19

827171C1

TUBE, hyd cyl rear

1шт.

20

614323R2

CLAMP

hyd tube

3шт.

180021

SPRING

1/4 x 7/8"

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

611937R91

HOSE ASSY.

HOSE, steering hyd cyl

2шт.

22

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree hyd cyl rear port

1шт.

23

378817R91

BALL JOINT

END, steering hyd cyl rod

1шт.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

3/8 - NF x 1-3/4"

1шт.

21715R1

WASHER

.906 x 1.750 x .105

3шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

24

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8" - NF hex sltd

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

21214R1

WASHER

1.156 x 2.000 x .105

1шт.

25

378580R91

STEERING CYLINDER

CYLINDER, power steering hyd (for component parts of this assembly refer to "POWER STEERING HYDRAULIC CYLINDER" in section "J" of this parts catalog)

1шт.

P14608

AXLE PIN

PIN, 3/4 x 2-3/4" std-hd-dld

1шт.

520175R1

CLIP

C-PIN, quick-attachable

1шт.

26

279290C1

CONNECTOR, front port

1шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, front port connector

1шт.

27

9402825

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

45 degree hyd cyl front port

1шт.

28

827188C1

ANCHOR, steering hyd cyl front

1шт.

18503R1

BOLT,Hex, 1/2" - 13 x 7 1/2", Gr 5

1/2 x 7-1/2"

3шт.

19787R1

BOLT,Hex, 1/2" - 13 x 8", Gr 5

1/2 x 8"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

29

827190C1

BAR, upper anchor mounting

2шт.

30

827174C1

BAR, hyd cyl anchor tie

1шт.

31

596434R1

TUBE, hand pump to pilot valve LH

1шт.

32

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pilot valve connector

2шт.

33

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, pilot valve

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve connector

2шт.

34

825496C11

TUBE, pilot valve to steering hyd cyl front

1шт.

35

614323R2

CLAMP

hyd tube

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

826941C1

TUBE, hyd cyl front 0.375" OD, 72, 5" Length

1шт.
