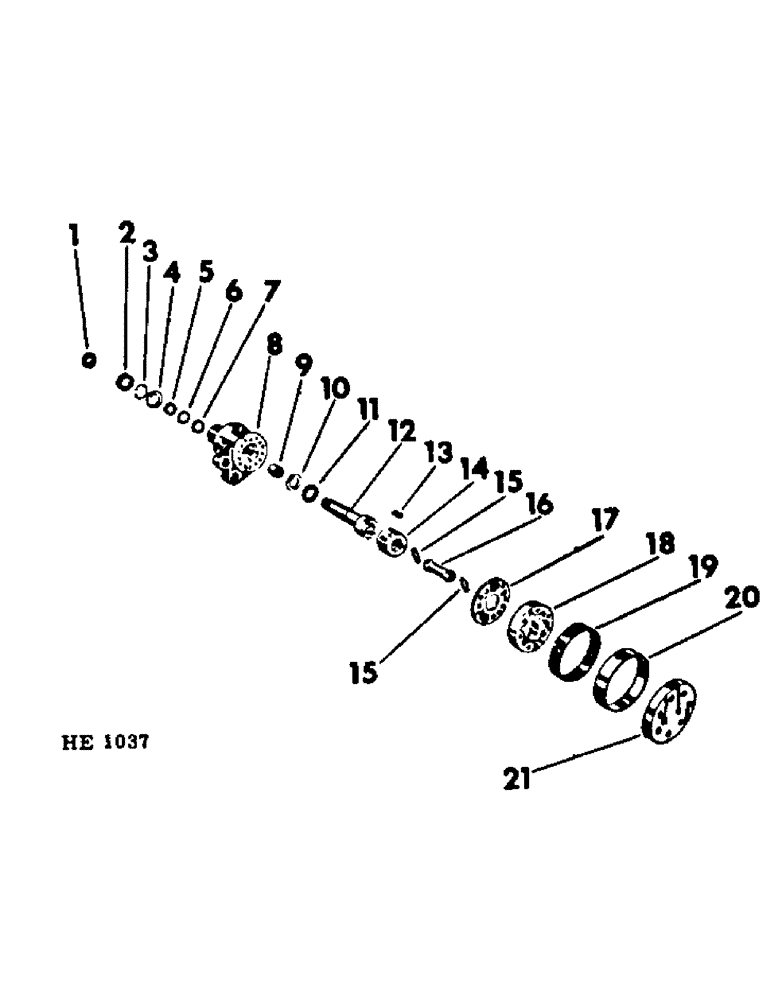

Запчасти Case IH 375 (J-09) - STEERING MECHANISM, POWER STEERING HAND PUMP Steering Mechanism

378578R96

HYDRAULIC STEERING

PUMP, power steering hand (composed of all parts listed below, unless otherwise noted)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

Not part of pump assembly.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

Not part of pump assembly.

1шт.

1

F19646

LOCK NUT,13/16"-20, Thin

NUT, coupling shaft wheel

1шт.

2

SEAL, felt dust (NSS) (for service order 1 - 68201C1, PACKAGE)

1шт.

3

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal spacer

1шт.

4

SPACER, seal (NSS) (for service order 1 - 68201C1, PACKAGE)

1шт.

5

WASHER, back-up (NSS) (for service order 1 - 68201C1, PACKAGE)

1шт.

6

SEAL, coupling shaft (NSS) (for service order 1 - 68201C1, PACKAGE)

1шт.

7

RING, coupling shaft seal (NSS) (for service order 1 - 68201C1, PACKAGE)

1шт.

8

379694R91

BODY

hand pump (includes 1 - 10026R, BEARING)

1шт.

9

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, pump body needle

1шт.

10

379785R1

THRUST WASHER

RACE, needle brg thrust

1шт.

11

379783R91

THRUST BEARING

BEARING, needle thrust

1шт.

12

379784R1

SHAFT

coupling

1шт.

13

379700R1

PIN

hand pump spool

1шт.

14

SPOOL, hand pump (NSS) (for service order 1 - 378578R96, PUMP)

1шт.

15

379693R1

PIN

hand pump link

2шт.

16

379701R1

LINK

hand pump

1шт.

17

396545R1

PLATE

SPACER, hand pump

1шт.

18

379697R3

ROTOR

SET, hand pump

1шт.

19

379781R1

BOOT

SEAL, pump rotor

1шт.

20

379696R1

RING

RETAINER, hand pump rotor seal

1шт.

21

379698R1

COVER

hand pump end

1шт.

379699R1

BOLT,Spcl, Hex, 5/16" - 18 x 1 3/4", Gr 5, HT

end cover

7шт.

405785R91

PACKAGE, REPAIR

KIT, spring & vane service

1шт.

68201C1

SEAL KIT

PACKAGE, hand pump seal service, composed of, (NSS) (1) RING, (NSS) (1) SEAL, (NSS) (1) SEAL, (NSS) (1) SLEEVE, (NSS) (1) SPACER, (NSS) (1) WASHER

1шт.
