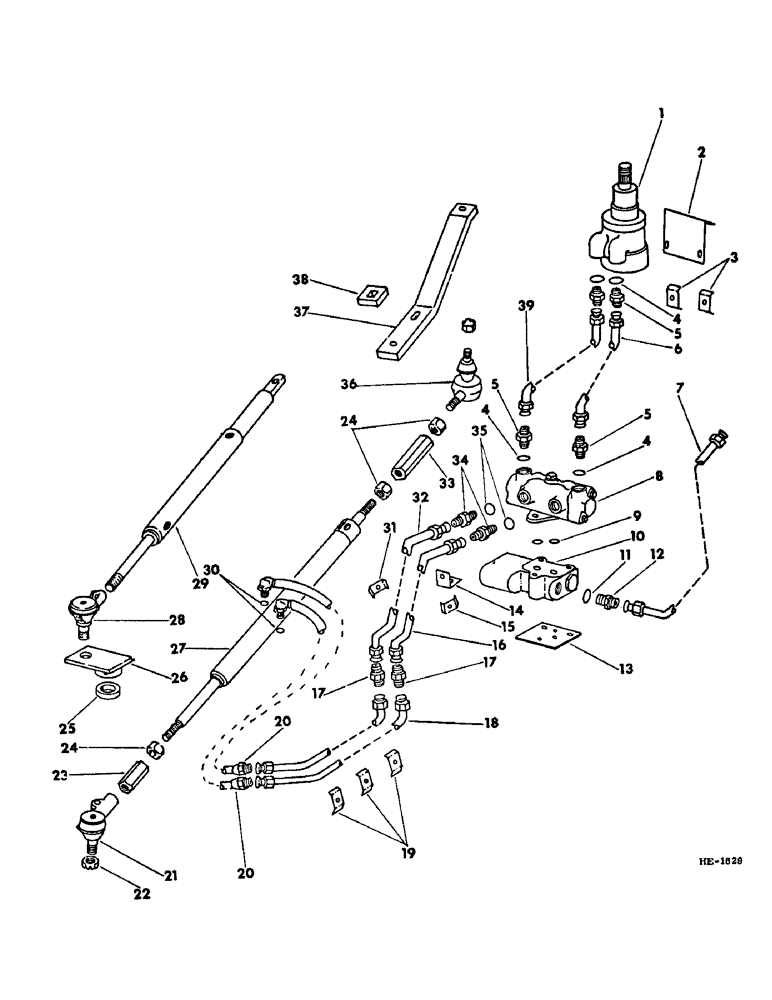

Запчасти Case IH 375 (J-06) - STEERING MECHANISM, POWER STEERING HYDRAULIC LINES Steering Mechanism

1

382579R95

PUMP

power steering hand (for component parts of this assembly refer to "POWER STEERING HAND PUMP" in section "J" of this parts catalog)

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

596006R2

SUPPORT, hyd tube clamp

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

614323R2

CLAMP

steering hyd tube

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8"

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hand pump union

4шт.

5

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION, hand pump

4шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

pump union

4шт.

6

596435R1

TUBE, pump to pilot valve RH

1шт.

7

596437R1

TUBE, flow divider valve return

1шт.

8

396726R91

LOCK VALVE

VALVE, power steering pilot (for service on 375 Windrower built prior to machine serial No. 823, order 1 - 527492R91, VALVE)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

527492R91

LOCK VALVE

VALVE, power steering pilot (for use on 375 Windrower built w/machine serial No. 823 to machine serial No. 982) (for component parts of this assembly refer to "POWER STEERING PILOT VALVE" in section "J" of this parts catalog)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

823037C91

VALVE, power steering pilot (for use on 375 Windrower built w/machine serial no. 982 to machine serial No. 2000) (for component parts of this assembly refer to "POWER STEERING PILOT VALVE" in section "J" of this parts catalog)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

9

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

pilot valve outer small

1шт.

10

396876R91

VALVE, power steering flow divider (for use on 375 Windrower built prior to machine serial No. 823) (for component parts of this assembly refer to "POWER STEERING FLOW DIVIDER VALVE" in section "J" of this parts catalog)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

10

543959R91

VALVE, flow divider (375 Windrower built w/machine serial No. 823 & since) (for component parts refer to "POWER STEERING FLOW DIVIDER VALVE" in section "J" of this parts catalog)

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

return tube connector

1шт.

12

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, flow divider return tube

1шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

return tube connector

1шт.

13

596436R1

BAR, pivot valve & divider mounting

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

4шт.

14

825280C1

ANGLE, tube clamp support (for use on 375 Windrower, built w/machine serial No. 747 to machine serial No. 2000)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

15

F16370

BAR, tube clamp spacer (375 Windrower w/machine serial No. 701 & since)

1шт.

16

597913R1

TUBE, pilot valve to hyd steering cyl rear (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 701)

1шт.

16

823727C11

TUBE, pilot valve to hyd steering cyl RH (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 701)

1шт.

16

825497C11

TUBE, pilot valve to hyd steering cyl front (for use on 375 Windrower built w/machine serial No. 807 to machine serial No. 2000)

1шт.

17

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

steering hyd cyl tube

2шт.

18

597914R1

TUBE, steering hyd cyl inlet (for use on 375 Windrower built w/machine serial No. 807)

2шт.

18

825498C11

TUBE, steering hyd cyl inlet (for use on 375 Windrower built w/machine serial No. 807 to machine serial No. 2000) 0.375" OD, 52, 5" Length

2шт.

19

614323R2

CLAMP

hyd tube

3шт.

180021

SPRING

1/4 x 7/8"

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

595323R91

HOSE, steering hyd cyl

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd cylinder hose

2шт.

21

185121R91

END ASSY.

END, hyd cyl rear rod (includes 1 - 125258, NUT & 1 - 365855R1, SEAL) (375 Windrower built w/machine serial No. 807 to machine serial No. 982)

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

365855R1

SEAL

rod end

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4" straight lub

1шт.

21

823036C91

SOCKET

END, power steering hyd cyl rear rod (includes 1 - 682494R1, NUT & 1 - 189466R1, SEAL) (for use on 375 Windrower, built w/machine serial No. 982 to machine serial No. 2000)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

22

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8" - NF sltd-hex (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 807)

1шт.

21715R1

WASHER

29/32 x 1-3/4 x 11 ga

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

22

682594R1

NUT, special hex sltd (for use on 375 Windrower built w/machine serial No. 982 to machine serial No. 2000)

1шт.

108636

PIN

C-PIN, 3/32 x 1-1/8"

1шт.

23

825439C2

NUT, hyd cyl adjusting rear (for use on 375 Windrower, built w/machine serial No. 807 to machine serial No. 982)

1шт.

24

366432R1

JAM NUT

NUT, 11/16" hex jam (for use on 373 Windrower built w/machine serial No. 807 to machine serial No. 982)

1шт.

108636

PIN

C-PIN, 3/32 x 1-1/8"

1шт.

25

595129R1

BUSHING

SPACER, hyd cyl end (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 807)

1шт.

26

595324R91

ARM, power steering guide wheel (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 807)

1шт.

433156

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1/2 x 4-1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

27

633309R91

CYLINDER, power steering hyd (for use on 375 Windrower built w/machine serial No. 807 to machine serial No. 2000) (for component parts of this assembly refer to "POWER STEERING HYDRAULIC CYLINDER" in section "J" of this parts catalog)

1шт.

28

378817R91

BALL JOINT

END, power steering hyd cyl rear rod (includes 1 - 125258, NUT & 1 - 365855R1, SEAL) (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 807)

1шт.

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

3/8 - NF x 1-3/4"

1шт.

120369

NUT,3/8"-24, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

29

378580R91

STEERING CYLINDER

CYLINDER, power steering hyd (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 807) (for component parts w/this assembly refer to "POWER STEERING HYDRAULIC CYLINDER" in section "J" of this parts catalog)

1шт.

P14608

AXLE PIN

PIN, 3/4 x 2-3/4" std-hd-dld

1шт.

520175R1

CLIP

C-PIN, quick-attachable

1шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, hyd cylinder hose

2шт.

31

614323R2

CLAMP

hyd tube

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

32

597912R1

TUBE, pilot valve to hyd steering cyl front (for use on 375 Windrower, built w/machine serial No. 201 to machine serial No. 701)

1шт.

32

823726C11

TUBE, pilot valve to hyd steering cyl LH (for use on 375 Windrower, built w/machine serial No. 701 to machine serial No. 807)

1шт.

32

825496C11

TUBE, pilot valve to hyd steering cyl front (for use on 375 Windrower, built w/machine serial No. 807 to machine serial No. 2000)

1шт.

33

825477C1

NUT, hyd cyl adjusting front (for use on 375 Windrower built w/machine serial No. 807 to machine serial No. 2000)

1шт.

496496R1

HEADED PIN,5/8" x 2 3/4"

PIN, 5/8 x 2-3/4" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

34

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, pilot valve

2шт.

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve connector

2шт.

35

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pilot valve connector

2шт.

36

185121R91

END ASSY.

END, power steering hyd cyl front rod (includes 1 - 125258, NUT & 1 - 365855R1, SEAL) (for use on 375 Windrower, built w/machine serial No. 982 to machine serial No. 2000)

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4" straight lub

1шт.

365855R1

SEAL

rod end

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

427646

SLOTTED NUT,7/8"-14, G5

7/8" - NF sltd-hex

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

37

823038C1

SUPPORT, steering hyd cyl front (for use on 375 Windrower built w/machine serial No. 982 to machine serial No. 2000)

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

5/8 x 2-3/4"

1шт.

20522R1

BOLT

5/8 - NF x 2-1/4"

1шт.

225861

NUT,5/8"-18, G8

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

38

596424R1

BAR, hyd cyl support spacer (for use on 375 Windrower built w/machine serial No. 982 to machine serial No. 2000)

1шт.

39

596434R1

TUBE, hand pump to pilot valve LH

1шт.
