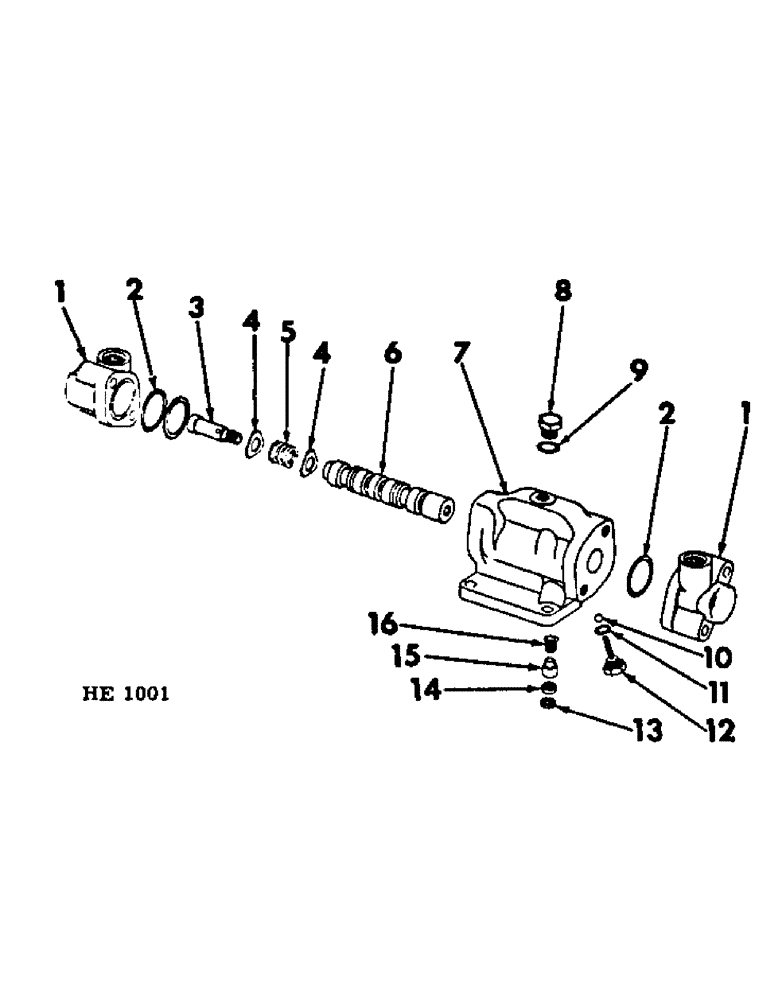

Запчасти Case IH 375 (J-05) - STEERING MECHANISM, POWER STEERING PILOT VALVE Steering Mechanism

379645R93

VALVE

power steering pilot (composed of all parts listed below) (for attaching hardware refer to "POWER STEERING HYDRAULIC LINES" in section "J" of this parts catalog)

1шт.

1

379894R1

CAP

valve end

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8 x 2"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

387088R1

SEALING RING,1.237" ID x 0.103" Width

SEAL, valve end cap

2шт.

3

379896R1

SCREW,3/8" - 24, Drilled, W/ Nylon Pellet

spg centering

1шт.

4

379897R1

WASHER

centering spg screw

2шт.

5

379905R1

SPRING

valve centering

1шт.

6

SPOOL, pilot valve (NSS) (for service order 1 - 379645R93, VALVE)

1шт.

7

HOUSING, pilot valve (NSS) (for service order 1 - 379645R93, VALVE)

1шт.

8

9410357

PLUG

o-ring boss

1шт.

9

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Boss plug

1шт.

10

16008R1

BALL,1/4" Dia, Steel

1/4" dia steel

1шт.

11

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, Plug

1шт.

12

379901R91

PLUG

pilot valve

1шт.

13

382127R1

WASHER

SPACER, check valve

1шт.

14

379810R1

SEAL

check ball seat

1шт.

15

382126R1

NO LONGER SERVICED

VALVE, check

1шт.

16

382125R1

SPRING

pressure check

1шт.

379793R91

O-RING

PACKAGE, pilot valve service, composed of, (1) O-RING 369384R1, (1) O-RING 379795R1, (1) SEAL 379810R1, (2) SEAL 387088R1

1шт.
