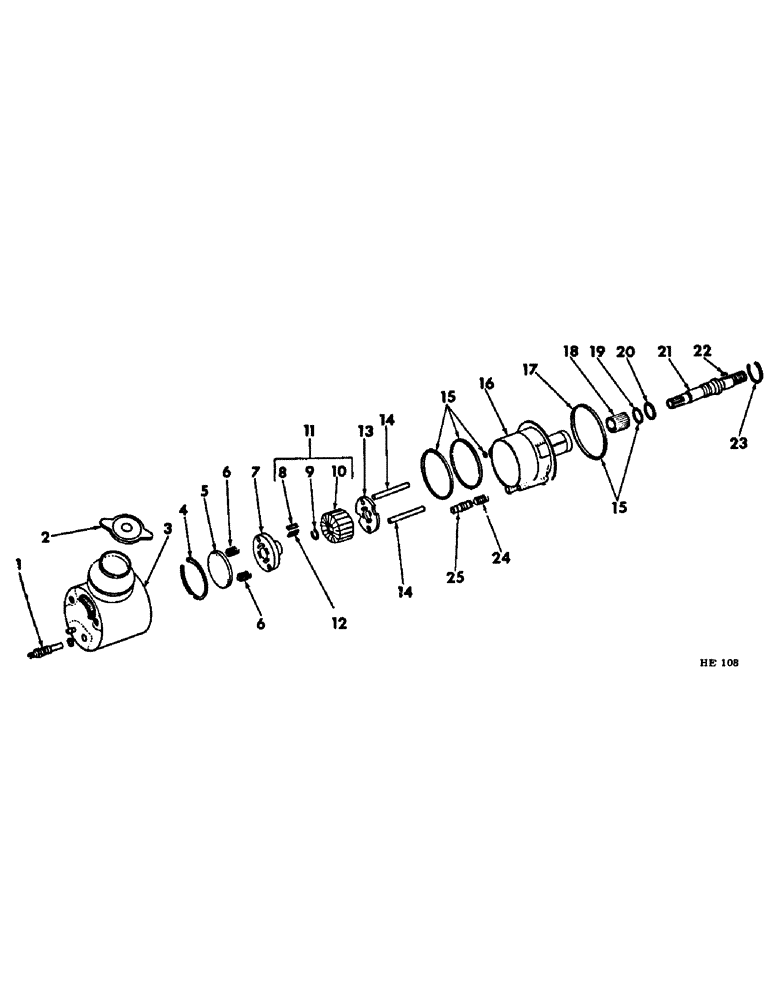

Запчасти Case IH 375 (J-04) - STEERING MECHANISM, POWER STEERING HYDRAULIC PUMP Steering Mechanism

596028R91

PUMP, power steering hyd (composed of all parts listed below)

1шт.

1

592689R91

ORIFICE & FITTING, discharge port

1шт.

2

594879R91

CAP, fluid reservoir

1шт.

3

594885R91

RESERVOIR, hyd pump

1шт.

4

868128R1

RING, end plate retaining

1шт.

5

868125R1

PLATE, pump end

1шт.

6

868132R1

SPRING, pressure plate

2шт.

7

868126R1

PLATE, pressure

1шт.

8

VANES (NSS) (for service order 1 - 594884R91, KIT)

1шт.

9

21303R1

RING, shaft brg retaining

1шт.

10

ROTOR (NSS) (for service order 1 - 594884R91, KIT)

1шт.

11

594884R91

KIT, ring rotor & vanes service

1шт.

12

868136R91

KIT, rotor vane service

1шт.

13

868127R1

PLATE, thrust

1шт.

14

868124R1

PIN, pump ring dowel

2шт.

15

594886R91

KIT, pump seal service

1шт.

16

596228R91

HOUSING, steering pump (includes 1 - 260678C91, BEARING & 1 - 596564R91, SEAL)

1шт.

17

SEAL, housing oil (NSS) (for service order 1 - 594886R91, KIT)

1шт.

18

260678C91

BEARING ASSY,0.685" ID x 0.812" OD x 0.75"

steering pump

1шт.

19

596564R91

SEAL, drive shaft

1шт.

20

133214R91

BEARING LOCK NUT

BEARING, drive shaft

1шт.

21

594882R1

SHAFT, pump drive

1шт.

22

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

23

303986C1

RING, SNAP

RING, shaft retaining

1шт.

24

868131R1

FUSE

SPRING, flow control

1шт.

25

596290R91

VALVE, control

1шт.
