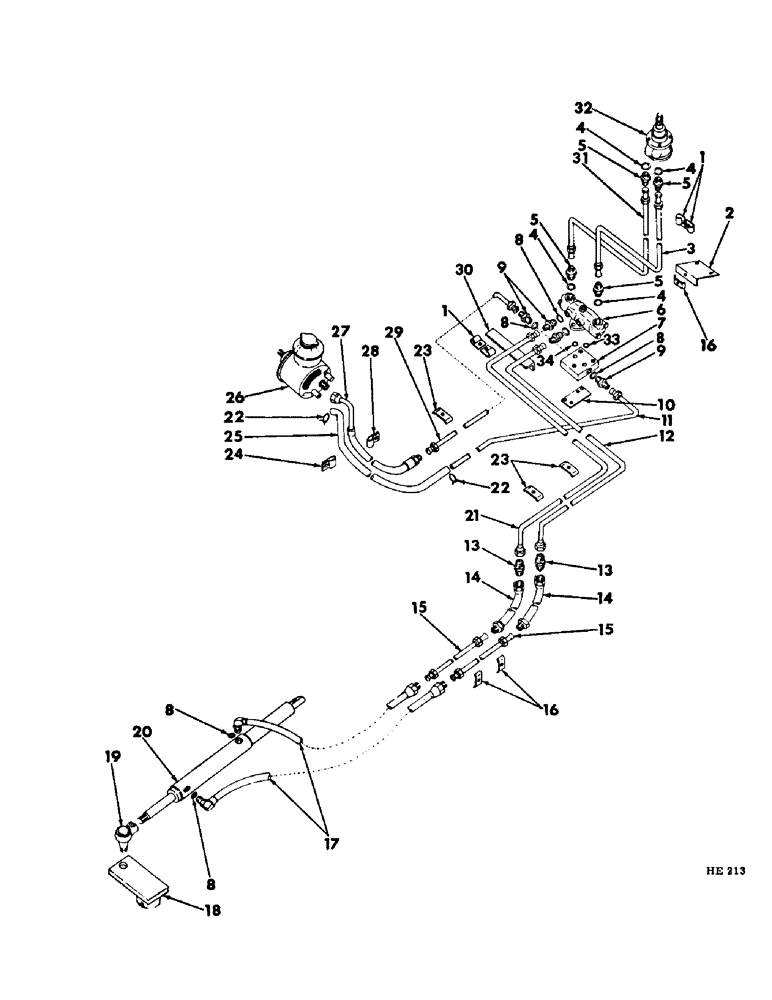

Запчасти Case IH 375 (J-02) - STEERING MECHANISM, POWER STEERING HYDRAULIC LINES Steering Mechanism
№
Артикул
Название
Примечание
Количество
1
140569
DECAL
CLAMP, hyd tube
4шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
5/16 x 5/8"
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
2
596006R2
SUPPORT, hyd tube clamp
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
5/16 x 5/8"
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
3
595310R11
TUBE, hand pump to pilot valve front
1шт.
5
587639R1
HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring
UNION, pump & valve tube
4шт.
6
379645R93
VALVE
power steering pilot (for component parts w/this assembly refer to "POWER STEERING PILOT VALVE" in section "J" of this parts catalog)
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8 x 1-1/4"
1шт.
180130
BOLT,Hex, 3/8" - 16 x 2", Gr 5
3/8 x 2"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
3шт.
7
633383R1
BLOCK, pilot valve mounting
1шт.
8
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, connectors
6шт.
9
9410202
HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring
CONNECTOR, pilot valve & block
4шт.
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, valve & block
4шт.
10
595312R1
STRIP, pilot valve mounting block
1шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2 x 1-1/4"
2шт.
20601R1
WASHER
17/32 x 1-1/4 x 11 ga
4шт.
120384
WASHER,1/2"
LOCK, 1/2"
2шт.
11
595314R11
TUBE, power steering return
1шт.
12
595321R11
TUBE, valve to wheel hose rear
1шт.
13
9402786
UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree
9/16" valve to jumper tube
2шт.
14
611937R91
HOSE ASSY.
HOSE, tail wheel jumper
2шт.
15
595322R11
TUBE, tail wheel jumper hose to power steering cyl hose 0.375" OD, 39.5, 12.25" Length
2шт.
16
614323R2
CLAMP
wheel jumper hose tube
2шт.
180021
SPRING
1/4 x 7/8"
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
17
595323R91
HOSE, power steering hyd cyl
2шт.
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, hyd cylinder hose
2шт.
18
595324R91
ARM, power steering guide wheel
1шт.
433156
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
1/2 x 4-1/2"
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
19
378817R91
BALL JOINT
END, power steering hyd cyl
1шт.
181646
BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5
3/8 - NF x 1-3/4"
1шт.
427646
SLOTTED NUT,7/8"-14, G5
NUT, 7/8" - NF slt-hex
1шт.
21715R1
WASHER
29/32 x 1-3/4 x 11 ga
1шт.
120369
NUT,3/8"-24, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
103387
COTTER PIN,1/8" x 1 1/2"
Pin, Split (Cotter), 1/8" x 1 1/2"
1шт.
595129R1
BUSHING
SPACER, cylinder end
1шт.
20
378580R91
STEERING CYLINDER
CYLINDER, power steering hyd (for component parts of this assembly refer to "POWER STEERING HYDRAULIC CYLNDER" in section "J" of this parts catalog)
1шт.
P14608
AXLE PIN
PIN, 3/4 x 2-3/4" std-hd-dld
1шт.
520175R1
CLIP
C-PIN, quick-attachable
1шт.
21
595320R11
TUBE, valve to jumper hose front
1шт.
22
317683R1
HOSE CLAMP,#10, 5/8", Spring
CLAMP, return hose end
2шт.
23
614323R2
CLAMP
tubes
3шт.
86505867
BOLT,Hex, 1/4" - 20 x 1", Gr 5
3шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
3шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
24
515-21159
CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type
No. 10 closed return hose
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
25
594555R1
HOSE, power steering return
1шт.
26
596028R91
PUMP, power steering hyd (for component parts of this assembly refer to "POWER STEERING HYDRAULIC PUMP" in section "J" of this parts catalog)
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1"
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
27
594554R91
HOSE, power steering pressure
1шт.
28
299566C1
CLAMP
No. 12 closed pressure hose
1шт.
29
595313R11
TUBE, high pressure
1шт.
30
596007R1
ANGLE, hyd tube clamp
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
31
595311R11
TUBE, pump to valve rear
1шт.
32
378578R96
HYDRAULIC STEERING
PUMP, power steering hand (for component parts of this assembly refer to "POWER STEERING HAND PUMP" in section "J" of this parts catalog)
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
4шт.
33
369908R1
O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro
pilot valve outer small
1шт.
34
362796R1
O-RING,0.924" ID x 0.103" Width
pilot valve outer large
1шт.
Выбрано товаров: 75
