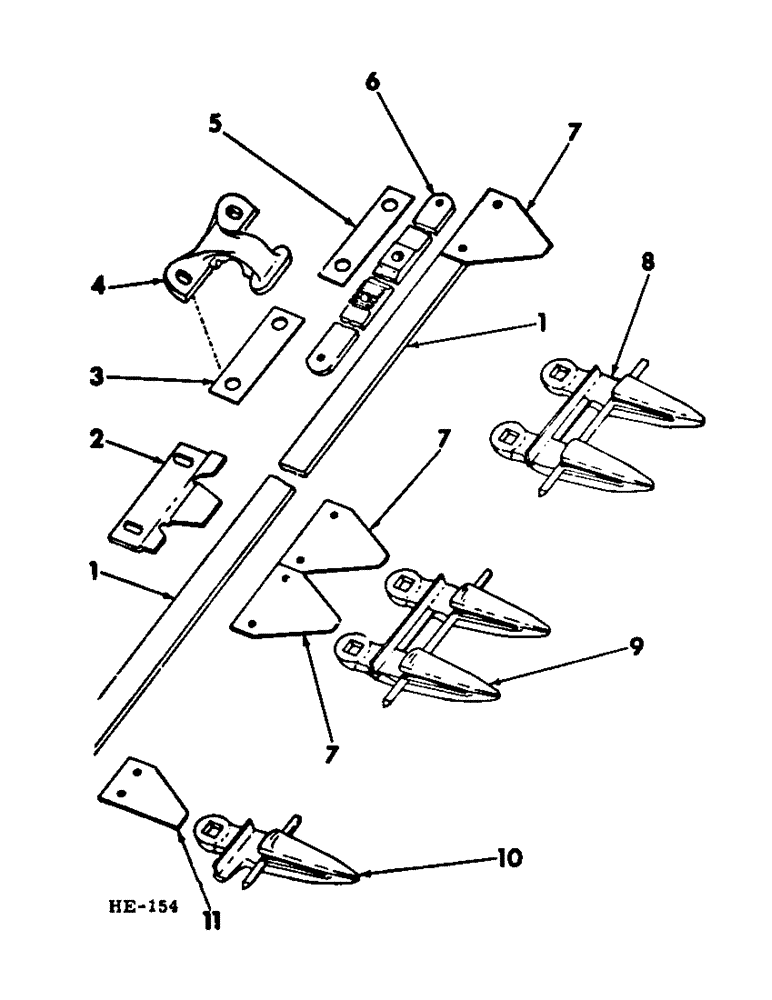

Запчасти Case IH 375 (Q-54) - PLATFORMS, PLATFORM KNIFE Platforms

1

595649R92

KNIFE

1шт.

KNIFE, 10 ft dual auger & pea platform cr-pltd underserrated section (regular) composed of, (NSS) (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (70) RIVET 19869R1, (10) RIVET 104085, (1) SECTION 595658R1, (6) SECTION 823711C1, (35) SECTION 457607R1

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

595964R92

KNIFE

1шт.

KNIFE, 10 ft dual auger & pea platform cr-pltd smooth section (special) composed of, (NSS) (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104085, (70) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823712C1, (35) SECTION 457605R1

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

595650R92

KNIFE

12 ft platform cr-pltd underserrated section (regular) composed of, (NSS) (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104085, (86) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823711C1, (43) SECTION 457607R1

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

595965R92

KNIFE, 12 ft platform cr-pltd smooth section (special) composed of, (NSS) (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104085, (102) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823711C1, (51) SECTION 457607R1

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/8" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

595966R92

KNIFE

1шт.

KNIFE, 14 ft single & dual platform cr-pltd smooth section (special) composed of, (NSS) (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104085, (102) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823712R1, (51) SECTION 457605R1

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

596320R92

KNIFE

1шт.

KNIFE, 14 ft single & dual auger platform cr-pltd overserrated section (special) composed of, (NSS) (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104035, (100) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823713C1, (51) SECTION 596321R1

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

595652R92

KNIFE

16 ft platform cr-pltd underserrated section (regular) composed of, (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104085, (118) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823711C1, (59) SECTION 457607R1

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

1

595967R92

KNIFE

16 ft dual auger platform cr-pltd smooth section (special) composed of, (1) BAR, (1) SUPPORT 823710C1, (2) RIVET 104086, (2) RIVET 12712R1, (10) RIVET 104085, (118) RIVET 19869R1, (1) SECTION 595658R1, (6) SECTION 823712C1, (59) SECTION 457605R1

1шт.

455000

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4" type 8

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

613842R2

GUIDE

HOLDER, platform knife (8 used w/10 ft dual auger & pea Windrower platform - 10 used w/12 ft platform - 12 used w/14 ft platform & 15 used w/16 ft platform)

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16" type 5 No. 3 plow (2 used per holder)

1шт.

271501

SOCKET

NUT, 7/16" (1 used per bolt)

1шт.

3

595213R1

STRIP

SHIM, knife high arch holder

2шт.

4

595648R1

GUIDE

HOLDER, knife high arch

2шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2" type 1 crg

1шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

BOLT, 7/16 x 1-21/32" type 5 No. 3 plow

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

5

595755R1

LOCKING PLATE

knife drive joint to knife bolt

1шт.

6

595657R1

END, knife joint (for use on machines built prior to 1969 season)

1шт.

21292R1

RIVET,Oval Hd, .22" x 1 1/16"

No. 5 x 1/16" sm-ov-hd

2шт.

21293R1

RIVET,Oval Hd, .22" x 15/16"

No. 5 x 15/16" sm-ov-hd

12шт.

6

823710C1

HEAD (CYLINDER)

SUPPORT, knife joint (for use on machines built 1969 season & since)

1шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

1/4 x 1-1/8" sm-bt-hd solid

2шт.

12712R1

RIVET

No. 5-1/2" x 15/16" sm-ov-hd

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 x 1" sm-bt-hd

10шт.

7

457605R1

KNIFE SECTION

SECTION, knife cr-pltd smooth (special) (35 used w/10 ft platform - 43 w/12 ft platform - 51 used w/14 ft platform & 59 used w/16 ft platform)

1шт.

19869R1

RIVET, No. 5-1/2 x 9/16" sm-ov-hd (per section) Oval Hd, .211" x 9/16"

1шт.

12712R1

RIVET

No. 5 x 15/16" sm-ov-hd

2шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

No. 5 x 1-1/16" sm-ov-hd

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 x 1" sm-bt-hd

10шт.

7

457607R1

KNIFE SECTION

SECTION, knife cr-pltd underserrated (regular) 35 used w/10 ft platform - 43 used w/12 ft platform - 51 used w/14 ft platform & 59 used w/16 ft platform)

1шт.

19869R1

RIVET, No. 5-1/2" x 9/16" sm-ov-hd (2 per section) Oval Hd, .211" x 9/16"

1шт.

12712R1

RIVET

No. 5 x 15/16" sm-ov-hd

2шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

No. 5 x 1-1/16" sm-ov-hd

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 x 1" sm-bt-hd

10шт.

7

596321R1

KNIFE SECTION

SECTION, knife cr-pltd overserrated (special) (51 used w/14 ft platform)

1шт.

19869R1

RIVET, No. 5-1/2 x 9/16" sm-ov-hd (2 per section) Oval Hd, .211" x 9/16"

1шт.

12712R1

RIVET

No. 5 x 15/16" sm-ov-hd

1шт.

104086

RIVET,But Hd, 1/4" x 1 1/8"

No. 1/4 x 1-1/8" sm-ov-hd

2шт.

87013867

RIVET,But Hd, 1/4" x 1"

1/4 x 1" sm-bt-hd

10шт.

7

823711C1

NO LONGER SERVICED

SECTION, knife cr-pltd underserrated (regular) (for use on machines built 1969 season & since)

6шт.

7

823713C1

KNIFE SECTION

SECTION, knife cr-pltd overserrated (special) (for use on machines built 1969 season & since)

6шт.

7

823712C1

KNIFE SECTION

SECTION, knife cr-pltd smooth (special) (for use on machines built 1969 season & since)

6шт.

8

613839R1

GUARD

double knife LH

4шт.

18698R1

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 2

BOLT, 7/16 x 2" crg

1шт.

592723R1

BOLT (SPREADER),#3, 7/16" - 14 x 1 21/32"

BOLT, 7/16 x 1-21/32" type 5 No. 3 plow

3шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16" type 5 No. 3 plow

4шт.

271501

SOCKET

NUT, 7/16"

8шт.

9

613838R1

GUARD

knife double (16 used on 10 ft dual auger & pea Windrower platform - 20 used 10 12 ft platform - 24 used on 14 ft platform - 28 used on 16 ft platform)

1шт.

592722R1

BOLT,7/16"-14 x 1 5/16", G5

7/16 x 1-5/16" type 5 No. 3 plow (16 used on 10 ft platform - 20 used on 12 ft platform - 24 used on 14 ft platform & 28 used on 16 ft platform)

1шт.

592724R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 9/16", Gr 5

BOLT, 7/16 x 1-9/16" type 5 No. 3 plow (16 used on 10 ft platform - 20 used on 12 ft platform - 24 used on 14 ft platform & 28 used on 16 ft platform)

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16" (1 used per bolt)

1шт.

10

613841R1

GUARD

knife single RH

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2" type 1 crg

1шт.

271501

SOCKET

NUT, 7/16"

1шт.

10

613840R1

GUARD

knife single LH

1шт.

11

595658R1

KNIFE SECTION

SECTION, knife cr-pltd smooth half RH

1шт.

21294R1

RIVET,Oval Hd, .22" x 9/16"

No. 5 x 9/16" sm-ov-hd

2шт.
