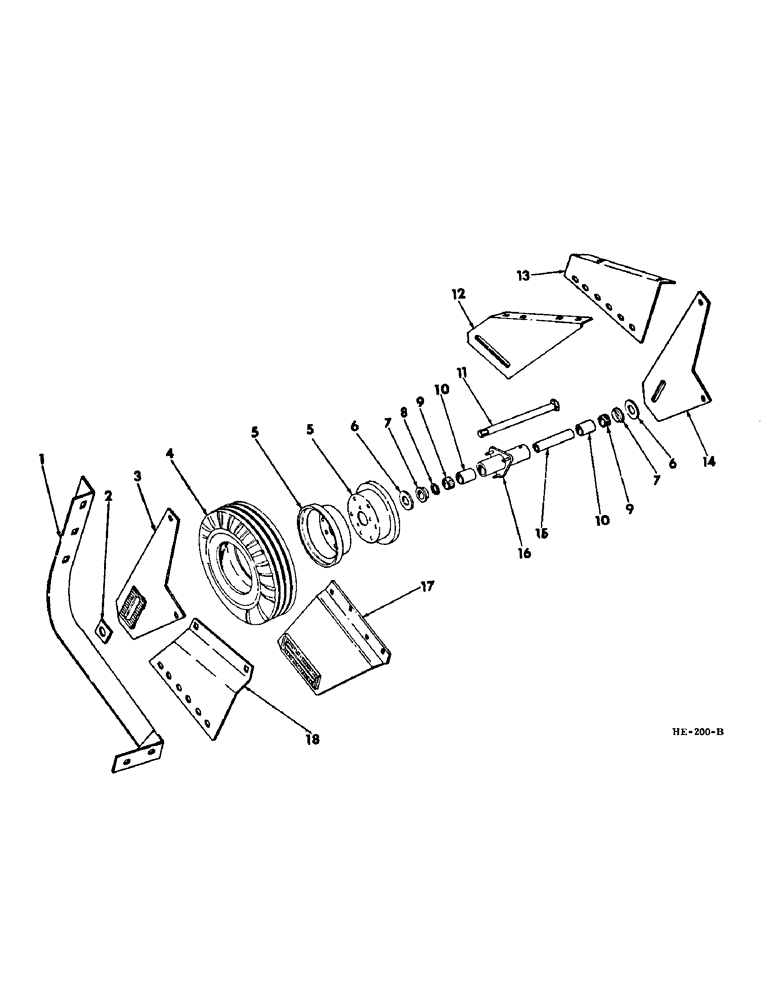

Запчасти Case IH 375 (N-02) - PARTS ACCESSORIES AND ATTACHMENTS, PLATFORM GAUGE WHEEL Accessories & Attachments

1

596217R11

SUPPORT, platform gauge wheel LH (shown) (single auger platform)

1шт.

1

596218R11

SUPPORT, platform gauge wheel RH (single auger platform)

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4" crg

10шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

594414R1

WASHER

WASHER, axle adjuster (single auger platform & 10 ft pea Windrower platform)

4шт.

3

596220R91

BRACKET, gauge wheel RH (single auger platform)

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1"

4шт.

271501

SOCKET

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

4

TIRE & TUBE, 5.30/4.50 - 6 ply industrial

1шт.

5

596310R1

WHEEL

DISC, wheel inner

2шт.

5

596311R1

WHEEL

DISC, wheel outer w/valve hole

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

6

619505R1

WASHER

wheel hub special

4шт.

7

617383R1

BUSHING,26.19mm ID x 35.13mm OD x 6.35mm L

RETAINER, wheel hub brg

4шт.

8

617381R1

WASHER

wheel hub special

2шт.

9

561478R91

BEARING, ROLLER,1" ID x 1.375" OD x 1"

BEARING, wheel hub

4шт.

10

617382R1

SPACER

wheel hub

4шт.

11

21702R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

3/4 x 8-1/2" wheel axle (for use on single auger platform & 10 ft pea Windrower platform)

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

11

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

3/4 x 7-1/2" wheel axle (for use on dual auger platform)

2шт.

280954

NUT,3/4"-10, G5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

12

823385C1

SUPPORT, gauge wheel inner LH (regular for 10 ft pea Windrower platform)

1шт.

12

823386C1

SUPPORT, gauge wheel inner RH (regular for 10 ft pea Windrower platform)

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

13

609811R1

BRACKET, gauge wheel mounting inner LH (for use on dual auger platform)

1шт.

13

609812R1

BRACKET, gauge wheel mounting inner RH (for use on dual auger platform)

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

14

596219R91

BRACKET, gauge wheel LH (for use on single auger platform)

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1"

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

15

617387R1

SLEEVE,19.3mm ID x 25.4mm OD x 146.05mm L

wheel hub support

2шт.

16

617384R91

HUB

gauge wheel (includes 3 - 607140R1, STUD & 3 - 607141R1, NUT)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

607140R1

BOLT,3/8" - 24 x 7/8", Steel

STUD, wheel hub

6шт.

607141R1

NUT

wheel hub

6шт.

17

823381C1

SUPPORT, gauge wheel outer LH (regular for 10 ft pea Windrower platform)

1шт.

17

823382C1

SUPPORT, gauge wheel outer RH (regular for 10 ft pea Windrower platform)

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

271501

SOCKET

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

18

609815R1

SECTION, gauge wheel mounting outer LH (for use on dual auger platform)

1шт.

18

609816R1

SECTION, gauge wheel mounting outer RH (for use on dual auger platform)

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

3шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4" crg (RH only)

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.
