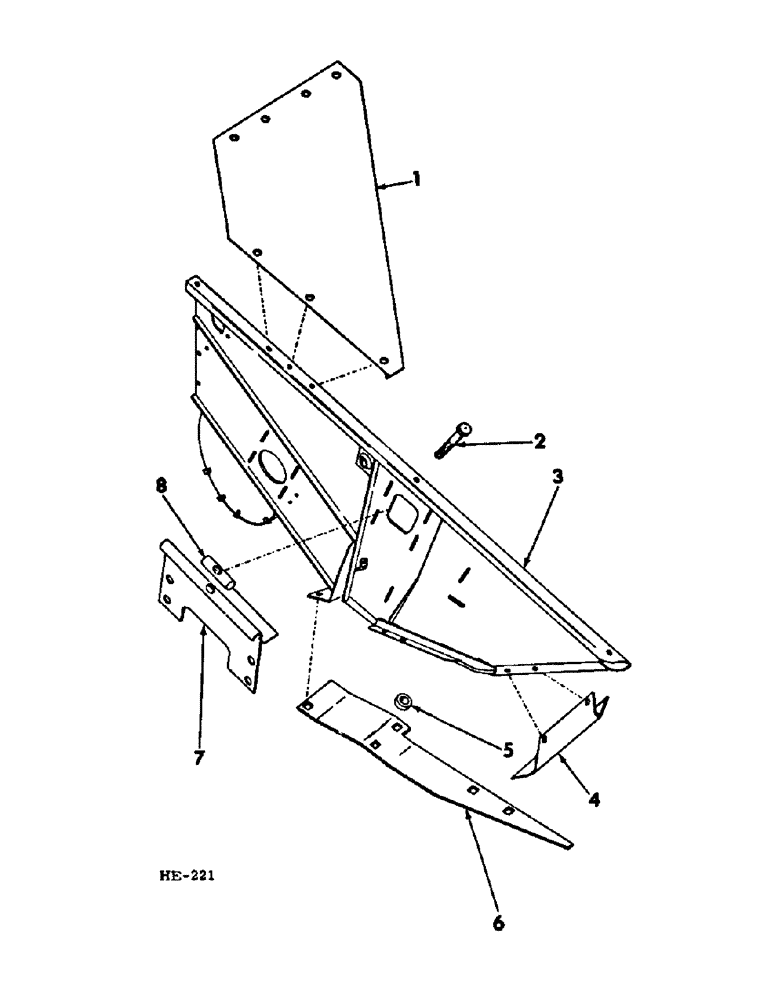

Запчасти Case IH 275 (Q-04) - PLATFORMS, SINGLE AUGER PLATFORM SIDE Platforms

1

596094R1

GUSSET, side upper tie LH

1шт.

1

596095R1

GUSSET, side upper tie RH (SHOWN)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

11шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

11шт.

2

596096R2

BOLT, pick-up reel adjusting

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

3

596079R12

SIDE, platform LH

1шт.

3

596080R11

SIDE, platform RH (SHOWN)

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

10шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

3шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4" (LH only)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

3шт.

607393R1

CARRIAGE BOLT,7/16" - 14 x 1", Grade 5

BOLT, 7/16 x 1" crg

3шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16 x 1" No. 3 plow (RH)

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

10шт.

120376

NUT,5/16"-18, G5

4шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

598032R1

DEFLECTOR, front crop LH

1шт.

4

596011R2

DEFLECTOR, front crop RH (SHOWN)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

SA2344

SPACER,3/8" Pipe x 7/16"

platform sole

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2" type 1 crg

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

6

595631R2

SOLE

platform side LH

1шт.

6

595632R2

SOLE

platform side RH (SHOWN)

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1" No. 3 plow

2шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8 x 1-1/4" No. 3 plow (LH)

1шт.

607393R1

CARRIAGE BOLT,7/16" - 14 x 1", Grade 5

BOLT, 7/16 x 1" crg

3шт.

609120R1

BOLT,Short NK, 7/16"-14 x 1 1/8", G5. Full Th

7/16 x 1-1/8" crg (LH)

2шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

7шт.

7

596012R1

BRACKET, reel adjusting LH

1шт.

7

598037R1

BRACKET, reel adjusting RH (SHOWN)

1шт.

8

596013R1

BAR, pick-up reel adjusting

2шт.
