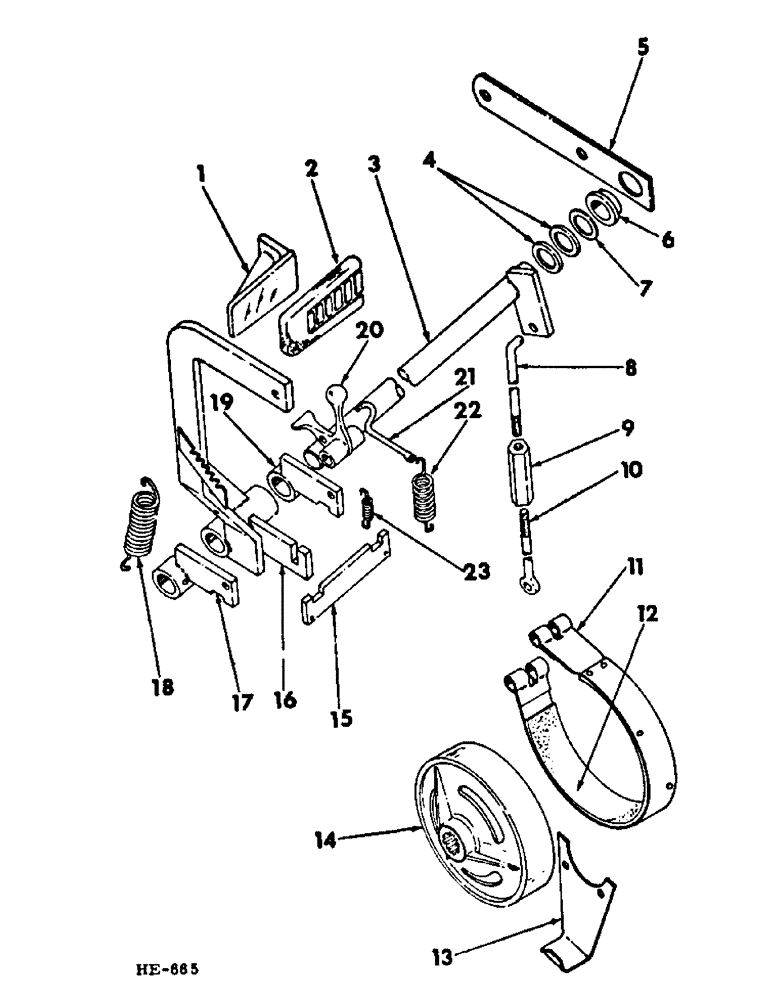

Запчасти Case IH 275 (H-17) - CONTROLS, BRAKE CONTROL Controls

1

593873R1

PEDAL

brake

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

863426R1

PAD

brake pedal

1шт.

3

596375R1

ROCKSHAFT, brake control LH

1шт.

3

596376R1

ROCKSHAFT, brake control RH

1шт.

4

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga control rockshaft RH

1шт.

5

595274R11

SUPPORT, brake rockshaft control outer (includes 1 - 595252R1, BUSHING)

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

595252R1

BUSHING

rockshaft outer support

2шт.

7

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga control rockshaft RH

2шт.

8

596379R1

ROD, brake control linkage upper

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

9

613596R1

TURNBUCKLE, brake control linkage

2шт.

10

596380R1

BOLT, brake control linkage lower

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

11

595299R93

BAND

wheel brake (includes 1 - 591951R12, LINING PACKAGE)

2шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 rod-end-dld

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

12

591951R12

PADDING

PACKAGE, brake lining service (includes 8 - 53795V & 4 - 21406H, RIVETS)

2шт.

53795V

RIVET,Csk Hd, 3/16" x 5/16"

3/16 x 5/16" csk-hd tubular

16шт.

21406H

RIVET,Csk Hd, 3/16" x 3/8"

3/16 x 3/8" csk-hd tubular

8шт.

13

595210R1

GUARD, brake band reinforcement

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

595211R1

DRUM, brake

2шт.

758318C

RING, drum retaining

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

15

596385R1

BAR, brake equalizer

1шт.

16

596370R1

ARM, brake control

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

Q3536

PIN

3/8 x 2-3/8" std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

17

596381R1

ARM, brake equalizer LH

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

1шт.

18

510029R1

SPRING

brake control arm return

1шт.

19

596382R1

ARM, brake equalizer RH

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

1шт.

20

595242R1

PAWL, brake pedal lk

1шт.

C351

AXLE PIN

PIN, 1/2 x 2-3/8" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21

595243R1

ROD, lock pawl tightener

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

103361

PIN, SPLIT (COTTER)

C-PIN, 1/16 x 1/2"

1шт.

22

EA66

SPRING, lock pawl tightener

1шт.

U5357

HEADED PIN,3/8" x 2 5/8"

PIN, 3/8 x 2-5/8" std-hd-dld

1шт.

364002R1

SPACER,3/8" Pipe x 1"

tightener spg pin

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

23

384201R1

VALVE SPRING

SPRING, equalizer bar

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
