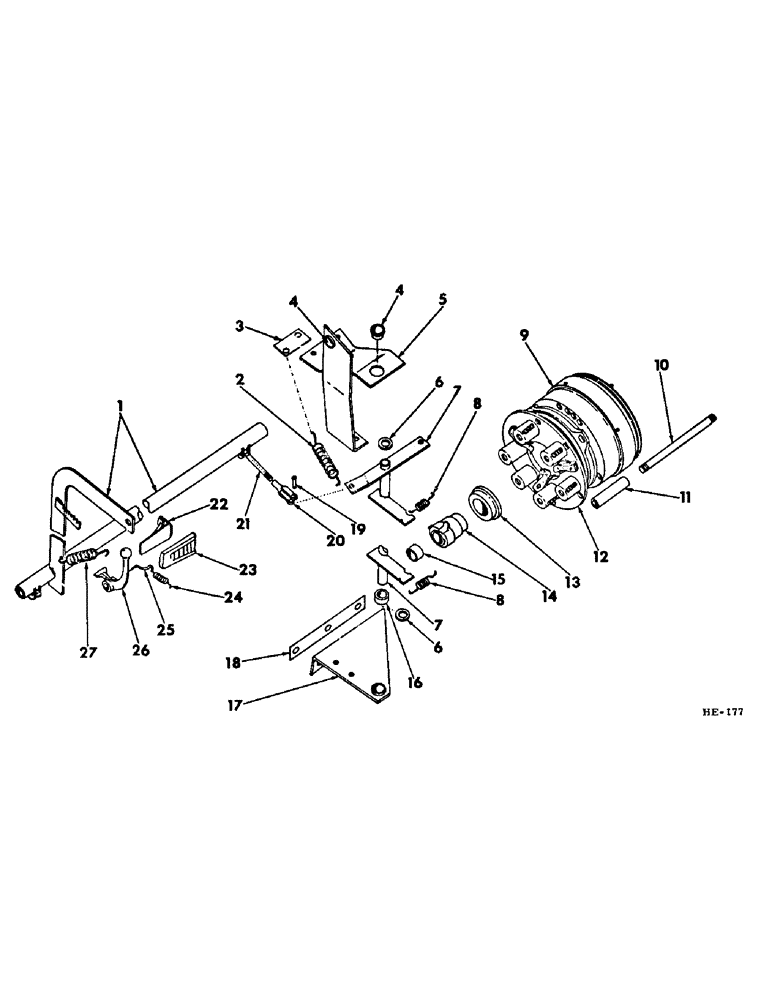

Запчасти Case IH 275 (H-10) - CONTROLS, PLANETARY TRANSMISSION CLUTCH CONTROL Controls

1

595236R91

ARM, clutch control

1шт.

271293

PULLEY

FITTING, 5/16" - NF lub

1шт.

2

510029R1

SPRING

throwout brg return

2шт.

3

595263R1

STRIP, brg return spg anchor

2шт.

4

595252R1

BUSHING

support

6шт.

5

595246R91

SUPPORT, clutch control arm LH (includes 2 - 595252R1, BUSHING)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

595247R91

SUPPORT, clutch control arm RH (includes 2 - 595252R1, BUSHING) (SHOWN)

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

21147R1

SNAP RING,#112, Ext, Crescent

Ring, Snap, , rockshaft (as a shim) #112, Ext, Crescent

1шт.

7

595256R92

ROCKSHAFT, clutch throwout LH

1шт.

7

595257R92

ROCKSHAFT, clutch throwout RH (SHOWN)

1шт.

8

384201R1

VALVE SPRING

SPRING, clutch throwout brg release

4шт.

9

TRANSMISSION, planetary (for component parts of this assembly refer to "PLANETARY TRANSMISSION" in section "B" of this parts catalog)

1шт.

10

595175R1

STUD, clutch mounting

12шт.

120368

NUT,5/16"-24, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

11

595174R1

BUSHING, transmission clutch outer (for use on 275 Windrower built prior to machine serial No. 2554)

12шт.

11

823005C1

BUSHING

transmission clutch (for use on 275 Windrower built w/machine serial No. 2554 & since)

12шт.

12

PLATE, clutch pressure (for component parts of this assembly refer to "PLANETARY TRANSMISSION CLUTCH" in section "B" of this parts catalog)

2шт.

13

595177R92

THRUST BEARING

clutch throwout

2шт.

14

595176R21

CARRIER

SLEEVE, clutch throwout brg (includes 1 - 523092R1, BUSHING)

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

15

523092R1

BUSHING,28.63mm ID x 33.45mm OD x 63.5mm L

throwout brg sleeve

2шт.

16

595262R1

SPACER, throwout rockshaft

2шт.

17

595253R11

SUPPORT, rockshaft bottom LH (includes 1 - 595252R1, BUSHING)

1шт.

17

595254R11

SUPPORT, rockshaft bottom RH (includes 1 - 595252R1, BUSHING) (SHOWN)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

3шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

3шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

18

595255R1

STRIP, bottom support shim

1шт.

19

Q3536

PIN

3/8 x 2-3/8" clutch control arm stop std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, connecting stud

2шт.

595245R1

PIN, 3/8 x 1-11/32" rod-end

2шт.

21

595244R1

STUD, clutch control connecting

2шт.

120369

NUT,3/8"-24, G5

2шт.

22

593873R1

PEDAL

clutch

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

23

863426R1

PAD

clutch pedal

1шт.

24

EA66

SPRING, lock pawl tightener

1шт.

U5357

HEADED PIN,3/8" x 2 5/8"

PIN, 3/8 x 2-5/8" std-hd-dld

1шт.

25

596016R1

ROD, lock pawl tightener

1шт.

21784R1

WASHER

17/64 x 1/2 x 16 ga

1шт.

103361

PIN, SPLIT (COTTER)

C-PIN, 1/16 x 1/2"

1шт.

26

595242R1

PAWL, clutch pedal lock

1шт.

C-351

PIN, 1/2 x 2-3/8" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

27

510029R1

SPRING

control arm return

1шт.
