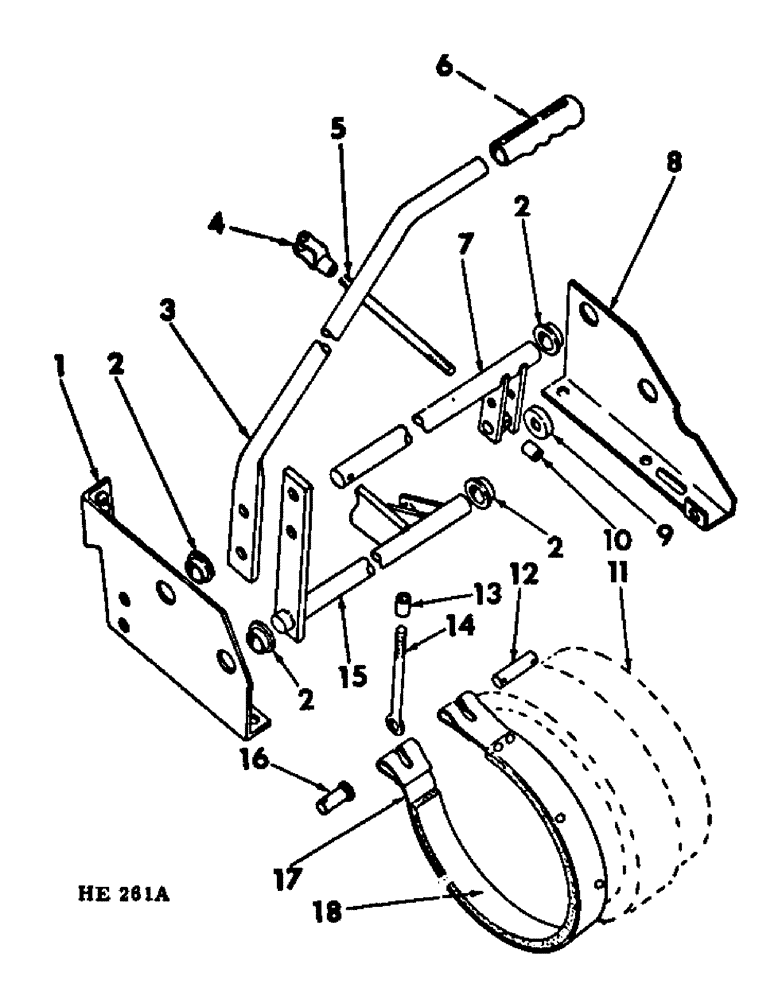

Запчасти Case IH 275 (H-08) - CONTROLS, PLANETARY STEERING CONTROL Controls

1

595284R21

BRACKET, rockshaft center RH (includes 2-595252R1, BUSHING) (shown)

1шт.

1

595283R21

BRACKET, rockshaft center LH (includes 2-595252R1, BUSHING)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

595252R1

BUSHING

rockshaft support

8шт.

3

595282R1

ROD, steering lever RH (shown)

1шт.

3

595281R1

ROD, steering lever LH

1шт.

180149

LOCK SCREW,Hex, 7/16" - 14 x 1 1/2", Gr 5

BOLT, 7/16 x 1-1/2"

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

4

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, connecting stud

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32" rod-end-dld

2шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

5

595297R1

STUD, throw-out rockshaft connecting

2шт.

120369

NUT,3/8"-24, G5

6шт.

6

595231R1

GRIP, steering lever

2шт.

7

595294R91

ROCKSHAFT, steering front

2шт.

614451R1

WASHER

1-1/32 x 1-3/4 x 11 ga

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

8

595286R11

SUPPORT, steering rockshaft outer RH (includes 2-595252R1, BUSHING) (shown)

1шт.

8

595285R11

SUPPORT, steering rockshaft outer LH (includes 2-595252R1, BUSHING)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

611928R91

BALL BEARING,13 mm ID x 40 mm OD x 18 mm

front rockshaft cam follower

2шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

603047R1

SPACER

connecting stud

2шт.

11

TRANSMISSION, planetary (for component parts of this assembly, refer to "PLANETARY TRANSMISSION" in section "B" of this catalog)

2шт.

12

595303R1

PIN, steering & reverse brake band connecting

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

13

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

connecting bolt

2шт.

14

611740R1

BOLT, reverse band connecting

2шт.

120369

NUT,3/8"-24, G5

4шт.

15

595289R91

ROCKSHAFT, steering control RH (shown)

1шт.

15

595288R91

ROCKSHAFT, steering control LH

1шт.

16

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32" rod-end-dld brake band connecting

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

17

595299R93

BAND

steering & reverse (includes 591951R12, LINING PACKAGE)

2шт.

18

591951R12

PADDING

PACKAGE, steering & reverse band lining service (includes 4-21406H & 8-53795V, RIVETS)

1шт.

53795V

RIVET,Csk Hd, 3/16" x 5/16"

3/16 x 5/16" csk-hd tubular brass

16шт.

21406H

RIVET,Csk Hd, 3/16" x 3/8"

3/16 x 3/8" csk-hd tubular brass

8шт.
