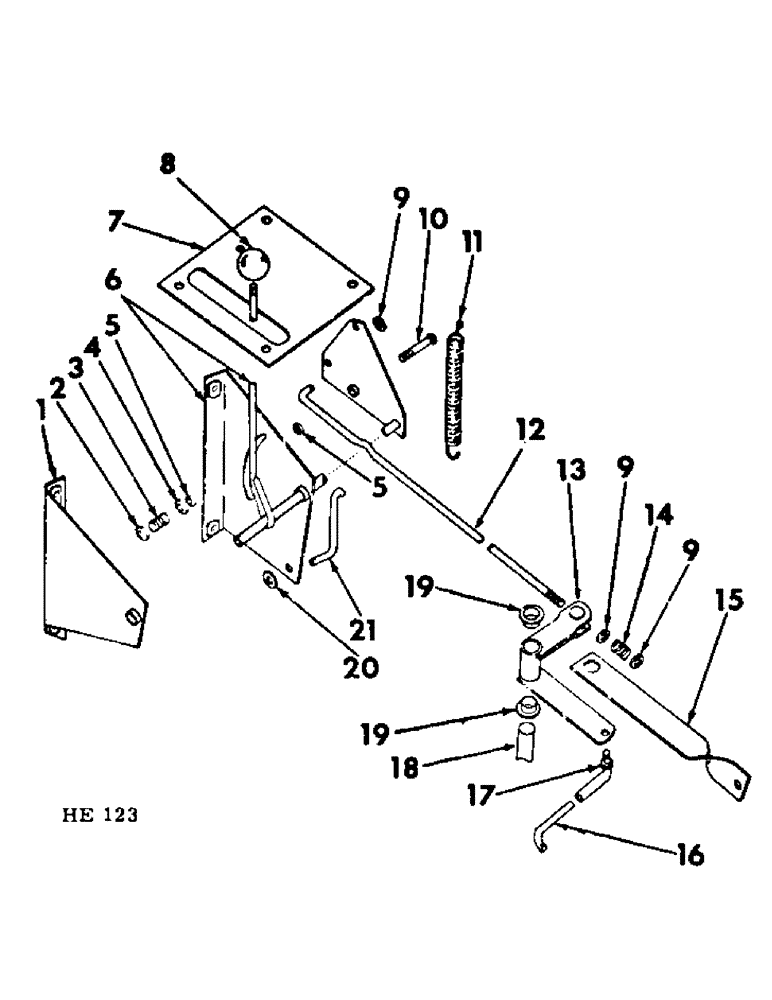

Запчасти Case IH 275 (H-02) - CONTROLS, ENGINE THROTTLE CONTROL Controls

1

595525R12

SUPPORT, throttle control outer

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

20600R1

WASHER

9/32 x 3/4 x 11 ga

1шт.

3

704686R1

SPRING

throttle control

1шт.

4

21549R1

WASHER

9/32 x 3/4 x 18 ga

2шт.

5

704681R2

FRICTION WASHER

throttle control friction

2шт.

6

595527R93

CONTROL, throttle

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

7

597868R1

COVER, throttle control panel (for use on 275 Windrower when equipped w/gasoline engine, built w/machine serial No. 1501 to machine serial No. 4000)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

8

595533R1

KNOB, throttle control

1шт.

9

134238R1

WASHER

11/32 x 1 x 16 ga

3шт.

10

18633R1

BOLT, 1/4 x 2-1/2" type 1 crg friction washer & spring mounting Short NK, 1/4"-20 x 2 1/2", G2

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

11

595535R1

SPRING

throttle control return

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

12

595536R2

ROD, throttle control connecting front

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

3шт.

120368

NUT,5/16"-24, G5

4шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

13

595538R91

LEVER, throttle control rear

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

14

596322R1

SPRING, front connecting rod compression

1шт.

15

595537R1

BRACE, rear lever support

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

16

595542R1

ROD, throttle control rear

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4" - NF

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.

17

148564

BALL JOINT

JOINT, 1/4" - NF type "A" rear rod

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4" - NF

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

18

595440R91

SUPPORT, engine front LH (refer to "ENGINE AND ENGINE SUPPORT" in section "A" of this catalog)

1шт.

19

292883C1

BUSHING, throttle control rear lever

2шт.

20

21549R1

WASHER

9/32 x 3/4 x 18 ga

1шт.

21

595534R1

ROD, throttle control rear spg

1шт.

21549R1

WASHER

9/32 x 3/4 x 18 ga

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

1шт.
