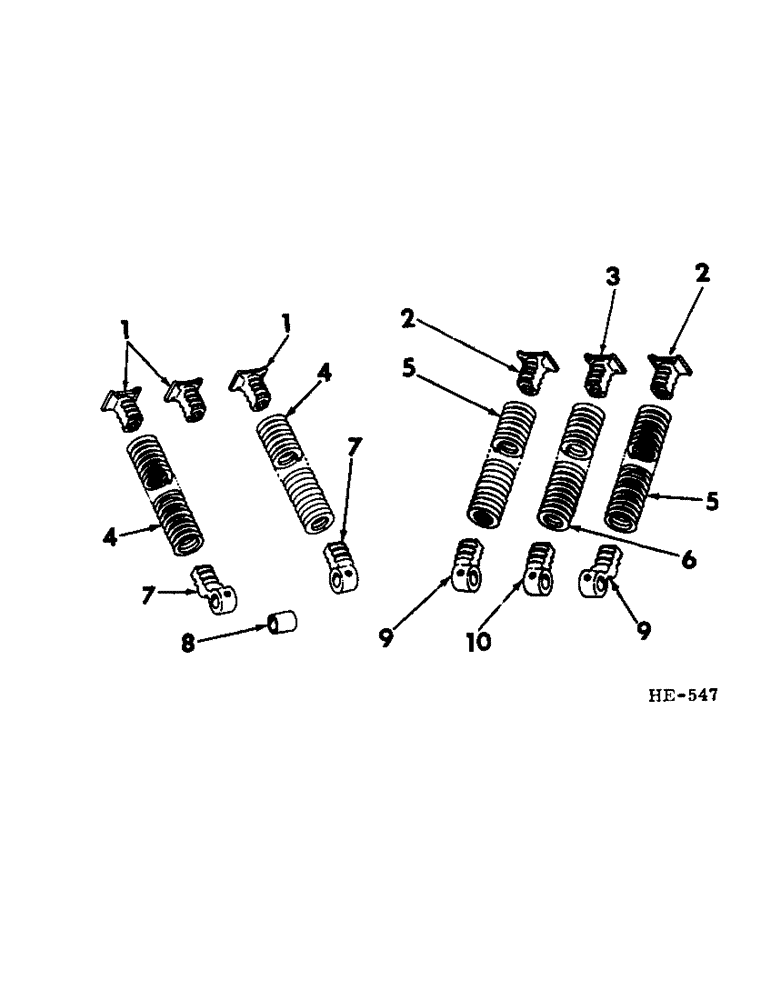

Запчасти Case IH 275 (A-29) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM FLOATATION Chassis, Radiator & Sheet Metal

1

596400R1

PLUG, float spg upper RH

3шт.

2

595678R1

PLUG, spg upper outer & inner LH

2шт.

3

596400R1

PLUG, spg upper centre LH

1шт.

4

596399R2

SPRING

inner & outer RH

2шт.

5

595677R1

SPRING, inner & outer LH

2шт.

6

596399R2

SPRING

float centre LH

1шт.

7

596398R1

PLUG

spg lower inner & outer RH

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" - 45 degree elbow lub

2шт.

8

607783R1

SPACER,1" Pipe x 1850"

lower centre RH

1шт.

9

595674R1

PLUG, spg lower inner & outer LH

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8" - 45 degree elbow lub

2шт.
