Запчасти Case IH 275 (A-24) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM LIFT ARM Chassis, Radiator & Sheet Metal

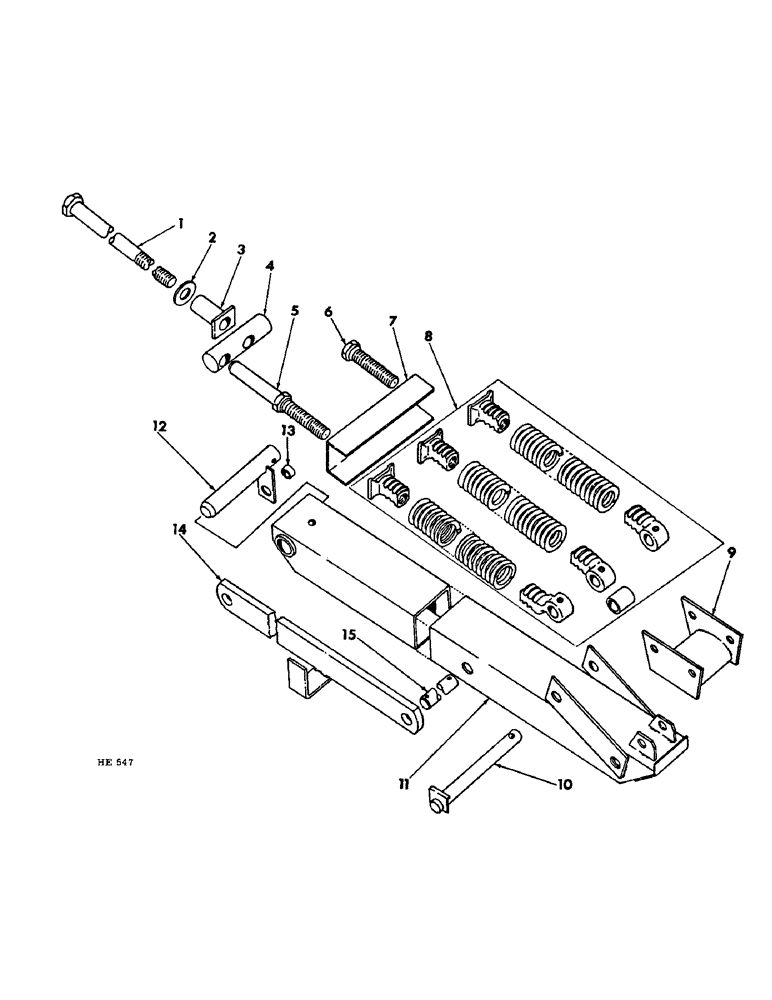

Схема запчастей Case IH 275 - (A-24) - CHASSIS, RADIATOR AND SHEET METAL, PLATFORM LIFT ARM Chassis, Radiator & Sheet Metal

Артикул

Название

Примечание

Количество

1

595683R2

BOLT,Hex, 7/8" - 9 x 19.50mm

7/8 x 19-1/2" spg adjusting centre

2шт.

595685R1

WASHER

spg adjusting bolt

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

2

595685R1

WASHER

centre platform float spg adjusting bolt thrust

2шт.

3

595996R91

ANCHOR, float spg adjusting bolt

2шт.

4

595680R1

BAR, centre platform float spg bolt

2шт.

5

595681R11

STUD

float spg alignment

2шт.

426898

NUT,Jam, 7/8"-9, G5

7/16" jam

2шт.

6

271815

PLUG,Hex, 7/8" - 9 x 2", Gr 8

7/8 x 2" retaining channel

2шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga

2шт.

131047

WASHER,7/8"

7/8"

2шт.

7

595679R1

CHANNEL, float spg retainer

2шт.

413-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

7/16 x 2" , Course threads

2шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga

2шт.

NLS

NO LONGER SERVICED

7/8"

2шт.

8

PLUG AND SPRING, platform floatation (for components parts and machine application of this assembly, refer to "PLATFORM FLOATATION" in section "A" of this parts catalog)

1шт.

9

596138R91

PIVOT, platform lift arm front (for use on machines equipped w/single auger platform)

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1"

8шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 3-1/4"

2шт.

271501

SOCKET

NUT, 7/16"

8шт.

280954

NUT,3/4"-10, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

9

595671R91

PIVOT, platform lift arm front (for use on machines equipped w/dual auger platform or pea Windrower platform) (regular) (for use on machines equipped w/dual auger platform EXCEPT when 16.9 - 24" tires and used)

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 3-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

280954

NUT,3/4"-10, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

9

825449C1

PIVOT, platform lift arm front (special) (for use on machines equipped w/dual auger platform and 16.9 - 24" tires)

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

8шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 3-1/4"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

280954

NUT,3/4"-10, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

10

595675R11

PIN, float spg lower anchor

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

11

595659R93

ARM, platform lift LH

1шт.

11

595660R93

ARM, platform lift RH

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4" NF lub

2шт.

12

595668R11

PIN

platform lift arm

2шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16 x 2"

2шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

13

595670R1

SPACER

lift arm pin

2шт.

14

811125C1

BAR, platform lift lockout safety LH (for use on machines built 1969 season)

1шт.

14

811126C1

BAR, platform lift lockout safety RH (for use on machines built 1969 season)

1шт.

15

287137R1

PIN, platform lift lockout safety (for use on machines built 1969 season)

2шт.

591107R1

COTTER PIN

C-PIN, quick attachable

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

Выбрано товаров: 54
