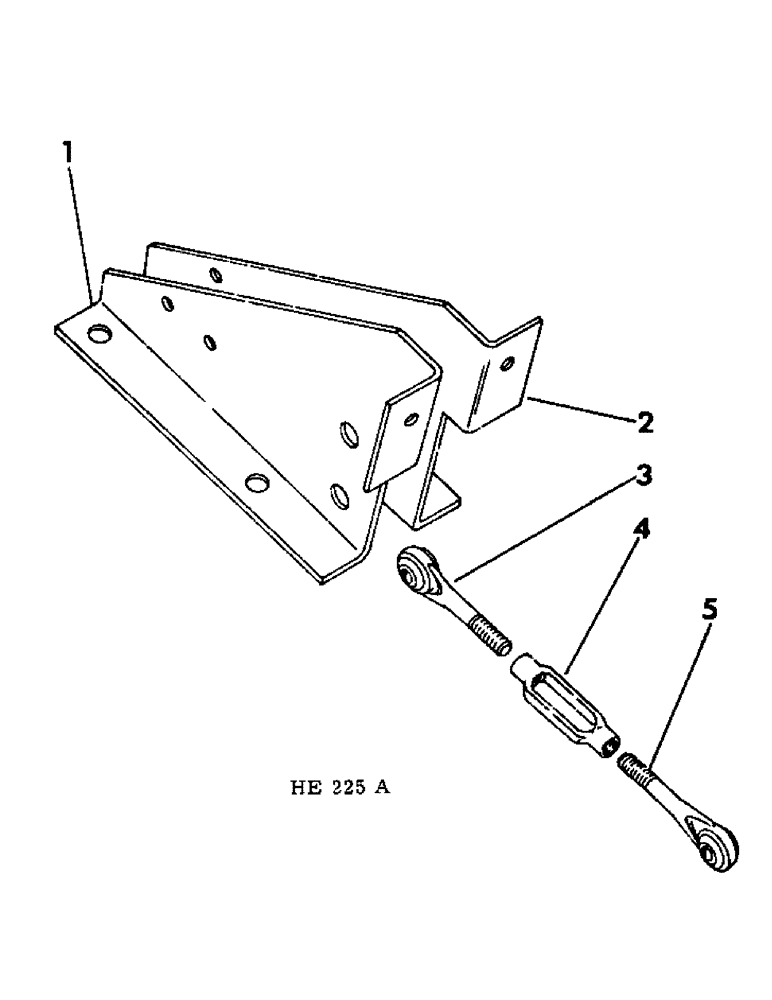

Запчасти Case IH 275 (A-23) - CHASSIS, RADIATOR AND SHEET METAL, MAIN FRAME PLATFORM LIFT LINKS Chassis, Radiator & Sheet Metal

1

595687R91

LINK

center anchor rear (for use w/dual auger, not pea Windrower, platform, when equipped w/12.4/11-24 tires) (275 prior to machine serial No. 5500 and 375 prior to machine serial No. 3000)

1шт.

1

595687R91

LINK

center anchor rear. (For use w/dual auger platform when equipped w/18.4, 16A tires) (1969 season only)

1шт.

1

596142R91

LINK

center anchor rear (For use w/dual auger platform when equipped w/16.9-24 tires) (275 prior to machine serial No. 5500 and 375 prior to machine serial No. 3000)

1шт.

1

596142R91

LINK

center anchor rear (For use w/single auger and Pea Windrower platform w/12.4/11-24 tires) (275 prior to machine serial No. 5500 and 375 prior to machine serial No. 3000)

1шт.

1

596142R91

LINK

center anchor or rear. For use w/single auger platform (275 machine serial No. 5500 and since, or 375 machine serial No. 3000 and since)

1шт.

22852R1

NUT,Jam, 7/8"-9, G5, LH

7/8" jam (LH thread)

1шт.

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

3/4 x 3"

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

2

595284R21

BRACKET, steering rockshaft center RH (includes 2 - 595252R1 BUSHING) (for use on 275 Windrower)

1шт.

2

595038R21

BRACKET, main frame platform center anchor RH shown (for use on 375 Windrower)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

595283R21

BRACKET, steering rockshaft center LH (includes 2 - 595252R1 BUSHING) (for use on 275 Windrower)

1шт.

3

595037R21

BRACKET, main frame platform center anchor LH shown (for use on 375 Windrower)

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

595992R1

TURNBUCKLE

platform center anchor

1шт.

5

595686R91

LINK

center anchor front (for use w/dual auger and pea platform) (275 prior to machine serial No. 5500 and 375 prior to machine serial No. 3000)

1шт.

426898

NUT,Jam, 7/8"-9, G5

7/16" jam

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

3/4 x 3-1/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

5

596141R91

LINK

center anchor front (for use w/single auger platform) (275 prior to machine serial No. 5500 and 375 prior to machine serial No. 3000)

1шт.

426898

NUT,Jam, 7/8"-9, G5

3/8" jam

1шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

3/4 x 2-3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

5

829525C1

LINK

center anchor front (for use w/single auger platform) (275 machine serial No. 5500 and since, or 375 machine serial No. 3000 and since)

1шт.

426898

NUT,Jam, 7/8"-9, G5

7/8" jam

1шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

280954

NUT,3/4"-10, G5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.
