Запчасти Case IH 275 (A-22) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE HOOD AND SUPPORTS Chassis, Radiator & Sheet Metal

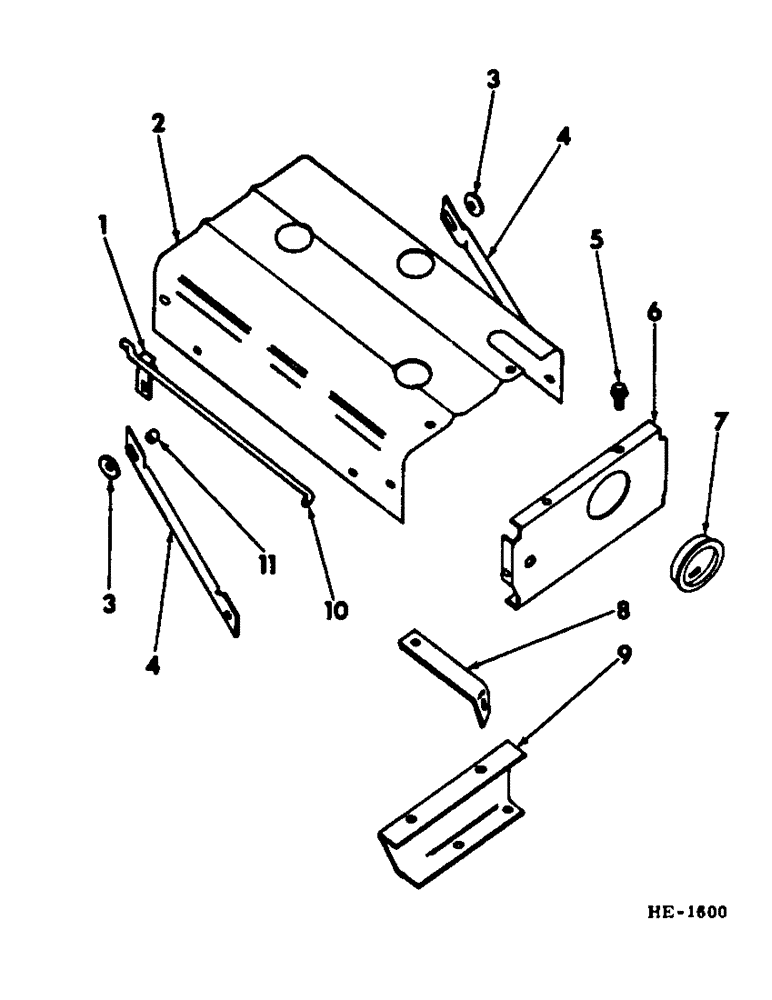

Схема запчастей Case IH 275 - (A-22) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE HOOD AND SUPPORTS Chassis, Radiator & Sheet Metal

Артикул

Название

Примечание

Количество

1

827170C1

CLAMP, hood rod support

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16 x 1/2" crg

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

827067C1

HOOD, engine (for use on 275 Windrower & 375 Windrower when equipped w/gasoline engine)

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

142619H

WASHER

.406 x .750 x.105

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

827068C1

HOOD, engine (for use on 275 Windrower & Windrower when equipped w/diesel engine)

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

142619H

WASHER

.406 x .706 x .105

2шт.

477589R1

WASHER

.406 x 1.500 x .105

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

151401C1

BELLEVILLE WASHER

WASHER, hood spg

2шт.

4

827085C1

SUPPORT, radiator

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

20803R1

WASHER

.406 x 1.000 x .105

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

827182C1

SCREW

3/8" hood to support whiz-lk

4шт.

6

827183C1

SUPPORT, engine hood RH

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8"

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

1шт.

20893R1

WASHER

.344 x 1.000 x .054

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

596481R1

COVER, air cleaner hand hole

1шт.

8

827043C1

BRACE, slide shield support (when machine equipped w/gasoline engine)

1шт.

8

827173C1

BRACE, side shield support (when machine equipped w/diesel engine)

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

3/8 x 3/4"

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

9

27169C1

SUPPORT, fuel filter & hood rod (for use on 275 Windrower & 375 Windrower when equipped w/diesel engine)

1шт.

10

827168C1

ROD, engine hood support

1шт.

20803R1

WASHER

.406 x 1.000 x .105

1шт.

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

C-PIN, quick-attachable

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

11

SA2344

SPACER,3/8" Pipe x 7/16"

radiator frame top channel

2шт.

Выбрано товаров: 42
