Запчасти Case IH 275 (A-20) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR SCREEN Chassis, Radiator & Sheet Metal

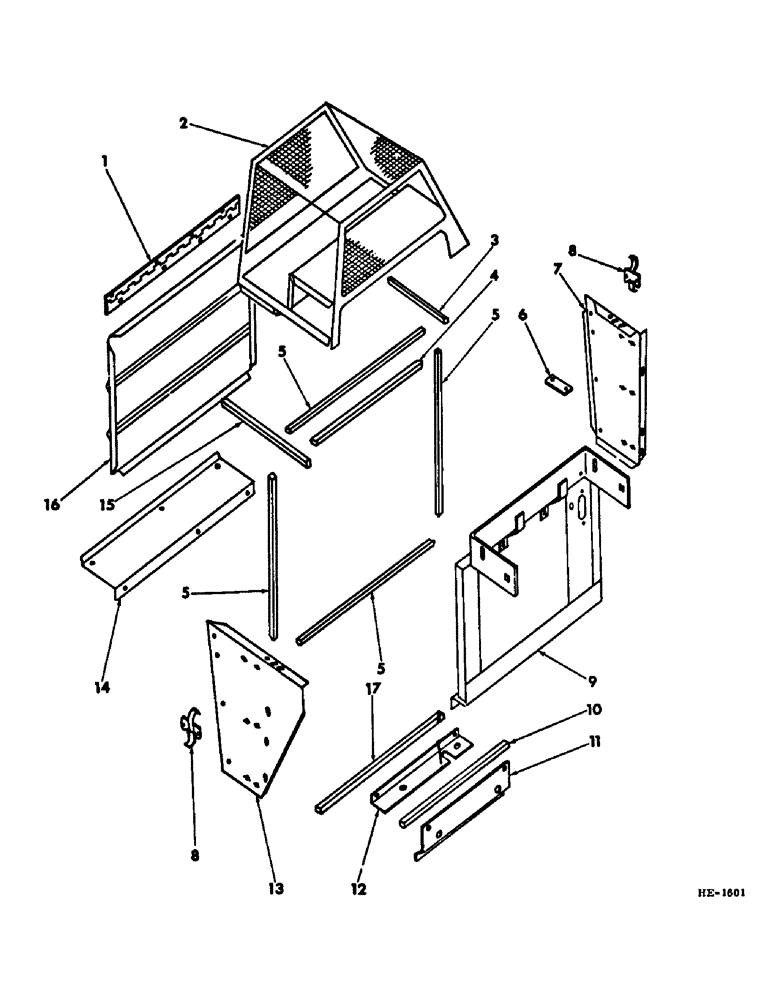

Схема запчастей Case IH 275 - (A-20) - CHASSIS, RADIATOR AND SHEET METAL, RADIATOR SCREEN Chassis, Radiator & Sheet Metal

Артикул

Название

Примечание

Количество

1

827142C1

HINGE, radiator screen

1шт.

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT, 1/4 x 1/2" crg

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

2

826989C1

SCREEN, radiator

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

3

SEAL, air chamber front (16.5" in length cut from bulk 50 ft roll) (823821C1 is part number for 1 foot of seal)

1шт.

4

SEAL, air chamber RH (25.7" in length, to be cut from bulk stock of 50 ft roll) (823821C1 is part number for 1 foot of seal)

1шт.

5

SEAL, radiator screnn frame (23.7" in length, to be cut from bulk stock fo 50 ft roll) (823821C1 is part number for 1 foot of seal) (for use on machines equipped w/gasoline engine)

4шт.

5

SEAL, radiator screen frame (24.4" in length, to be cut from bulk stock fo 50 ft roll) (823821C1 is part number for 1 foot of seal) (for use on machine equipped w/diesel engine)

2шт.

6

827121C1

BAR, clamp reinforcing

2шт.

271479

DOOR

BOLT, No. 12 x 3/4" mach

4шт.

21870R1

WASHER

.266 x .750 x .056

4шт.

225-14112

NUT,#12-24

No. 12

4шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

4шт.

7

826995C1

COVER, air chamber front

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

9шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

8

168481C1

LATCH ASSY.

CLAMP, radiator screen

2шт.

271479

DOOR

SCREW, No. 12 x 3/4" mach

4шт.

21870R1

WASHER

.266 x .750 x .056

4шт.

225-14112

NUT,#12-24

No. 12

4шт.

121744

ANGLE

Washer, Lock, #12

4шт.

9

827077C1

FRAME, radiator screen (for use on machines equipped w/gasoline engine)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

2шт.

20803R1

WASHER

.406 x1.000 x.105

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

827018C1

FRAME, radiator screen (for use on machines equipped w/diesel engine)

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8 x 5/8" (375 Windrower)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4" (275 Windrower)

2шт.

619856R1

WASHER

.406 x 1.000 x .056

2шт.

20803R1

WASHER

.406 x 1.000 x .105 (2 used 375, 4 used 275 Windrower)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

SEAL, filter (20.0" in length, to be cut from bulk stock of 50 ft roll) (823821C1 is part number for 1 foot of seal) (for use on machines equipped w/diesel engine)

1шт.

11

827044C91

FILLER, air chamber (includes 1, SEAL) (for use on 275 Windrower when equipped w/diesel engine)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

823768C1

FILLER, radiator screen frame (includes 1, SEAL) (for use on 375 Windrower when equipped w/diesel engine)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

823763C1

SUPPORT, lower filler (for use on machines equipped w/diesel engine)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

826991C1

COVER, air chamber rear

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

14

826992C1

COVER, air chamber bottom

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

6шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

15

SEAL, air chamber rear (23.0" in length, to be cut from bulk stock of 50 ft roll) (823821C1 is part number for 1 foot of seal)

1шт.

16

826996C1

COVER, air chamber LH

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

11шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

17

SEAL, air chamber front (15.6" in length, cut from bulk 50 ft roll) (823821C1 is part number for 1 foot of seal)

1шт.

Выбрано товаров: 61
