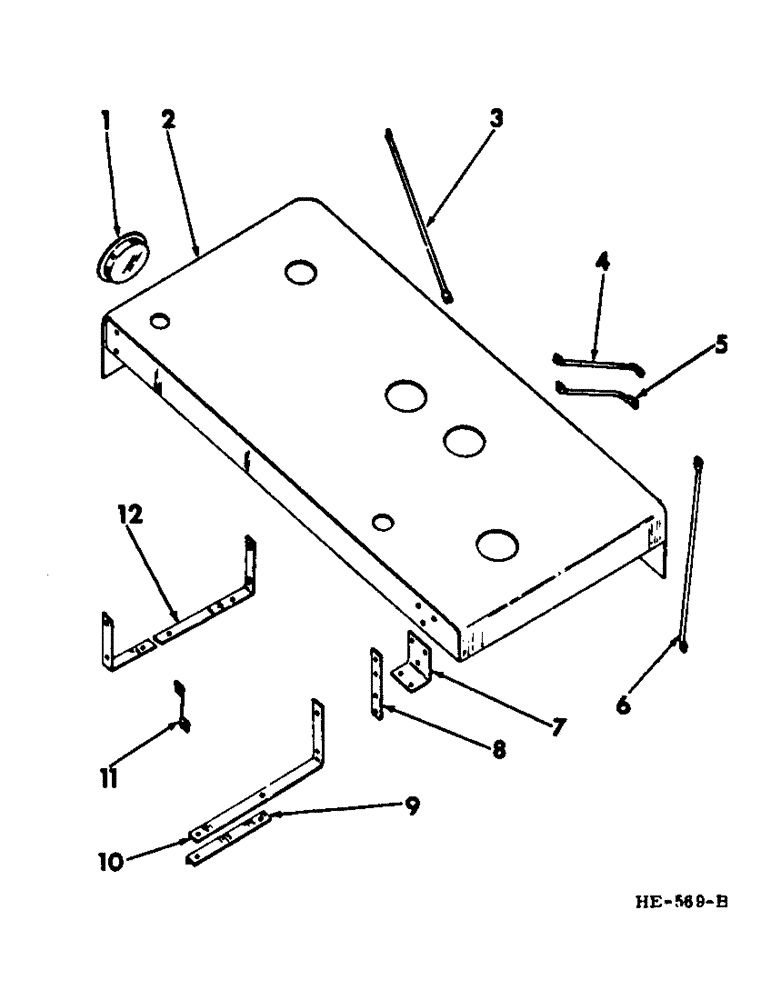

Запчасти Case IH 275 (A-18) - CHASSIS, RADIATOR AND SHEET METAL, ENGINE HOOD AND SUPPORTS Chassis, Radiator & Sheet Metal
№
Артикул
Название
Примечание
Количество
1
596481R1
COVER, air cleaner hand hole (for use on 275 Windrower when equipped w/diesel engine) (for use on 375 Windrower built w/machine serial No. 201 to machine serial No. 4000)
1шт.
2
595460R21
HOOD, engine (for use on 275 Windrower when equipped w/gasoline engine)
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
5/16 x 5/8"
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
10шт.
120376
NUT,5/16"-18, G5
8шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
12шт.
2
595461R21
HOOD, engine (for use on 375 Windrower when equipped w/gasoline engine, built prior to machine serial No. 201)
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
5/16 x 5/8"
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
8шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
10шт.
2
596475R3
HOOD, engine (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000) (for use on 275 Windrower & 375 Windrower when equipped w/diesel engine)
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
5/16 x 5/8"
2шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
5шт.
120376
NUT,5/16"-18, G5
7шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
7шт.
3
595470R1
BRACE, engine hood rear (for use on 275 Windrower)
1шт.
180126
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3/8 x 1-1/2"
1шт.
134238R1
WASHER
11/32 x 1 x 16 ga
1шт.
120376
NUT,5/16"-18, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
4
596484R1
SUPPORT, engine hood rear inner LH (for use on 275 Windrower & 375 Windrower when equipped w/diesel engine)
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
4
596485R1
SUPPORT, engine hood rear RH (for use on 275 Windrower & 375 when equipped w/diesel engine) (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000)
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
5
598117R1
BRACE, engine hood rear LH (for use on 375 Windrower when equipped w/gasoline engine, built w/machine serial No. 201 to machine serial No. 2000)
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
6
596024R1
BRACE, engine hood rear outer LH (for use on 275 Windrower when equipped w/gasoline engine)
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
6
596024R1
BRACE, engine hood rear outer LH (375 Windrower equipped w/gasoline engine)
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
1шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
6
596024R1
BRACE, engine hood rear outer LH (275 Windrower & 375 Windrower w/diesel engine)
1шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
7
596482R1
BRACKET, hood from LH (275 Windrower equipped w/diesel engine) (375 Windrower, built w/machine serial No. 201 to machine serial No. 2000)
1шт.
180075
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
5/16 x 5/8"
5шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
8
595466R11
STRAP, engine hood front support LH (for use on 275 Windrower when equipped w/gasoline engine) (for use on 375 Windrower when equipped w/gasoline or diesel engine)
1шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT, 5/16 x 3/4"
2шт.
120376
NUT,5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
9
595467R1
ANGLE, engine hood support LH (for use on 275 Windrower when equipped w/gasoline engine) (for use 375 Windrower built prior to machine serial No. 201)
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 x 7/8"
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
10
595468R2
BRACE, engine hood support LH (for use on 275 Windrower when equipped w/gasoline engine) (for use on 375 Windrower built prior to machine serial No. 201)
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
6шт.
120376
NUT,5/16"-18, G5
6шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
11
596485R1
SUPPORT, engine hood rear RH
1шт.
For use on 275 Windrower when equipped w/diesel engine, built w/machine serial No. 1501 to machine serial No. 4000), for use on 375 Windrower when equipped w/gasoline or diesel engine, built w/machine serial No. 201 to machine serial No. 2000)
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8 x 1"
2шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
12
595469R21
BRACE, engine hood support RH
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
6шт.
134238R1
WASHER
11/32 x 1 x 16 ga
3шт.
120376
NUT,5/16"-18, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
Выбрано товаров: 72
